Operation Manual / TPL76-C
8 Disassembly and assembly / 8.5 Removing cartridge group
© Copyright 2018 . All rights reserved. HZTL2485_EN Revision F April 2018

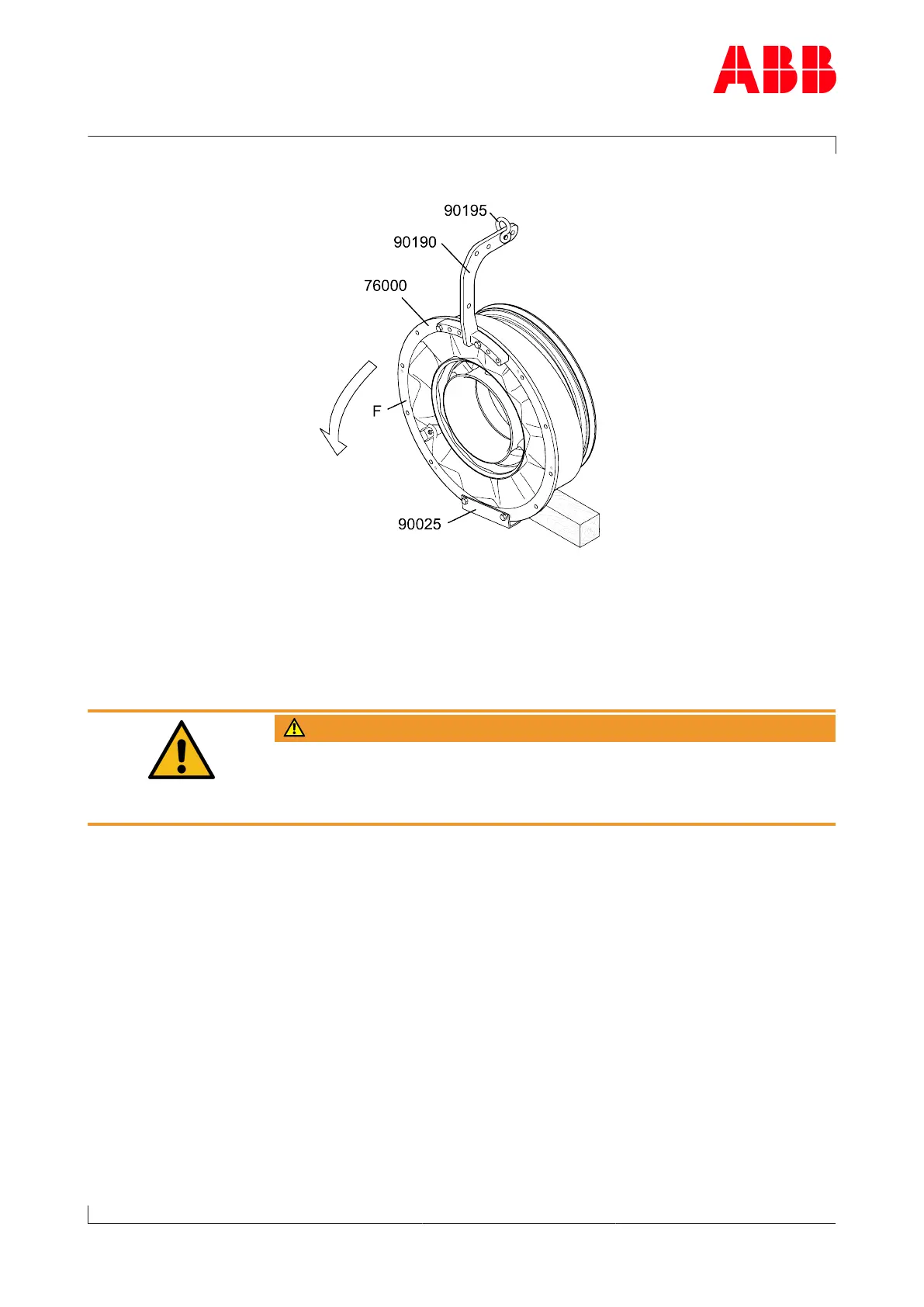

Transporting / turning internal part of compressor casing
u Carefully turn internal part of compressor casing complete with wall
insert and diffuser about support angle (90025) and put onto under-
lay.
u Set down casing on flange (F).
u Set down internal part of compressor casing in such a way that lifting
device (90190/90195) can be removed.
WARNING
Ensure that the shim does not slip.
u Rest the internal part of the compressor casing only on flange (F).
u Check shim and adjust as necessary.
Page 89 / 133
