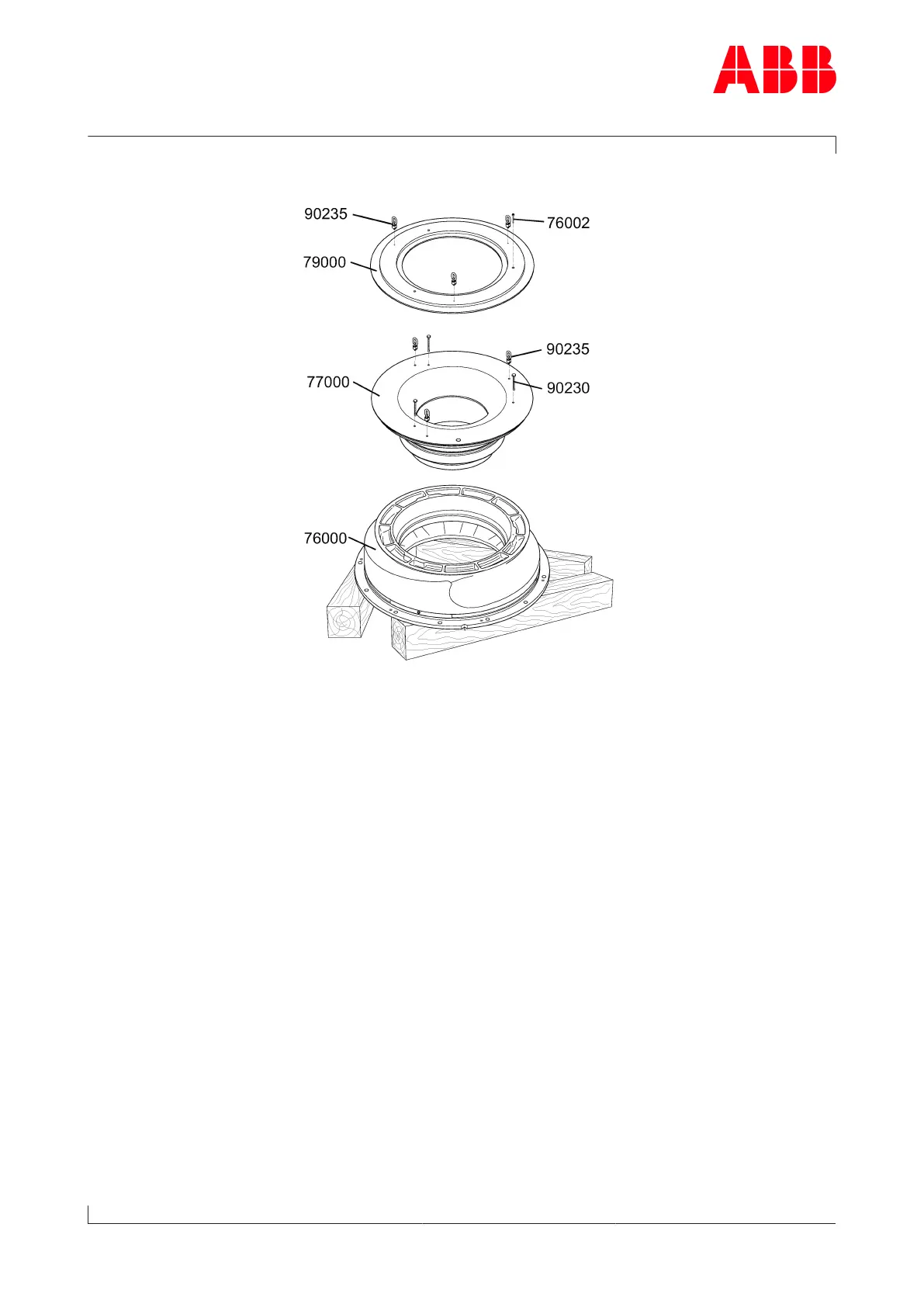

Removing diffuser and wall insert
u Remove screws (76002).
u Remove diffuser (79000) using swivel lifting eyes (90235).
u Press away wall insert (77000) using press-off screws (90230) and re-
move from internal part of compressor casing (76000) using swivel
lifting eyes (90235).
