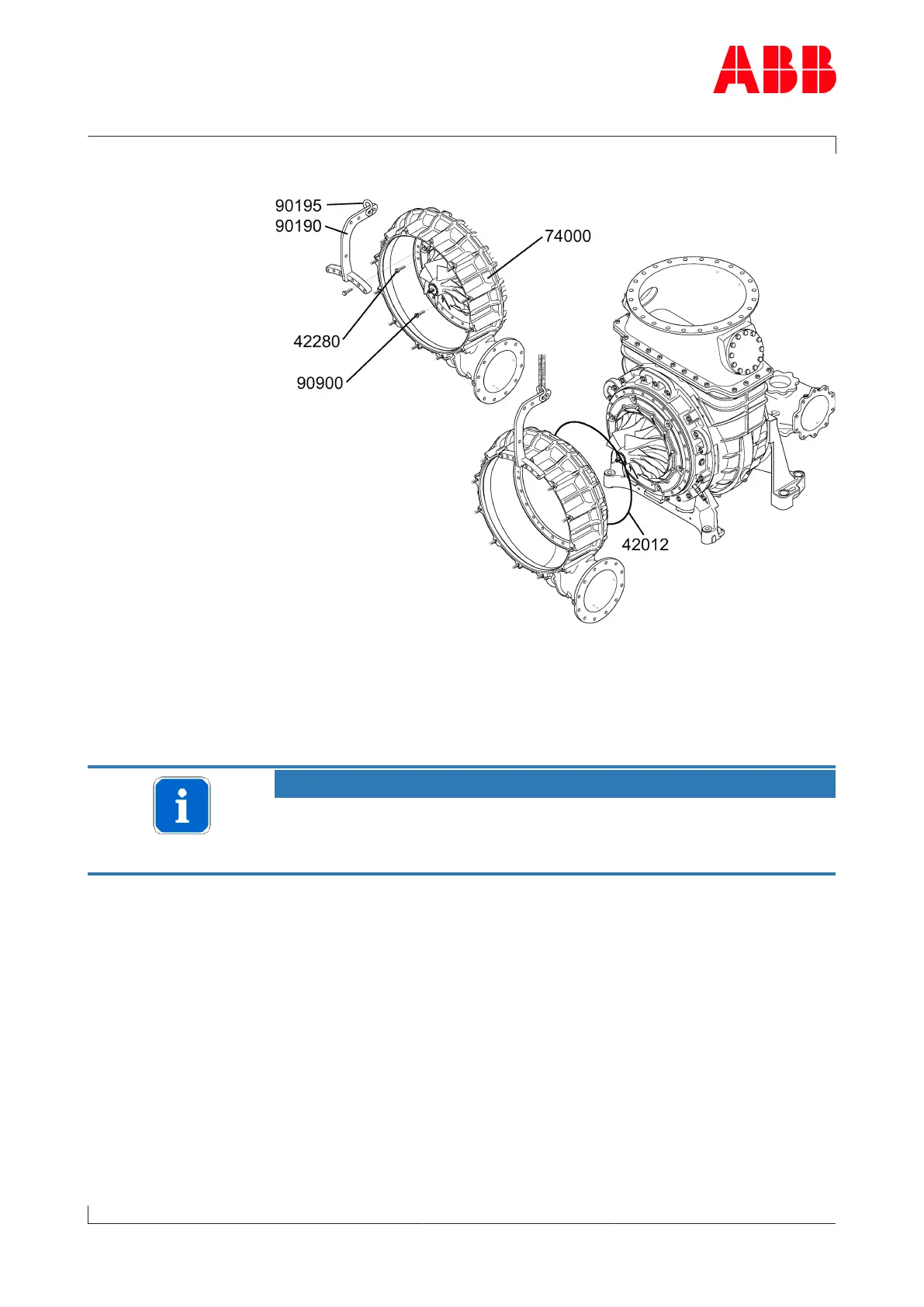

Removing external part of compressor casing
u Fasten lifting device (90190/90195) to external part of compressor
casing (74000) using screws and secure to crane.
u Remove screws (42280).
u Uniformly press away external part of compressor casing (74000) us-
ing press-off screws (90900) and remove.
NOTICE
Insulation on external part of compressor casing
The insulation on the external part of the compressor casing does not
need to be taken off when removing or fitting the casing.
u Remove O-ring (42012).
