ABB XFCG4 6414 User Manual

29 XFC G4 2103335 Rev AB
— Short circuit leakage current: -395 uA typical.
— Input capacitance: 0.1 ufd typical.
— Maximum allowable voltage range on input: -0.5Vdc to 15Vdc.
— Maximum frequency input: 100 KHz @ 50% duty cycle with de-bounce enabled.
— Maximum frequency input: 20 KHz @ 50% duty cycle with de-bounce disabled.
3.6.2.2 Input Specification
— Dry Contact (form A): Open Collector or Active Voltage.
— Minimum contact resistance to activate input: 1000 Ω.
— Voltage threshold to deactivate the input: 3.1 V (referenced to GND terminal.).
— Voltage threshold to activate the input: 0.5 V (referenced to GND terminal.).
— Conductor pairs must be shielded to prevent spurious signals.

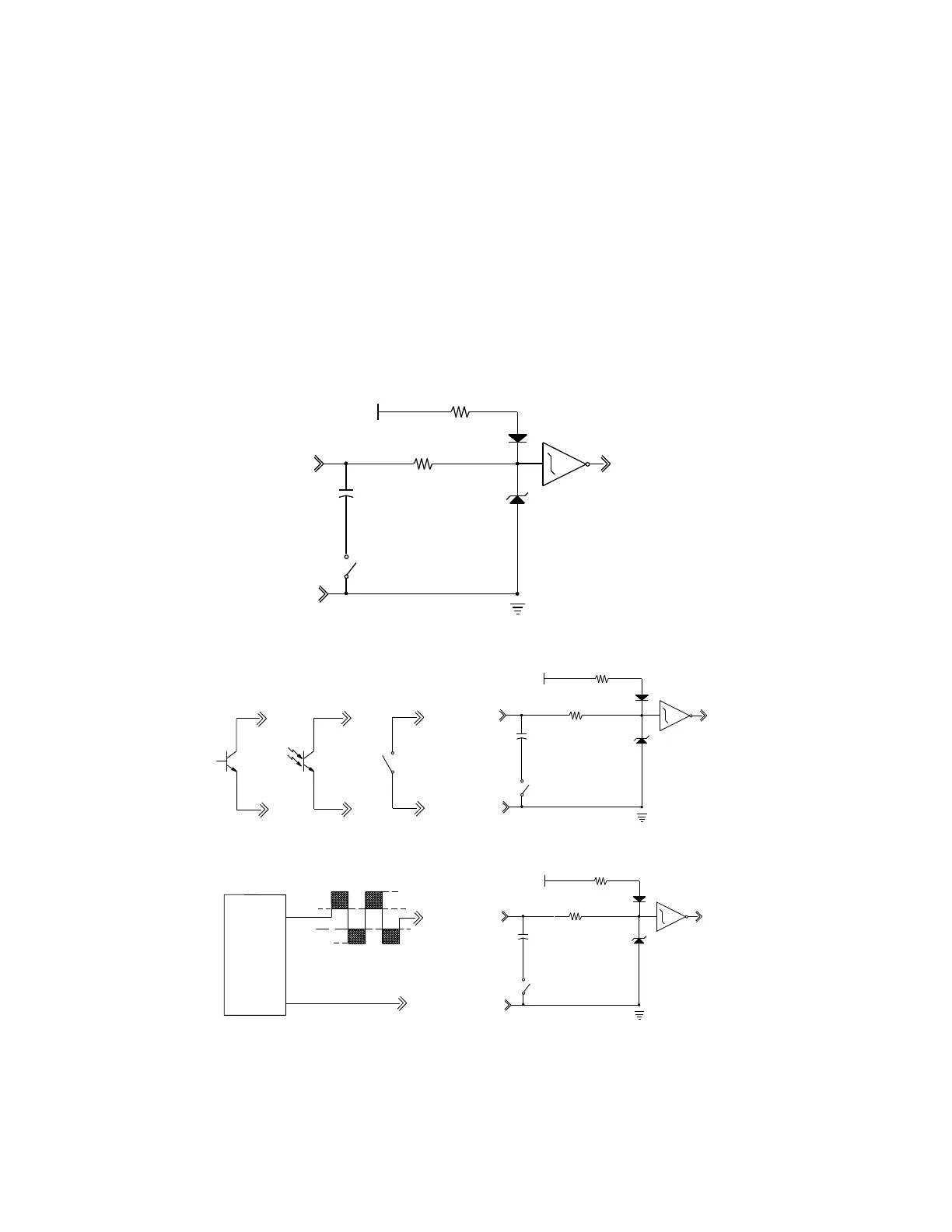

3.6.2.3 Typical Point Schematic
Figure 8 Typical Point Schematic
Figure 9 Example Connections
3.6.3 Digital Output
The Totalflow XFC
G4
provides two digital (12 Vdc) outputs as a means to control external equipment.
GND
SIG
DEBOUNCE SELECT
1K
+5
.1UF
10K
INPUT SENSE
DEBOUNCE SELECT
GND
SIG
.1UF
+5
1K
INPUT SENSE
10K
POINT CONNECTIONS
SIG
GND
OR
SWITCH
GND
OPTO
COUPLER
SIG
GND
NPN
SIG
OR
GND
SIG
DEBOUNCE SELECT
1K
+5
.1UF
10K
INPUT SENSE
GND
TYPICAL VOLTAGE INPUT FIELD
SIG
FIELD DEVICE
COMMON (GND)
SIGNAL
OUTPUT
15 VDC MAX.
-0.5 VDC MIN.
3.1 VDC
0.5 VDC

ABB XFCG4 6414 Specifications

General

Product ID	XFCG4 6414
ABB Type Designation	XFCG4 6414
Category	Measuring Instruments
Model	XFCG4
Manufacturer	ABB
Certifications	ATEX, IECEx
Type	Flowmeter
Accuracy	±0.1%
Output Signal	4-20 mA
Communication Protocol	HART, Modbus
Pressure Rating	Up to 100 bar (1450 psi)
