93 XFC G4 2103335 Rev AB
Select the Entry button from the toolbar.
Select the Station ID from the tree.
Enter a four digit number for level 1 and level 2 security codes, in the Station Setup tab. (see Figure 71).
Click Send.

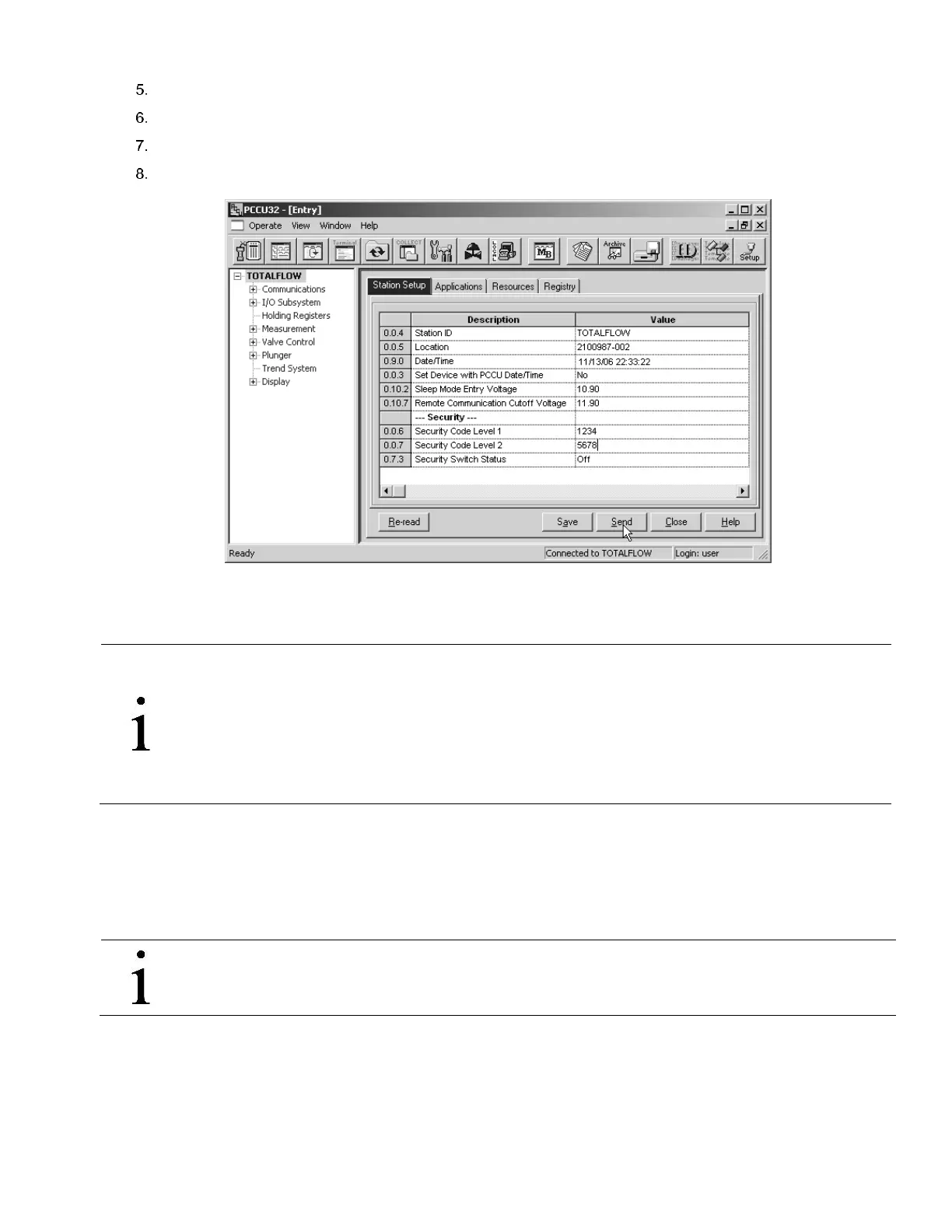

Figure 71 Meter Setup and Security Screen
The security code is now configured.
IMPORTANT NOTE: Turning the security switch (S1) ON will activate the security codes. The level 1 code
(example above-‘1234’) will allow data and configuration values to be read, but not altered. The level 2 code
(example above- ‘5678’) will allow full access to read and to write.
These security codes must be entered into PCCU32 and WinCCU32 to provide appropriate access to the meters.
However, WinCCU32 will always need the proper security code, regardless of the position of the security switch
(S1). Turning the security switch OFF does not allow unprotected access by a WinCCU32 operator. Modbus
access to the meters is not protected by the security codes.
5.5.5.2 PCCU32 Security
PCCU32 will require the appropriate security code be entered. To enter the security code go to System Setup in PCCU32. In the
example (see Figure 72) the operator was provided with read only access to the meter.
Security code level 1 (below example) of ‘1234’ will provide read only access to the meter. Had a security code of ‘5678’ been
entered the operator would have had full read/write access to the meter.
IMPORTANT NOTE: If the security level is breached, the meter will give no indication. Any data the operator
attempted to change will simply remain unchanged.
