ABEM Terraloc Pro 2
38
Action
- Arm: Arms the instrument
- Geophone test: Starts a geophone test (4.6.7)
- Force trig: Forces a trigger
- Disarm: Disarms the instrument
- Quick backup: Copies the working directory to USB
memory stick
Process
- Auto pick: Performs an automatic first break pick
(5.1)
- Clear picks: Clears all first break picks (5.1)
- FIR filter: Displays the FIR Filter dialog (5.3)
- Moving average filter: Displays the Moving average
dialog (5.5)
- Unfilter data: Reloads the original unfiltered data
- Cross Correlate: Displays the Cross Correlate
dialog (5.4)
Help
- Help: Displays the help file
- Keyboard help: Displays a specific part of the help
file
- System info: Displays the System Information
dialog (4.6.2)

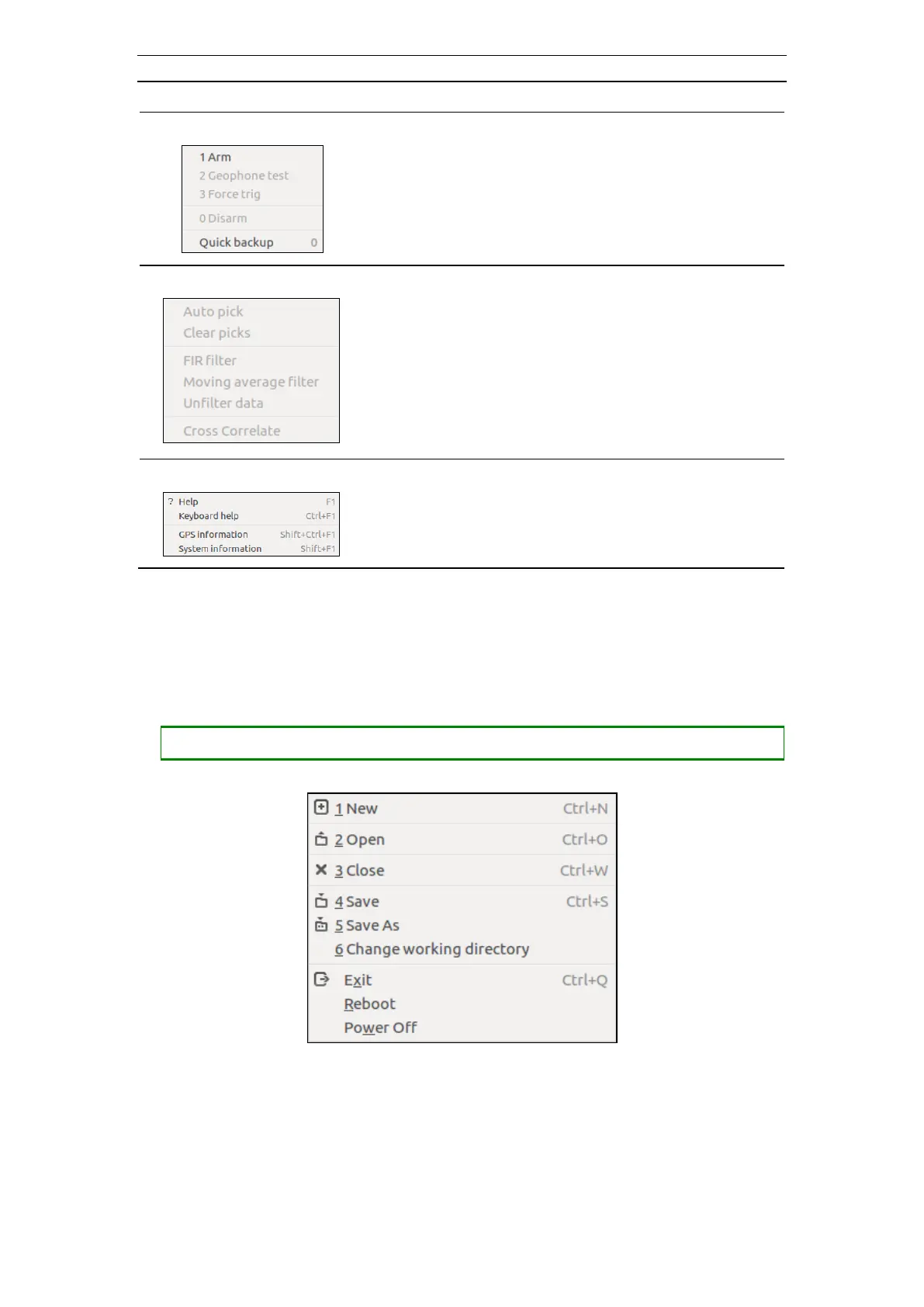

Table 6 Main Menu items
4.5.2 The Quick Menu
Duplicates most of the menu items from the File submenu of the Main Menu (Figure
34). See chapter 4.5.1 for specifics on each menu sub item.
• Opening the Quick Menu
― Press <CTRL> + <SPACE> to open the Quick Menu
Figure 34 The Quick Menu
