ABEM Terrameter LS
1
1 Get ready - Unpacking your new instrument
1.1 A Short Introduction of the Instrument
ABEM Terrameter LS is a state-of-the-art data acquisition system for self potential
(SP), resistivity (RES) and time-domain induced polarization (IP). The instrument is
delivered with everything that is needed for multi-electrode geoelectrical imaging
except electrode cables and electrodes.
The built-in GPS automatically logs the instrument position during data acquisition;
provided there is adequate GPS signal reception.
Terrameter LS is fully compatible with existing parts of the ABEM Lund Imaging
System like electrode cables, cable joints, cable jumpers, electrodes and electrode
selectors for expansion. Figure 1 shows a complete system except for the full number
of electrodes and cable jumpers.

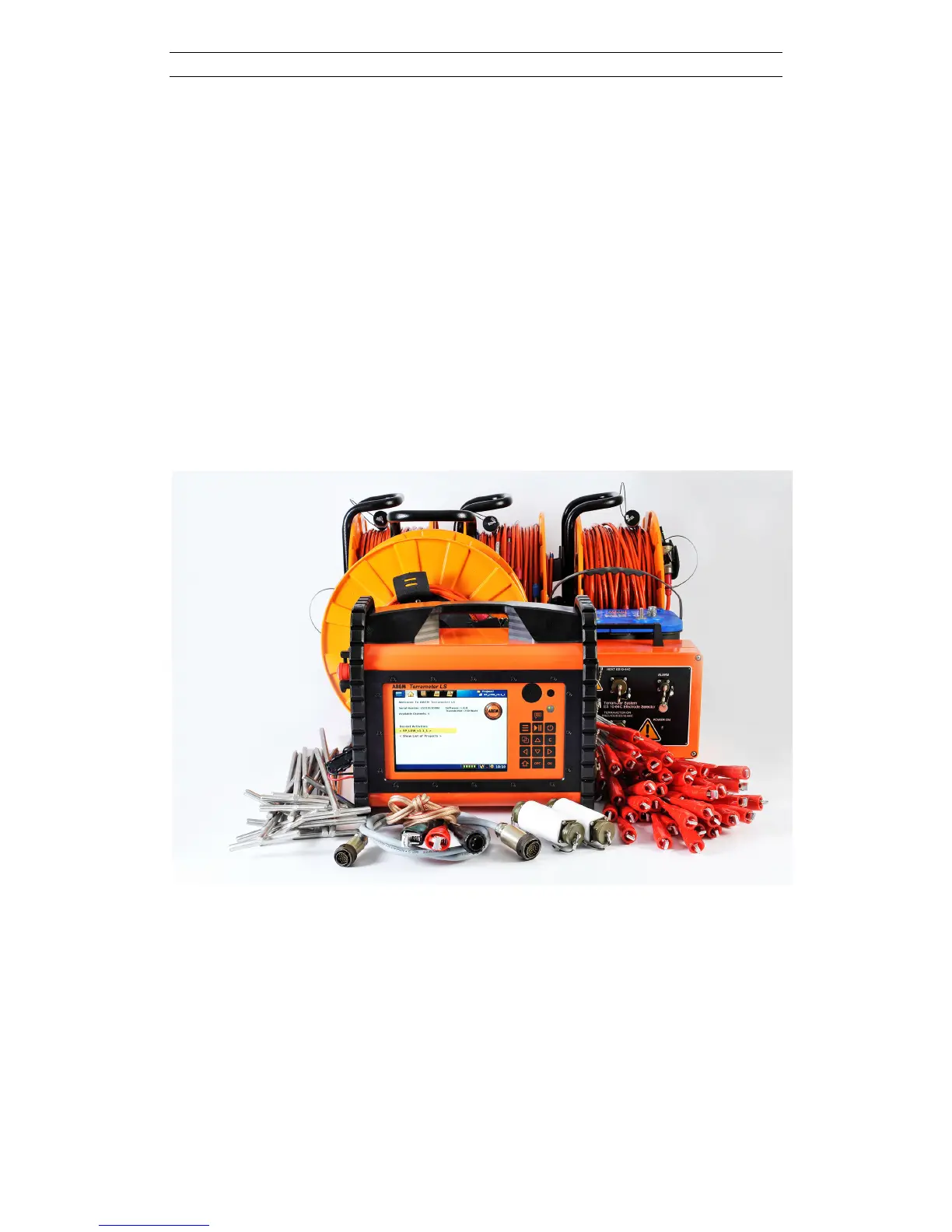

Figure 1. Geoelectrical imaging system with Terrameter LS
