6 Putting into operation MT/AUT/AUT RAB
6.2 Mounting the wire guide
1 Gas nozzle
2 Gas nozzle adapter
3 Contact tip
4 Gas distributor
5 Tip adaptor
6 Torch neck
7 Multiple spanner
8 Collet

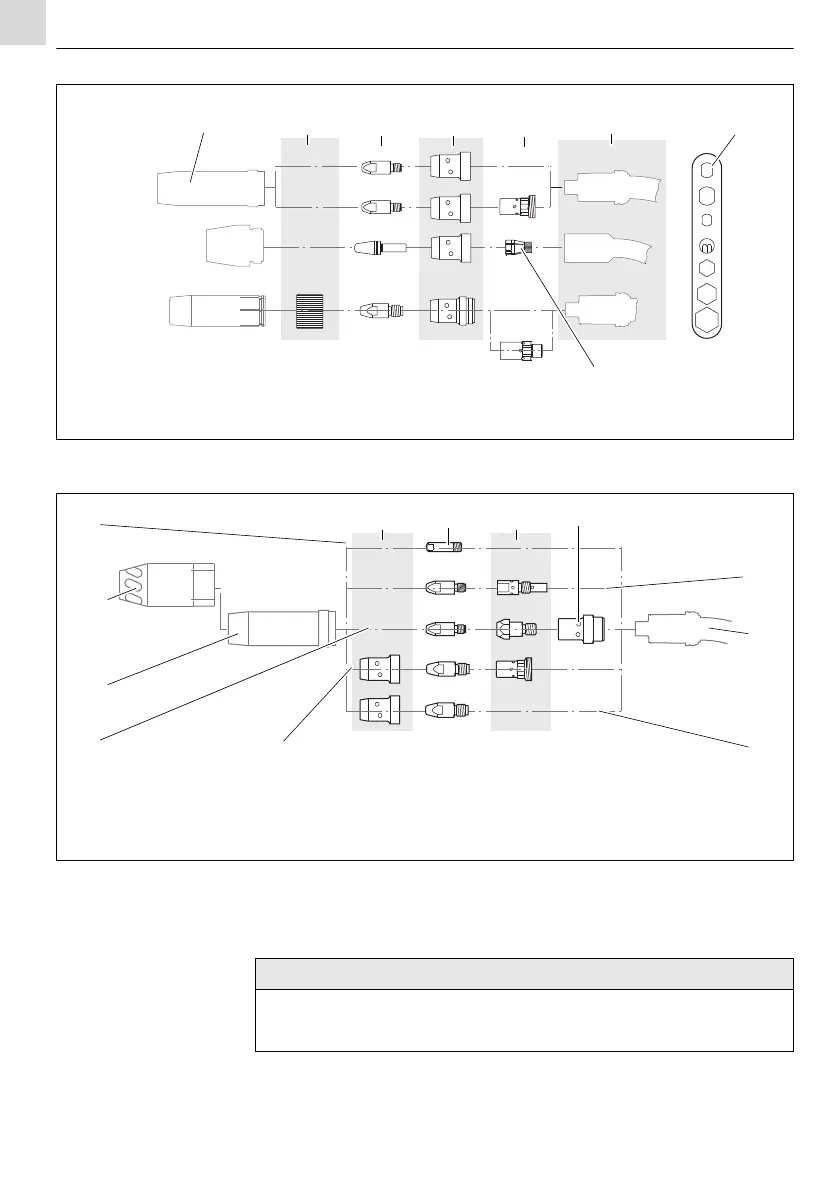

Fig. 1 Equipping the torch MT
645 W
605
452
605 D
555 W
123456 7
8
1 Type 15
2 Gas diffuser
3 Contact tip
4 Tip adaptor
5 Gas diffuser
6 Type 25
7 Torch neck T
8 Type 401/501
9 Type 401D/501D
10 Type 24/26/36/602/240D
11 Gas nozzle
12 Suction nozzle
Fig. 2 Equipping the torch AUT/AUT RAB
1
11
2
8
34
7
6
5
10
9
12
AUT RAB
AUT
• New still unused guide spiral liners or PA liners have to be shortened to
the actual length of the hose assembly.
