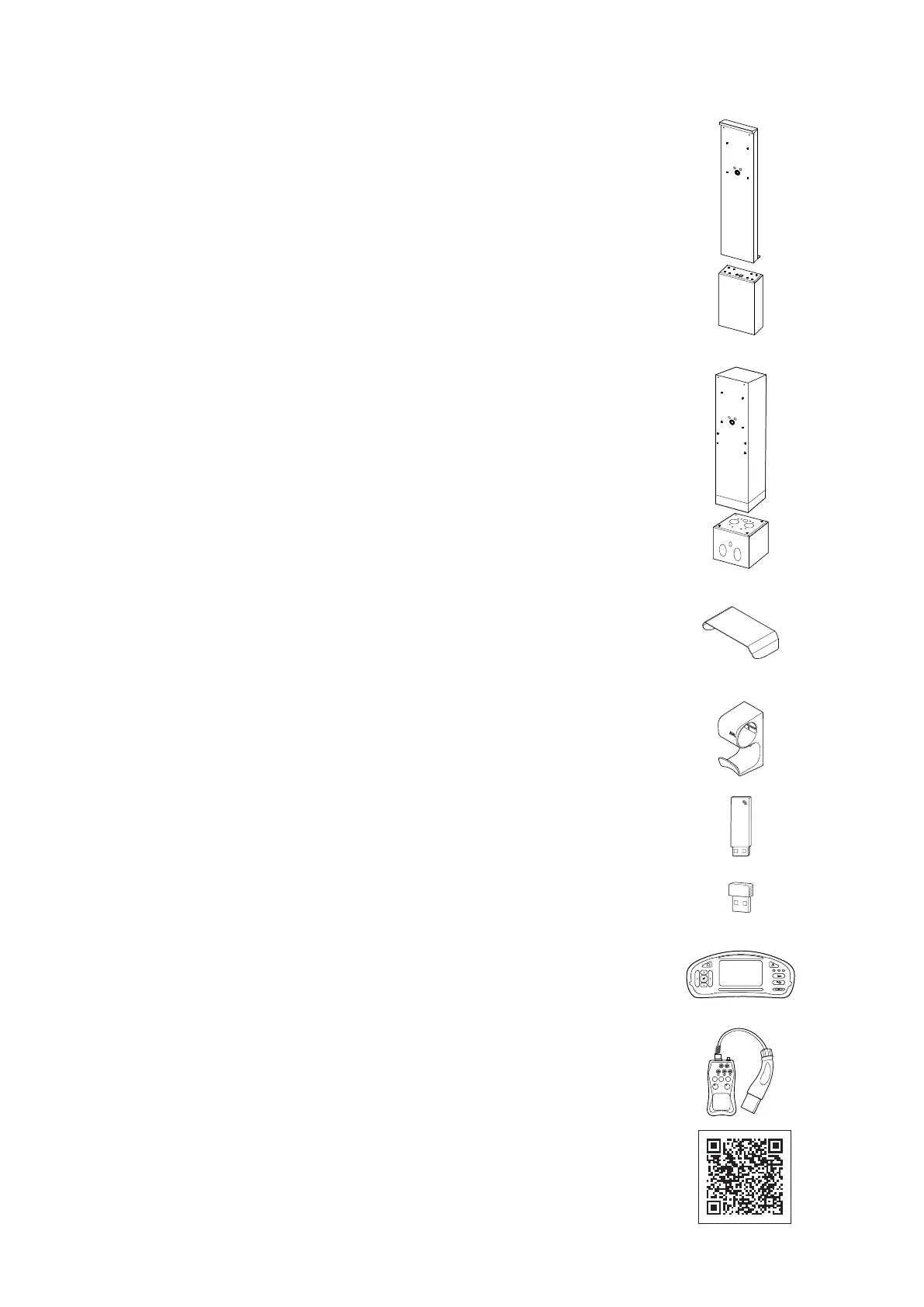

| Introduction to the Wallbox eMH3 – Accessories
12
POLEMH3
Galvanised sheetmetal mounting pole for the outdoor installation of one Wall-
box eMH3, the weather shield WPR36, and up to two cable holders CABHOLD
h = 1,647mm, w = 405mm, d = 180mm
EMH9999
Precast concrete foundation for installing the mounting pole POLEMH3
h = 650mm, w = 430mm, d = 190mm
POLEMH6
Galvanised sheetmetal mounting pole for the outdoor installation of two Wall-
boxes eMH3, two weather shields WPR36, and up to four cable holders CAB-
HOLD
h = 1,623mm, w = 410mm, d = 360mm
EMH9996
Precast concrete foundation for installing the mounting pole POLEMH6
h = 420 mm, w = 420 mm, d = 420 mm
WPR36
Weather shield for installation on an exterior wall or the mounting pole
POLEMH3
h = 142mm, w = 515mm, d = 285mm
CABHOLD
Cable holder with charging plug receptacle for installation on an exterior wall or
the mounting poles POLEMH1/2/3
h = 187mm, w = 76mm, d = 105mm
E3BLTE1
LTE accessory package with LTE USB stick and adhesive LTE antenna for installa-
tion in Controller wallboxes
LTE
E3BWLAN
USB WiFi dongle for installation in Controller wallboxes
TE001
Multipurpose measuring device for security checks according to IEC/EN61557,
as well as for testing charging stations via the adapter TE002, suitable for TN,
TT, and IT protective earthing systems
TE002
EVSE and vehicle simulation adapter according to IEC 61851 for checking the
function and electrical safety of charging stations
N PE
L1 L2 L3
You can find further information on ABL charging stations and accessories at www.
ablmobility.de.
