ABL Wallbox eMH3 Installation Manual

Introduction to the Wallbox eMH3 – Accessories |
11

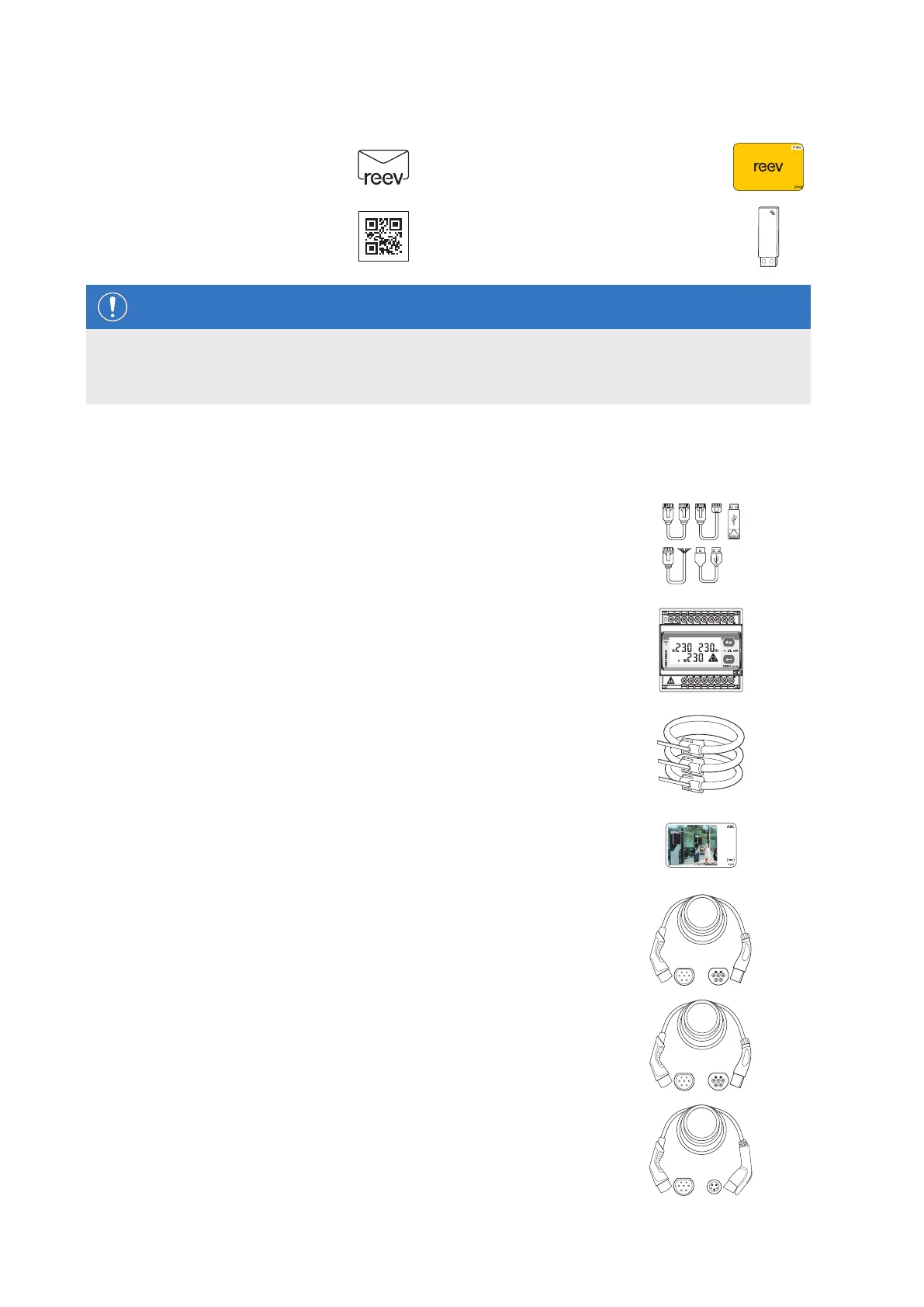

Bundled variants of the eMH3 also include:
 reev onboarding letter, 1pc
(Controller/Controller+ only)
 reev RFID card, 2pcs
 QR code stickers, 1 or 2 pcs
(depending on number of charge
points)
 Controllers only: LTE USB stick with
SIM card (preconfigured), 1pc
LTE
NOTE
Checking the components included
Check immediately after unpacking whether all components are included: should any components be missing,
please contact the dealer from whom you purchased the wallbox.
Accessories
The following accessories for the Wallbox eMH3 are available separately:
 CONFCAB
Configuration kit for connecting all ABL charging stations to a Windows PC for
configuration via specific software applications by ABL
 LASTMZ1
External energy meter for connection to a Controller charging station or exter-
nal control unit
 LASTMZ2
Coil sensors for connection to the energy meter LASTMZ1
 E017869
For all eMH3 model variants, except bundle products: Set of ID tag cards (5pcs)
to extend user pool
 LAK32A3
Type 2 charging cable according to IEC 62196-2, up to 32A 240/415VAC,
3-phase, length ca.4m
 LAKC222
Type 2 charging cable according to IEC 62196-2, up to 20A 240/415VAC,
3-phase, length ca.7m
 LAKK2K1
Type 2 to Type 1 adapter cable according to IEC 62196-2, up to 32A 230VAC,
single phase, length ca. 4m

ABL Wallbox eMH3 Specifications

General

Model	eMH3
Manufacturer	ABL
Category	Automobile Battery Charger
Charging Power	22 kW
Number of Charging Points	1
Connector Type	Type 2
Installation	Wall-mounted
Communication	OCPP 1.6
IP Rating	IP54
Charging Current	32 A
Operating Temperature	-30°C to +50°C
Charging Power Options	Adjustable
Input Voltage	400 V
Output Voltage	400 V
