| Installation – Electrical connection of the wallbox
18

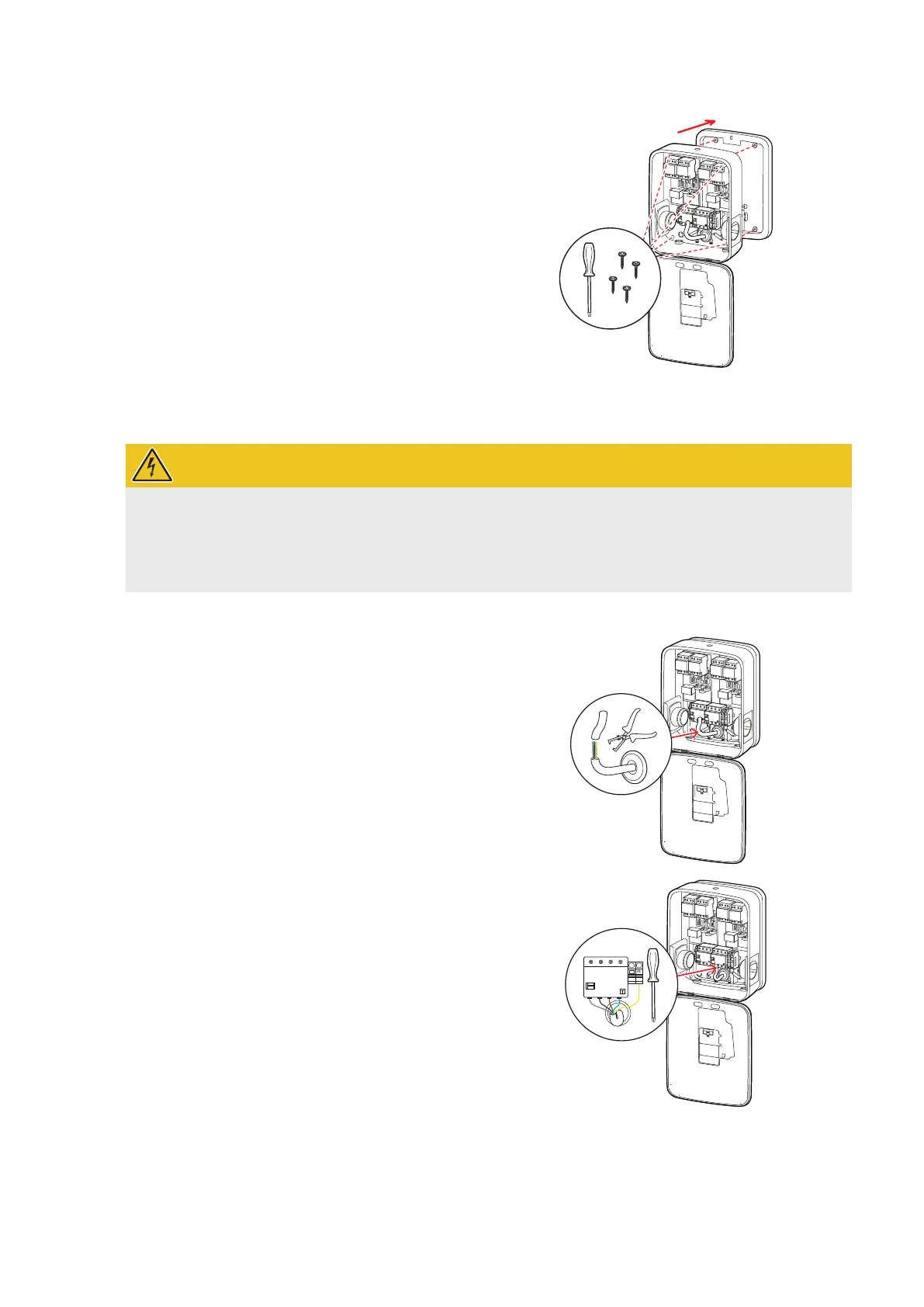

12 Fix the wallbox to the mounting plate using the four
TX25 wafer head screws included.
y Use a screwdriver or the electric drill with a
suitable bit.
METER
M
E
T
E
R
C
N
T
R
L
CONTROL
CONTROL
METER
Electrical connection of the wallbox
DANGER!
Dangerous electrical currents
Electrical connection must be carried out by a qualified specialist electrical contractor!
Ensure that the power supply cable remains disconnected from the electricity grid.
Deactivate the RCCB in the wallbox and/or in the domestic power supply.
Proceed as follows to connect the power supply cable inside the wallbox:
1 Cut the supply cable to the required length with
the pliers/wire stripper.
y For wiring up group installations (see next
section), you must also cut the data cables to
the required length.
METER
M
E
T
E
R
C
N
T
R
L
CONTROL
CONTROL
METER
2 Insert the individual conductors of the power sup-
ply cable into the respective terminals of the RCCB
and tighten them using the screwdriver (torque: 2.5
to 3 Nm).
y End ferrules must be fitted on flexible
conductors.
y Operate the spring-loaded mechanism of the
PE terminal and attach the protective earth
conductor.
y Use the connection patterns listed below to
allocate the individual conductors.
METER
M
E
T
E
R
C
N
T
R
L
CONTROL
CONTROL
METER
