Configuring the Wallbox eMH3 – Set-up via Charge Point Administration application |
33

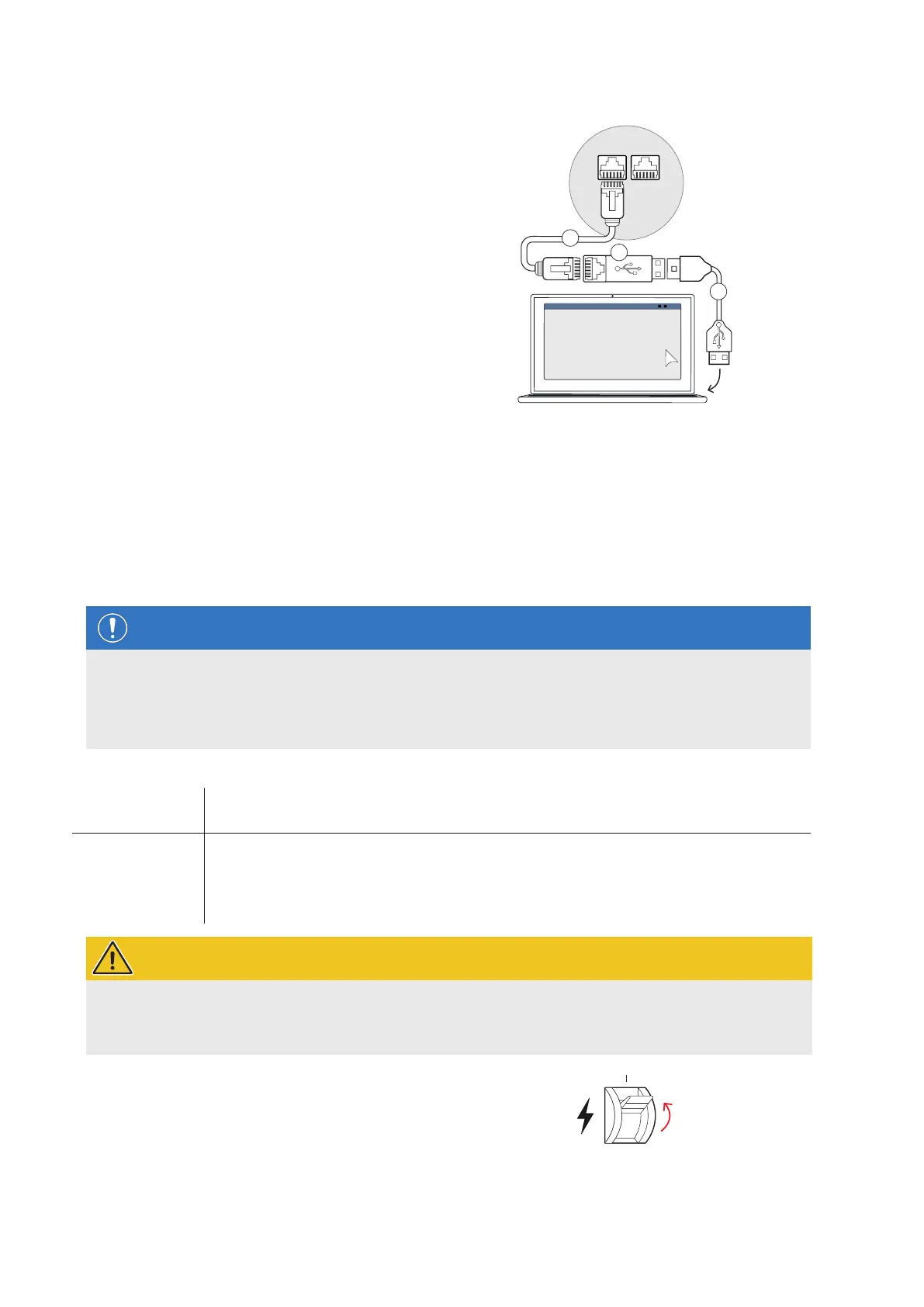

Controller Wallbox eMH3 with E2I interface
(from mid-2021)
1 Open the housing cover of the Controller wallbox as
described in section "Preparing and fixing the wallbox
in place" on page17.
2 Connect the patch cable5 to one of the RJ45 ports
of the E2I interface on the inside of the housing cover.
3 Connect the USB extension cable1 to one of the
computer's USB ports.
4 Use the USB to RJ45 adapter2 to connect the patch
cable5 to the USB extension cable1.
The wallbox is now connected to the computer by cable.
ABL – Configuration Software
1
2
5
You can now start setting up the wallboxes using the ABL Configuration Software . For this purpose, download the
current version of the software, and follow the instructions in the manual, which is embedded in the software and
also contained in the installation folder:
https://www.ablmobility.de/en/downloads/software/CONFCAB
Set-up via Charge Point Administration application
After all Extender wallboxes have been configured, the entire Controller-Extender system can be set up for operation
using the Charge Point Administration online application.
NOTE
Updating the application
The working steps described below refer to version 1.7 of the Charge Point Administration application.
Please check in advance which version is installed on your system and ensure that you update to version 1.7.
The instructions included in the installation package describe step by step how to perform the update.
The application offers a role-based concept that restricts the editing of selected parameters.
Owner
The Owner may view all information about the application and the installed charging stations,
perform updates and set up data communication in the system.
Installer
The Installer makes fundamental changes to the system properties.
This person must therefore be a qualified electrician, who, on the basis of their specialist
training and experience, as well as their knowledge of the relevant regulations, can assess
and carry out the working steps described in this manual and recognise potential hazards.
WARNING!
Registration as a qualified electrician required
The working steps described below for setting up the system must be carried out in the Installer role.
Contact a qualified specialist electrical contractor if the following working steps need to be carried out.
1 Switch the Controller wallbox on.
y Always wait for two minutes until the SBC has
completed set-up.
