ABL Wallbox eMH3 Installation Manual

| Appendix – Definitions
62

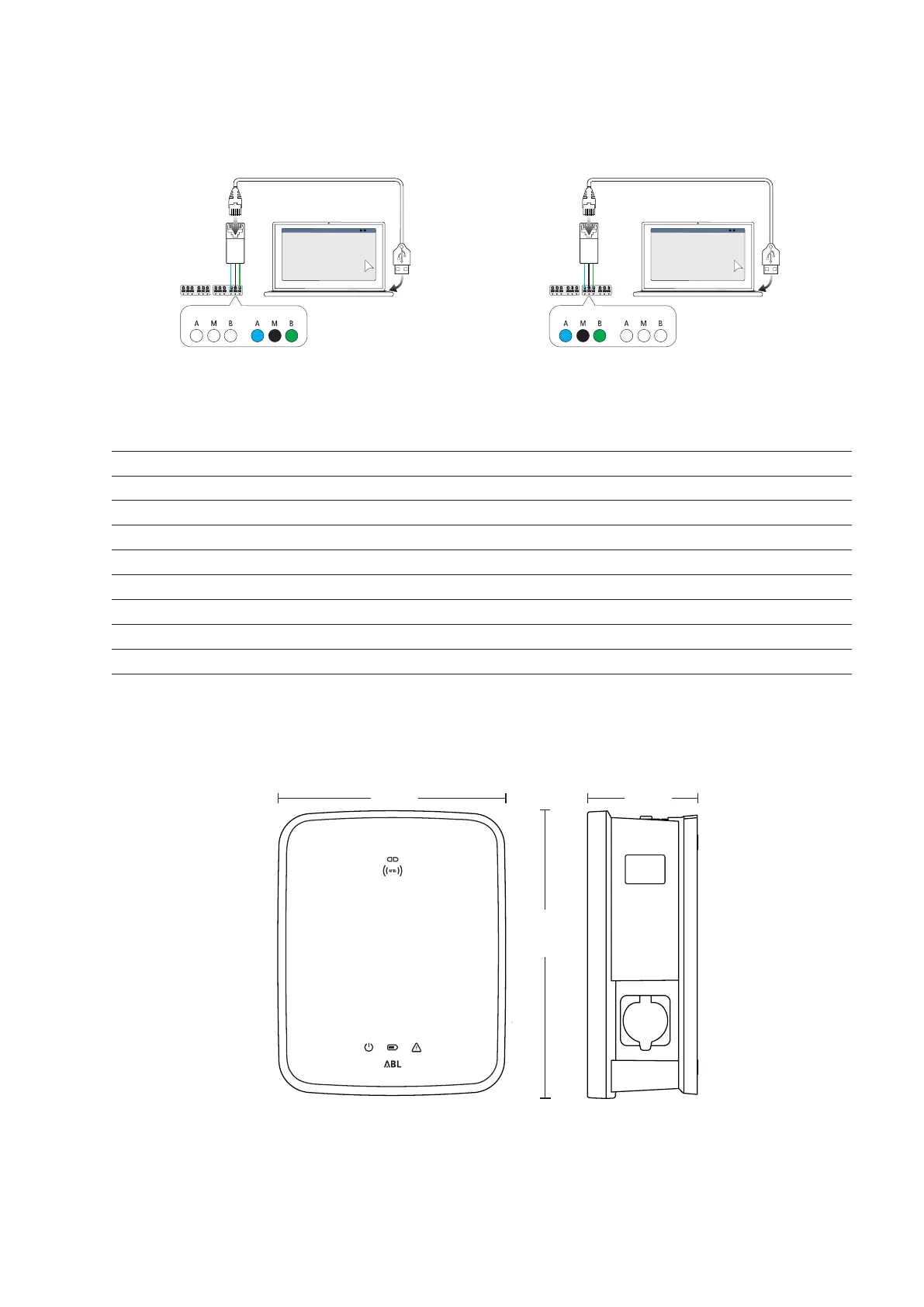

The following is a schematic illustration of data cabling using the LOMK218:
Connection to CONTROL bus Connection to METER bus
ABL – Configuration Software 1.6
METER
CONTROL
A M B
METER
A M B
CONTROL
A M B
METER
A M B
CONTROL
ABL – Configuration Software 1.6
METER
CONTROL
A M B
METER
A M B
CONTROL
A M B
METER
A M B
CONTROL
Configuration: Charge controller and RFID module Configuration: Energy meter and LGW
Definitions
Abbreviation Explanation
DC Direct Current
E2I Easy2Install interface for data cable connections between data buses via RJ45 ports
eMH Electric Mobility Home
EVCC Electric Vehicle Charge Control
LED Light Emitting Diode
RCCB Residual Current operated Circuit Breaker
RCM Residual Current Monitor
RFID Radio Frequency Identification
SBC Single Board Computer
'T' button Testing button
Dimensions
Single variants
394 mm*
189mm
492mm
*Housing base incl. mounting plate, without overhangs

ABL Wallbox eMH3 Specifications

General

Model	eMH3
Manufacturer	ABL
Category	Automobile Battery Charger
Charging Power	22 kW
Number of Charging Points	1
Connector Type	Type 2
Installation	Wall-mounted
Communication	OCPP 1.6
IP Rating	IP54
Charging Current	32 A
Operating Temperature	-30°C to +50°C
Charging Power Options	Adjustable
Input Voltage	400 V
Output Voltage	400 V
