Introduction to the Wallbox eMH3 – Identifying your wallbox |
9
Introduction to the Wallbox eMH3
Congratulations on the purchase of your new Wallbox eMH3 by ABL. Our Wallbox eMH3 is the ideal solution for
group installations in company or hotel carparks. Available with one (Single) or two (Twin) charge points, and as
stand-alone or Controller-Extender variants. You can also choose between versions with charging cable or charging
socket.
The Controller and Extender variants of the Wallbox eMH3 are also available as a bundle with backend solutions by
reev, which offer an intuitive interface for the administration and invoicing of all charging operations.
Further information on technical data is available in the appendix from page55.

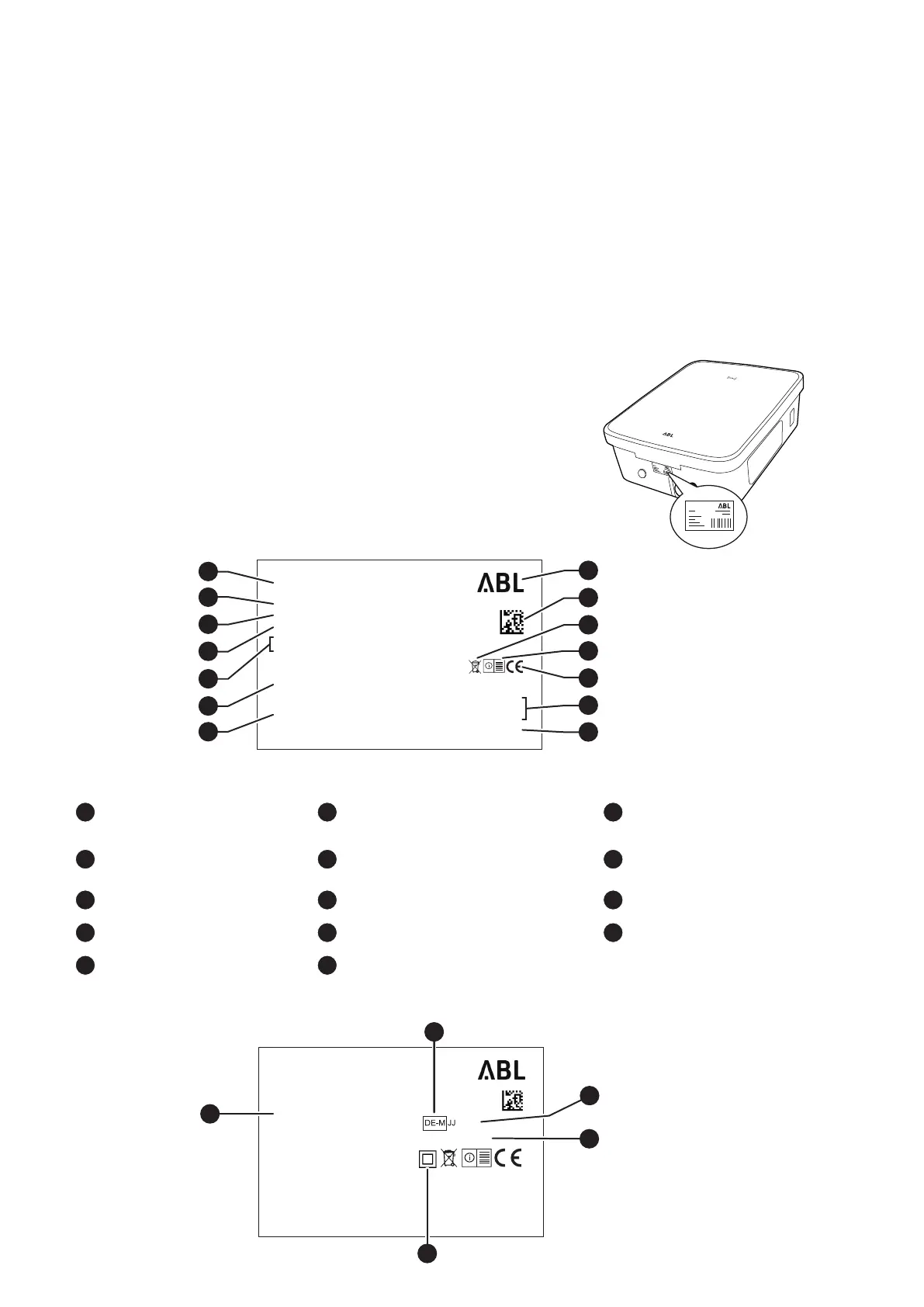

Identifying your wallbox
The model variant of the Wallbox eMH3 can be unambiguously identified on
the rating plate located on the inside of the housing cover. Please verify the
information listed below on the rating plate.
The following information is especially relevant:
Model number and indication of product category
(Controller or Extender)
External power supply
A
Model number and category
(Controller or Extender)
F
Indication of type/production series
(3W or Wallbox eMH3)
K
'Read instructions' advice
B
Power supply data
G
Manufacturer and manufacturer's
address
L
CE label
C
Ambient temperature range
H
Manufacturer's logo
M
Barcode/serial number
D
Degree of protection (housing)
I
DataMatrix code/product number
N
Date printed
E
Standards
J
Disposal advice
For calibration law compliant wallboxes, additional information is provided on the rating plate:
10000510
2021-05-04
3WXXXX00484
IN 3x230/400V 50Hz 32A
OUT 2x11kW/22kW
Class A kWh EN50470-3
-25°C bis 40°C
IP54
IEC 61851-1
IEC 61439-7 ACSEV
Typ: 3W / Wallbox eMH3
3WXXXX
Controller+
MADE IN GERMANY
ABL SURSUM Bayerische Elektrozubehör GmbH & Co. KG
Albert-Büttner-Straße 11 D-91207 Lauf / Pegnitz
VDE-NNNNNNNN
036
10000510
2021-05-04
3WXXXX00484
~230/400V 50Hz 32A
-25°C bis 40°C
IP54
IEC 61851-1
IEC 61439-7 ACSEV
Typ: 3W / Wallbox eMH3
3WXXXX
Controller
MADE IN GERMANY
ABL SURSUM Bayerische Elektrozubehör GmbH & Co. KG
Albert-Büttner-Straße 11 • D-91207 Lauf / Pegnitz
P
O
S
Q
R
A
E
D
B
G
H
I
J
C
F
K
L
M
N
10000510
2021-05-04
3WXXXX00484
IN 3x230/400V 50Hz 32A
OUT 2x11kW/22kW
Class A kWh EN50470-3
-25°C bis 40°C
IP54
IEC 61851-1
IEC 61439-7 ACSEV
Typ: 3W / Wallbox eMH3
3WXXXX
Controller+
MADE IN GERMANY
ABL SURSUM Bayerische Elektrozubehör GmbH & Co. KG
Albert-Büttner-Straße 11 • D-91207 Lauf / Pegnitz
VDE-NNNNNNNN
036
10000510
2021-05-04
3WXXXX00484
~230/400V 50Hz 32A
-25°C bis 40°C
IP54
IEC 61851-1
IEC 61439-7 ACSEV
Typ: 3W / Wallbox eMH3
3WXXXX
Controller
MADE IN GERMANY
ABL SURSUM Bayerische Elektrozubehör GmbH & Co. KG
Albert-Büttner-Straße 11 D-91207 Lauf / Pegnitz
P
O
S
Q
R
A
E
D
B
G
H
I
J
C
F
K
L
M
N
