Appendix – Using the mounting plate as drilling template |

Twin variants

394 mm*

189mm

492mm

*Housing base incl. mounting plate, without overhangs

Using the mounting plate as drilling template

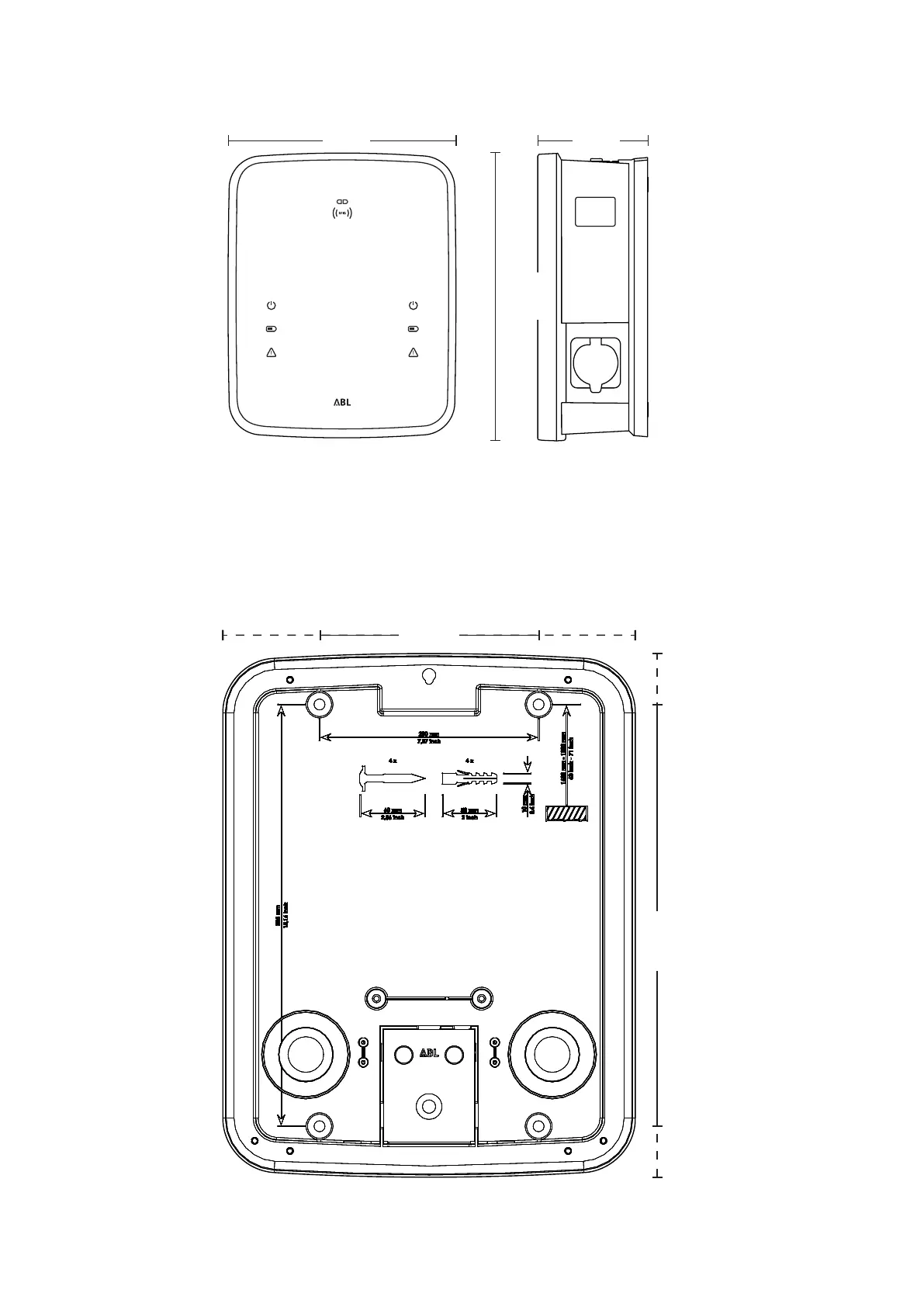

The mounting plate of the Wallbox eMH3 also serves as the drilling template for marking the fixing points. The illus-

tration below shows external dimensions and drilling dimensions.

200 mm

385 mm

88 mm

46,5 mm46,5 mm
