| Installation – Tools and accessories required
14
Minimum distances to other technical installations must be
observed.
A minimum distance of 50cm is recommended.
Ideally, the installation site should provide a ready connection
to the electricity grid. Otherwise, a separate power supply
cable must be installed.
In order to operate group installations, suitable data cables
must also be installed in the installation site (see also "Prepar-
ing and fixing the wallbox in place" on page17 as well as
"Data cable connections" on page19).
Tools and accessories required

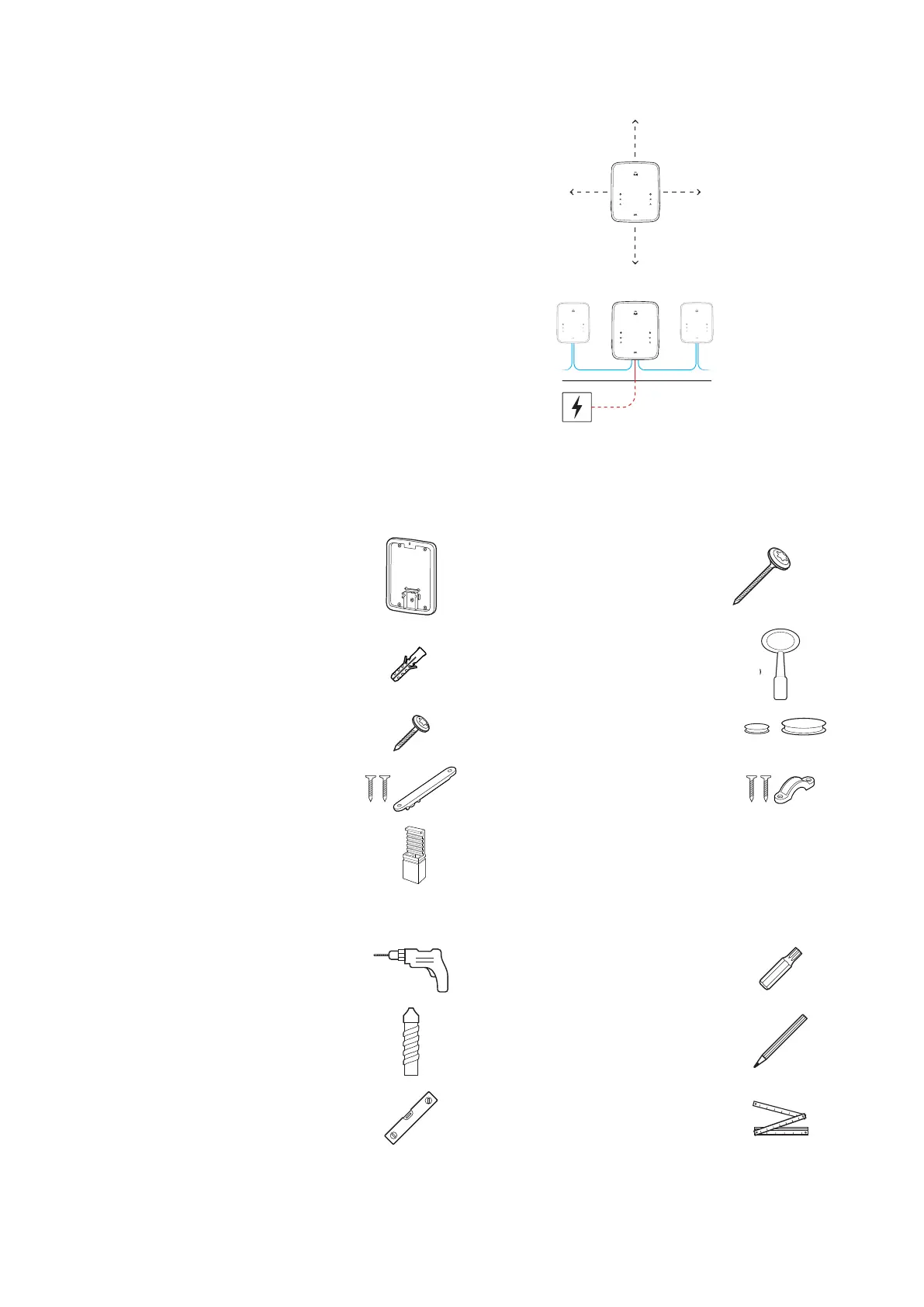

For mechanical installation, you will need the following components included with the wallbox:
Mounting plate, 1pc
TX40 wafer head screws,
8×60mm, 4pcs
Wall plugs 10×50mm, 4pcs Triangular key, 1pc
TX25 wafer head screws,
6×25mm, 4pcs
Cable grommets, 3pcs
Large strain relief incl. screws,
1pc
Small strain reliefs incl.
screws, 2pcs
Plug-in jumpers for terminating
data bus, 4pcs
In addition, you will need the following tools:
Electric drill Bit (Torx T20)
10 mm ∅ drill bit suitable
for the respective mounting
surface
Pencil
Spirit level Tape measure
