| Installation – Preparing the installation site

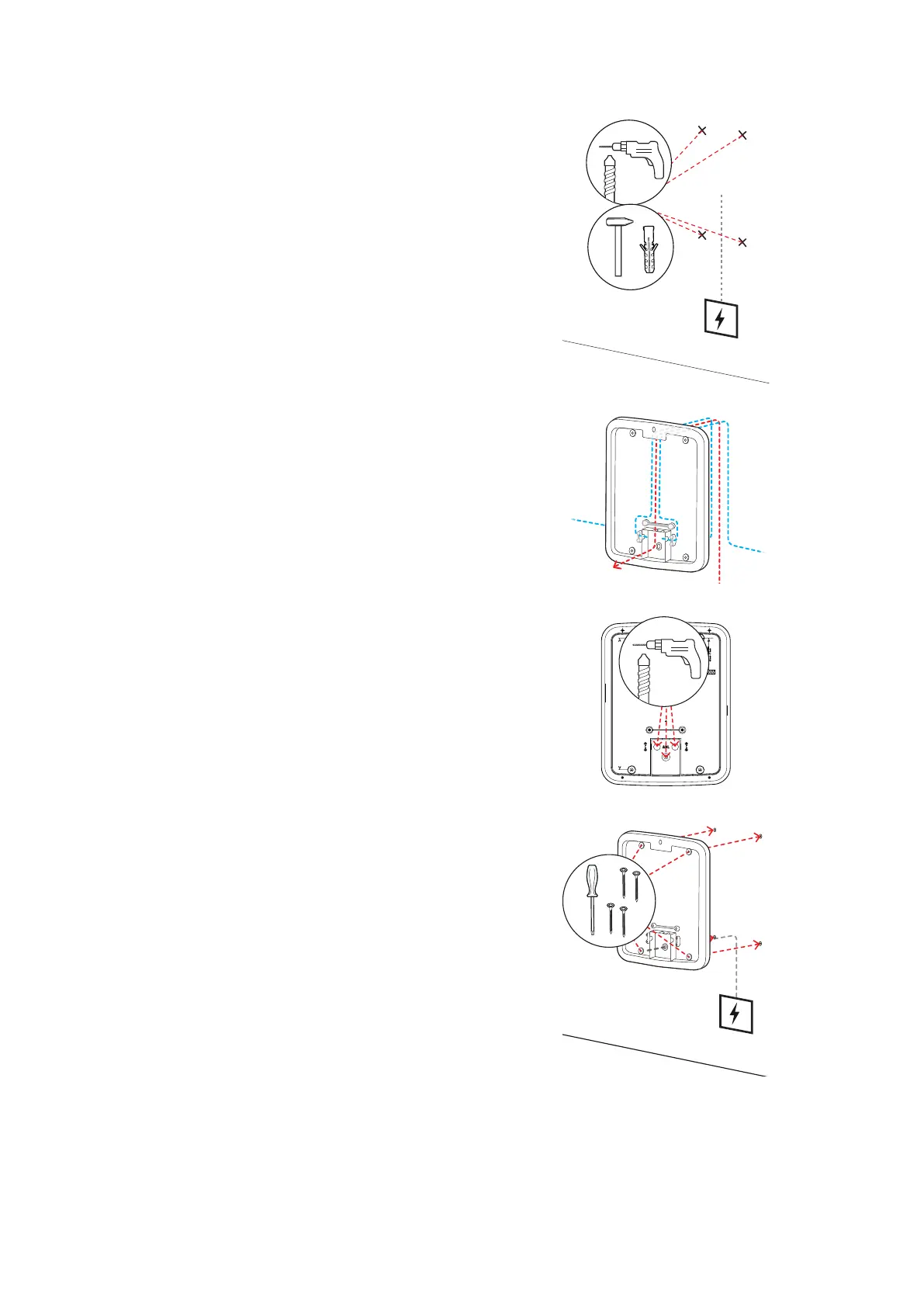

3 Pre-drill the marked fixing points with the electric

drill and drill bit (∅ 10 mm).

4 Drive the wall plugs into the fixing points with the

hammer.

5 Prepare the mounting plate for the insertion of the

power supply cable (red) and data cables (blue, if

required).

y Insertion from the top: Insert the cables

through the upper opening into the connection

area of the mounting plate and secure the supply

cables using the strain reliefs supplied (power:

large strain relief; data cables: small strain

reliefs).

y Insertion from the back: Drill through the

pre-stamped inlets in the connection area and

insert the cables. In this case you do not need

strain reliefs.

6 Insert the cables through the mounting plate and fix

the mounting plate to the four fixing points using

the four TX40 wafer head screws included.

7 Use a screwdriver or the electric drill with a suita-

ble bit.
