| Installation – Connecting the E3BWLAN

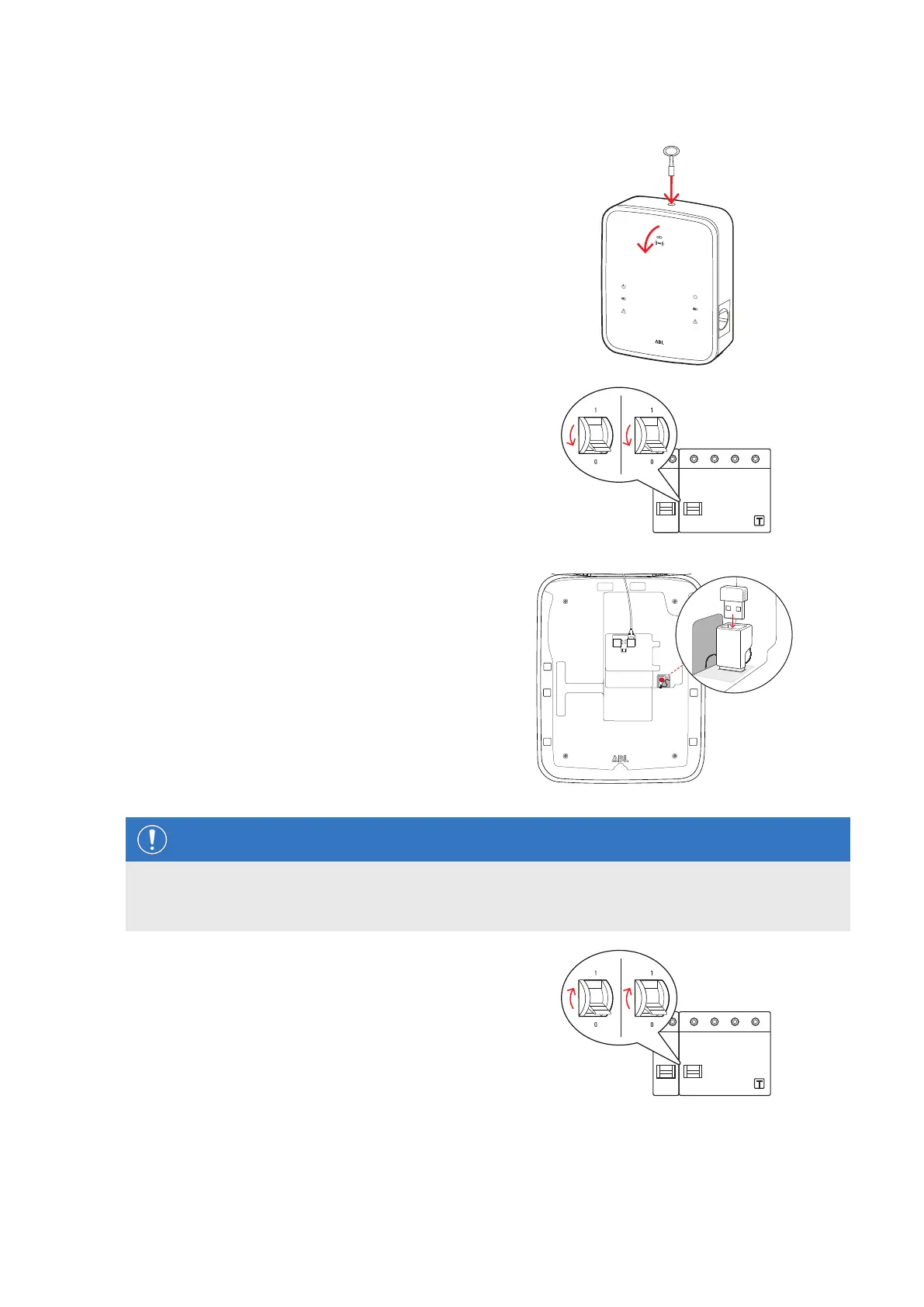

Proceed as follows:

1 Open the housing cover of the wallbox using the

triangular key and lower it.

2 Disconnect the wallbox from the electricity supply

via the integrated RCCB and MCB.

3 Locate the 5V USB switch on the inside of the hous-

ing cover of the wallbox and insert the E3BWLAN

into the Type A port of the switch.

y If the 5V USB switch is already occupied by

another device (e.g. an LTE USB stick), unplug

this device in order to be able to plug in the WiFi

dongle.

MODBUS EN1 MODBUS

METER

CONTROL

METER

NOTE

Setting up communication via the WiFi dongle

Setting up the E3BWLAN for use with your wallbox is described from section "Setting up data communication"

on page36 onwards.

4 Switch the electricity supply of the wallbox back on.
