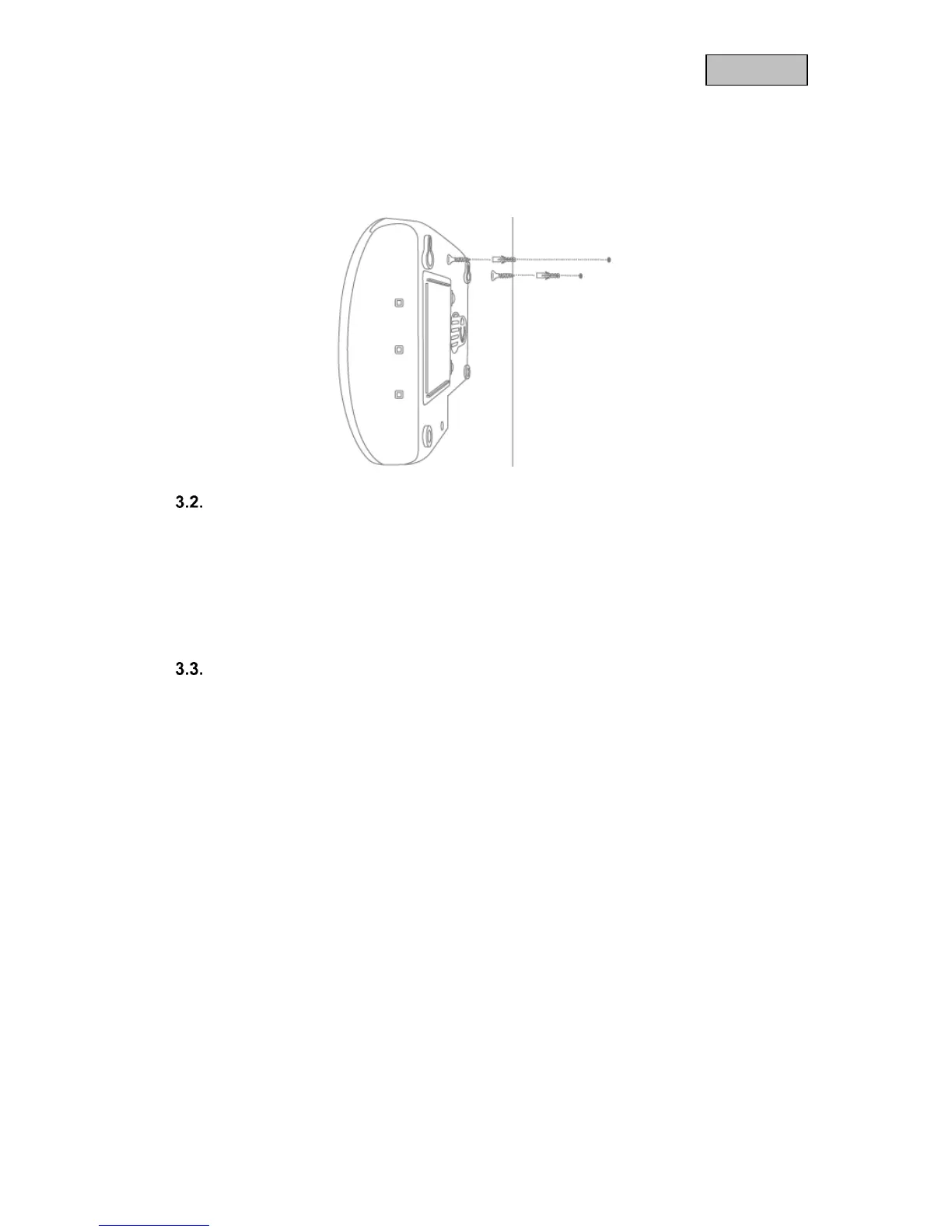

Wall installation
Stick the Smartvest drilling template to the desired installation location. Use a spirit level to ensure the
drilling template is straight. Drill holes in the specified positions and insert the screw anchors provided.
Screw the screws provided into the screw anchors so that the heads protrude by around 6 mm, then
mount the Smartvest.
FUHA35000 power switch
The power switch is only suitable for indoor use. For further information, please refer to the safety
instructions relating to installation location and operating environment.
Power switches must never be connected in series.
Installation
Plug the power switch into a socket and plug the desired consumer (e.g. a lamp) into the power switch.
FUMK35000 magnetic contact
The magnetic contact is only suitable for indoor use. For further information, please refer to the safety
instructions relating to installation location and operating environment.
General installation instructions
 Always install the smaller magnet component on the window or door and the larger transmitter
component on the window or door frame.
 Install the magnetic contact so that the two components are a maximum of 0.5 cm apart
horizontally and 1.5 cm apart vertically.
 If in doubt, test whether the height difference on your window or door is too great by holding the
two components next to each other in the desired position on the window or door and then moving
the transmitter component to the window or door frame. If the blue signal LED lights up, the height
difference is too great.
 To even out the height difference, use the washers provided, which need to be attached to the
rear of the components. The screws provided are not compatible with washers. Either use your
own screws for this or the adhesive pads provided (recommended).
 Always install the magnetic contact on the side of the window or door which is opened and not on
the hinge side.
 You can either install the magnetic contact on the top or the side of the window. If you install the
magnetic contact on the underside of the window, the magnetic contact may not trigger if the
window is tilted (not recommended).

Abus Smartvest Specifications

General

Certification	CE, GS
Maximum power	3680 W
Product color	White
LED indicators	Yes
AC input voltage	250 V
Connector gender	Male/Female
Housing material	Acrylonitrile butadiene styrene (ABS)
Sockets quantity	1
Plug connector type	Type F
Maximum indoor range	30 m
Maximum outdoor range	100 m
RF transmission frequency	868 MHz

Weight and Dimensions

Depth	31 mm
Width	55 mm
Height	99 mm
Weight	129 g
