AccuEnergy Acuvim II series User Manual

95
waveform capture. The other triggering conditions for Waveform Capture can
be set when necessary. When the Waveform Capture triggering by Voltage Sag
and Voltage Swell is enabled, the corresponding event log and waveform will be
recorded when Voltage Sag or Voltage Swell happens.

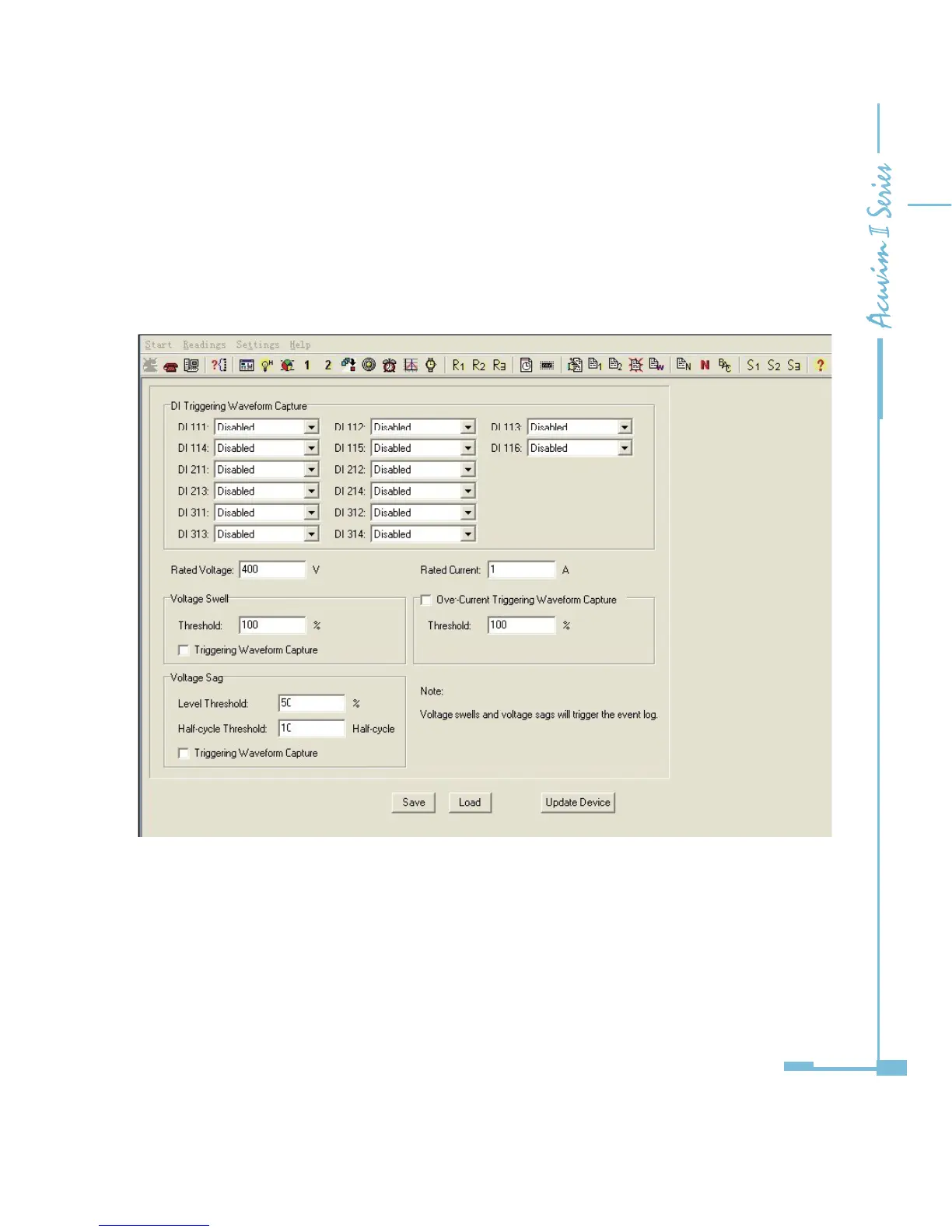

Fig. 4-12
4. Event Log Retrieve
When a new event log commences, the newest event number
address(0X8CFDH)contains the newest event number. When the log is being
retrieved, the starting event log number (0X8CFEH) and the event quantity for
