2.3 Wiring
2.3.1 Terminal Strips
There are four terminal strips at the back of the Acuvim II series meter. The three
phase voltage and current are represented by using 1, 2, and 3 respectively.
These numbers have the same meaning as A, B, and C or R, S, and T used in
other literature.
Current Input Terminal Strip
Voltage Input Terminal Strip
Power Supply Terminal Strip Communication Terminal Strip

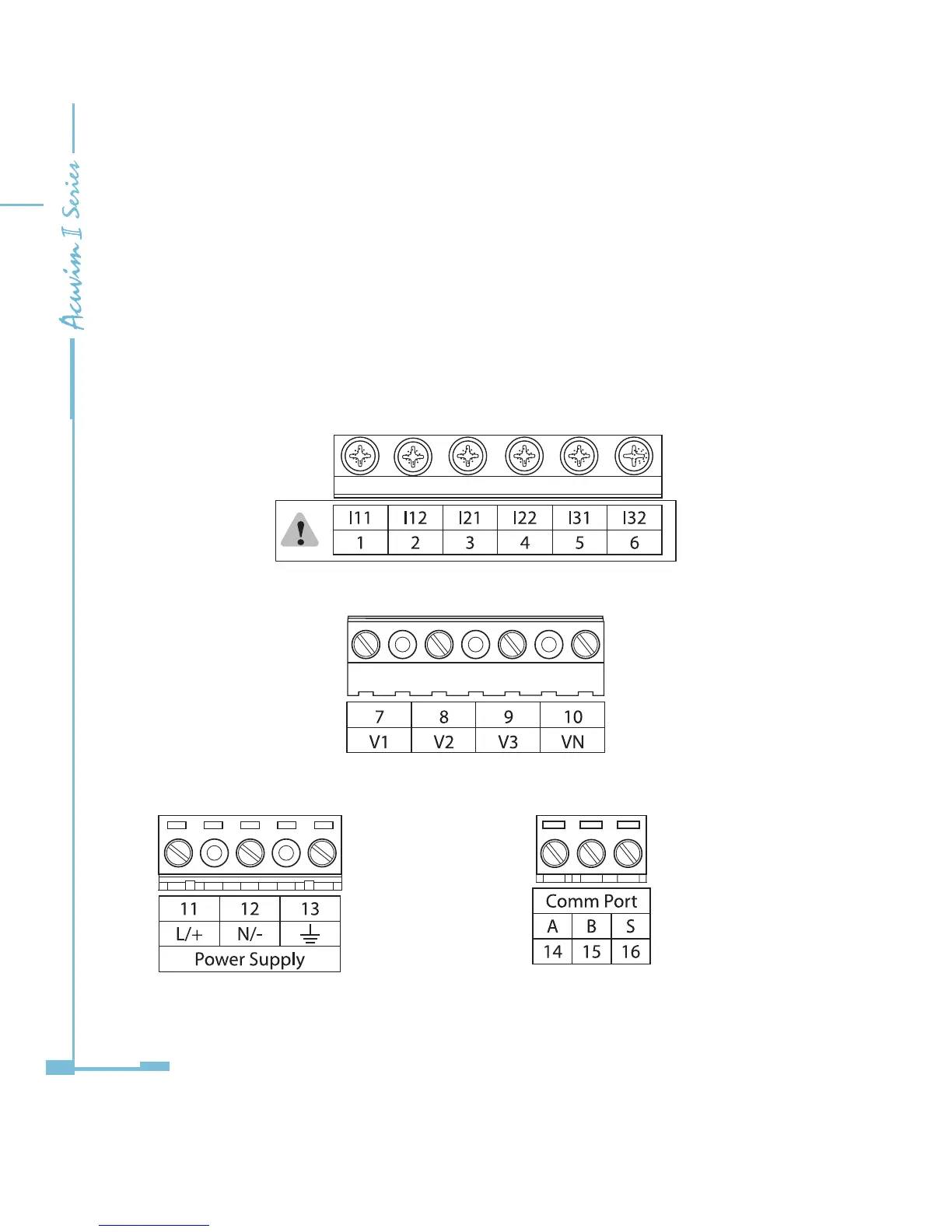

Fig 2-5 Terminal Strips of Acuvim II series meter
