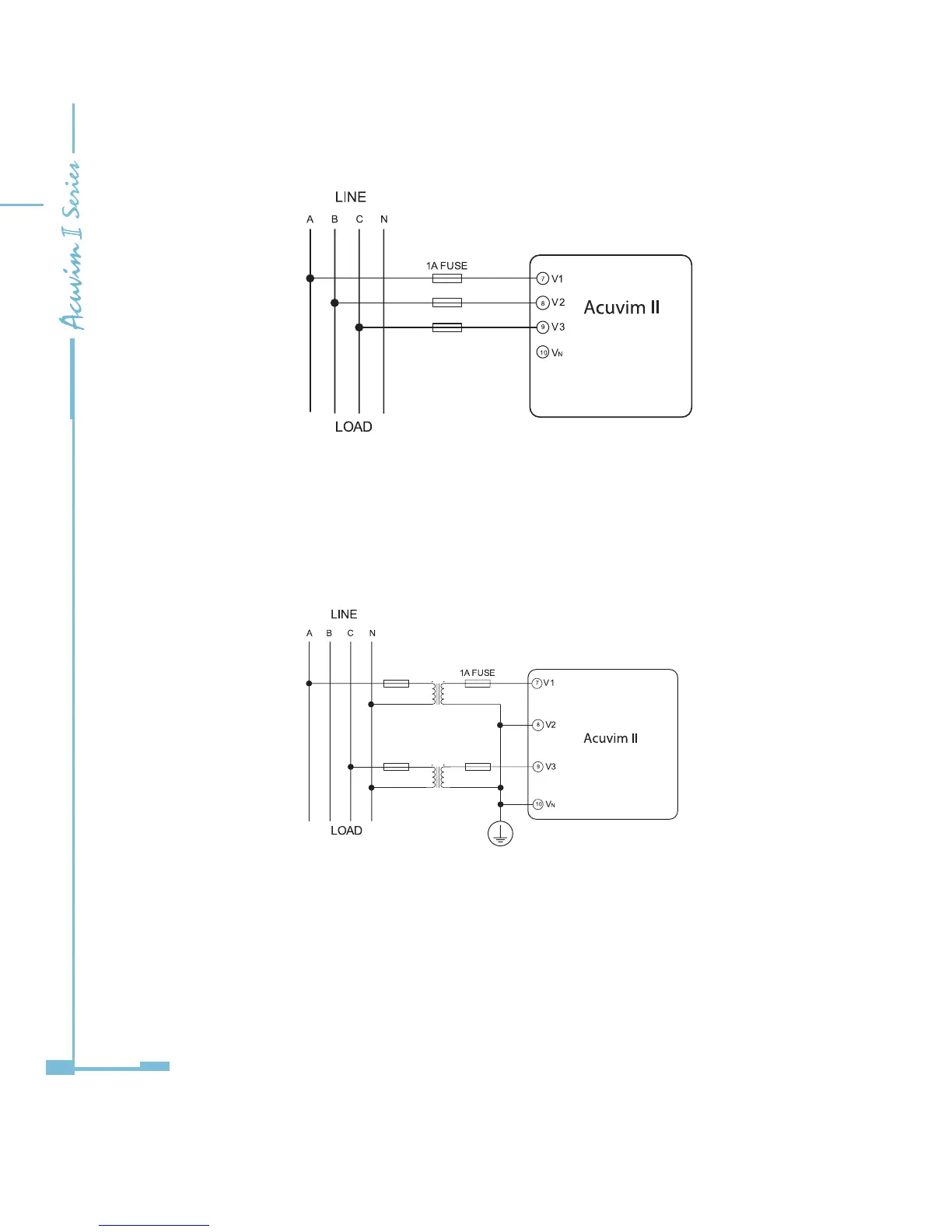

Fig 2-10 3LL 3-Phase 3-Line direct connection

3-Phase 3-Line open Delta Mode (2LL)

Open delta wiring mode is often used in high voltage systems. V2 and Vn are

connected together in this mode. The voltage input mode of the meter should

be set to 2LL for this voltage input wiring mode.

Fig 2-11 2LL with 2PTs

2.3.4 Current Input Wiring

3CT

The 3CT current wiring configuration can be used when either 3CTs are

connected (as shown in Fig 2-12) or 2CTs are connected (as shown in Fig 2-13)
