2.2 Installation Methods
Environmental
Before installation, please check the environment, temperature and humidity to
ensure the Acuvim II series meter is being placed where optimum performance
will occur.
Temperature
Operation: -25˚C to 70˚C.
Storage: -40˚C to 85˚C
Humidity
5% to 95% non-condensing.
The Acuvim II series meter should be installed in a dry and dust free
environment. Avoid exposing meter to excessive heat, radiation and high
electrical noise source.
Installation Steps
The Acuvim II series meter can be installed into a standard ANSI C39.1 (4”
Round) or an IEC 92mm DIN (Square) form.
1. Cut a square hole or round hole on the panel of the switch gear.
The cutting size is shown in g 2-2.
Unit: mm (inches)

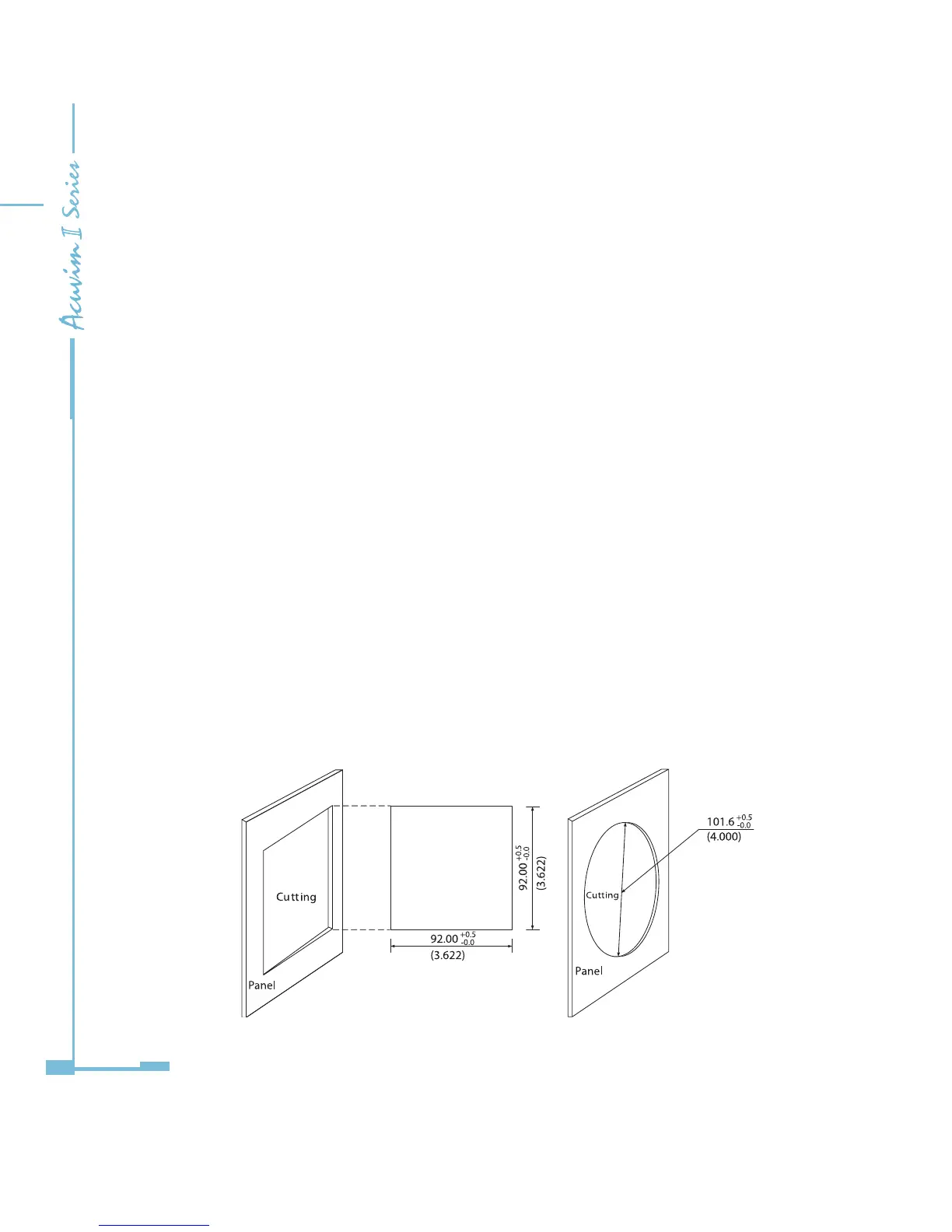

Fig 2-2 Panel Cutout
