AccuEnergy Acuvim II series

24

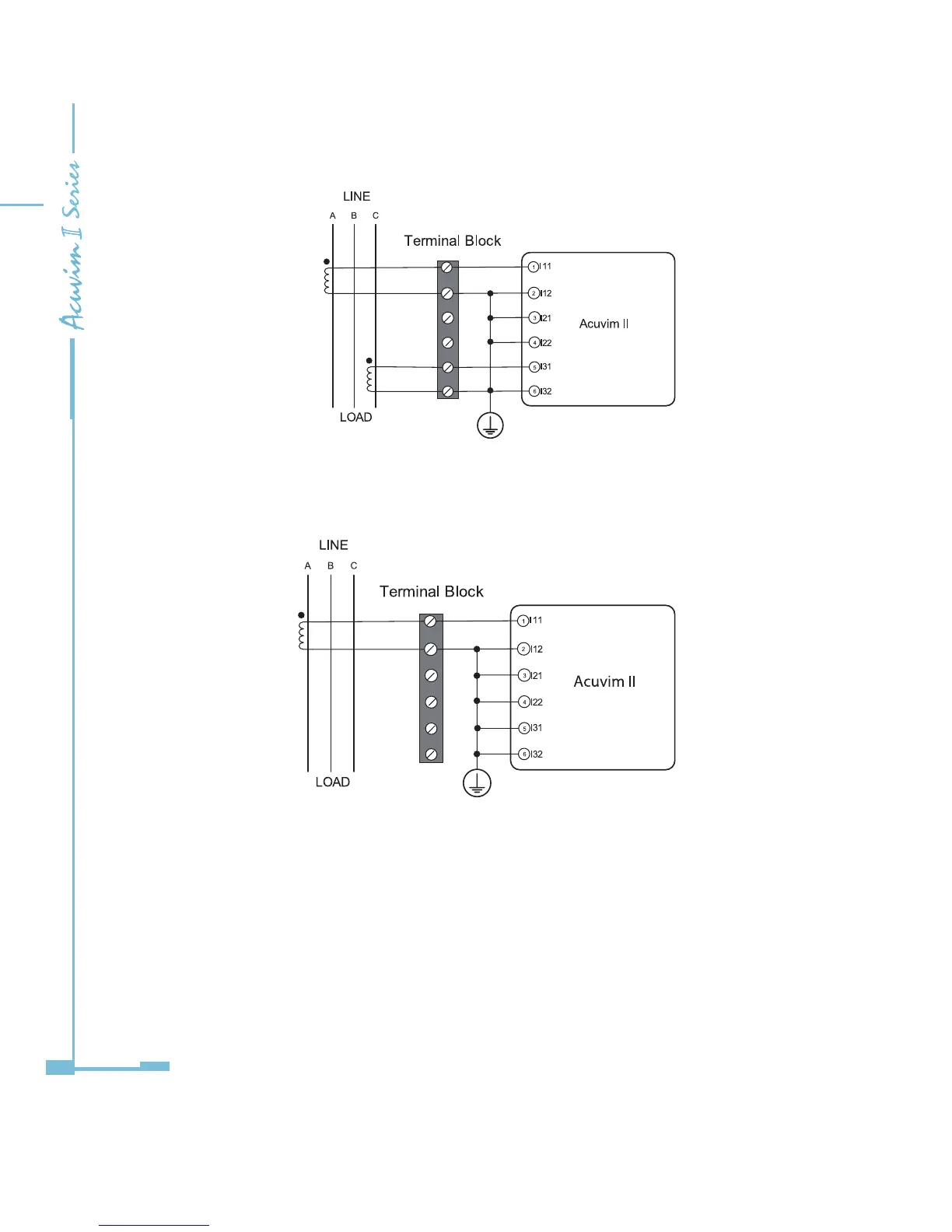

Fig 2-14 2CTs
1CT
Fig 2-15 1CT
2.3.5 Frequently Used Wiring Method
In this section, the most common voltage and current wiring combinations
are shown in different diagrams. In order to display measurement readings
correctly, please select the appropriate wiring diagram according your setup
and application.
