AccuEnergy Acuvim II series User Manual

140
5.1.11 Analog Input
Analog input circuits supply 4 types of input modes, including 0 to 20mA mode,
4 to 20mA mode, 0 to 5V mode, and 1 to 5V mode.
Fig 5-23 shows the relationship between AI value and input analog value.
AI value ranges from 0 to 4095 without any unit. AI value is displayed in hex on
screen.
Fig 5-24 shows the AI value read on screen.

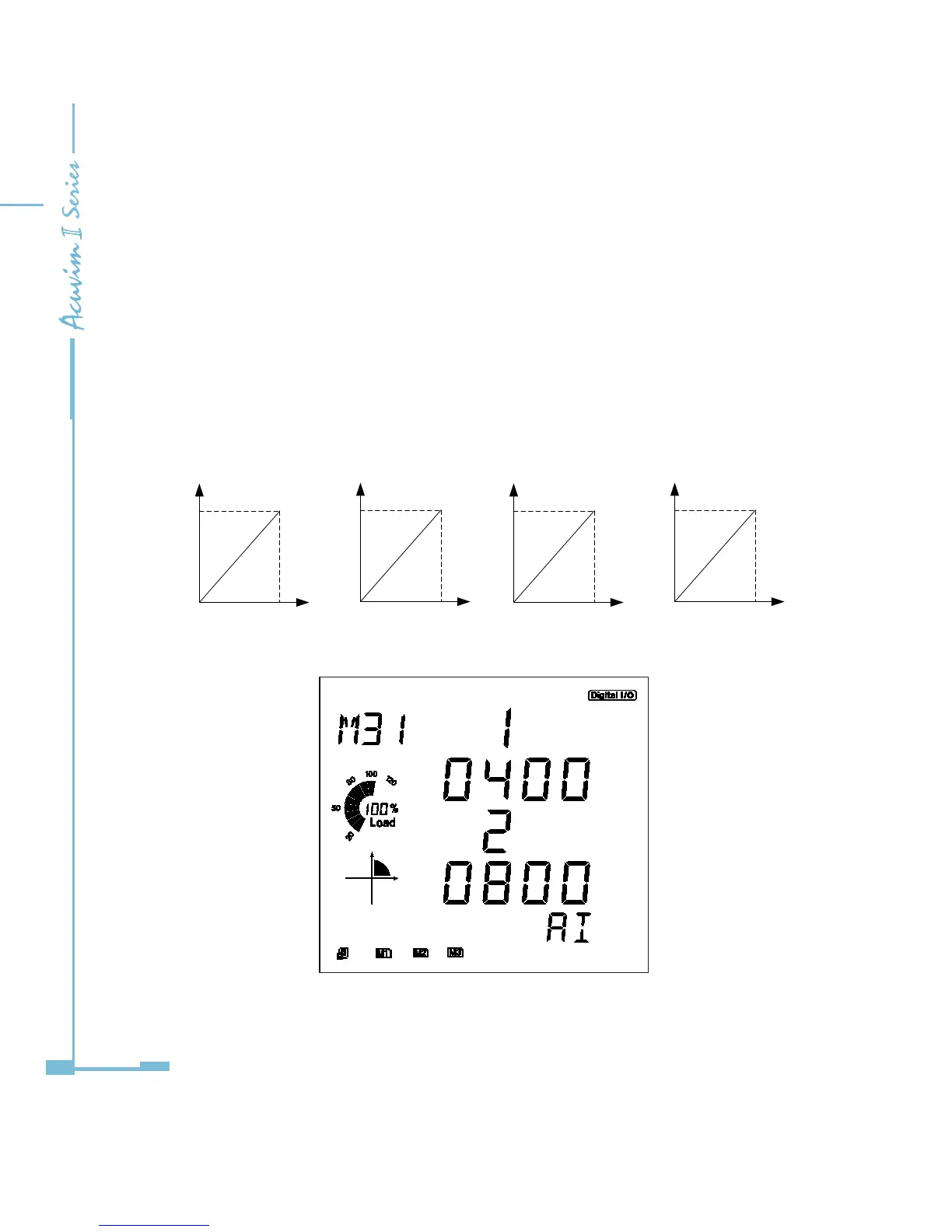

Fig 5-23: relationship between AI value and input analog value
Fig 5-24 AI value read on screen
AI Value
0
4095
20
mA
0
AI Value
4
4095
20
mA
0
AI Value
0
0
AI Value
1
4095
5
V
0
4095
5
V
