187
5.3.8 Address Setting
The PROFIBUS module can only be used as a slave in the PROFIBUS network.
Its slave address ranges from 0 to 126, which can only be set by the front panel
of the meter (in SYS sub menu of Acuvim II Setting menu). If the address is
changed, it will take eect immediately.

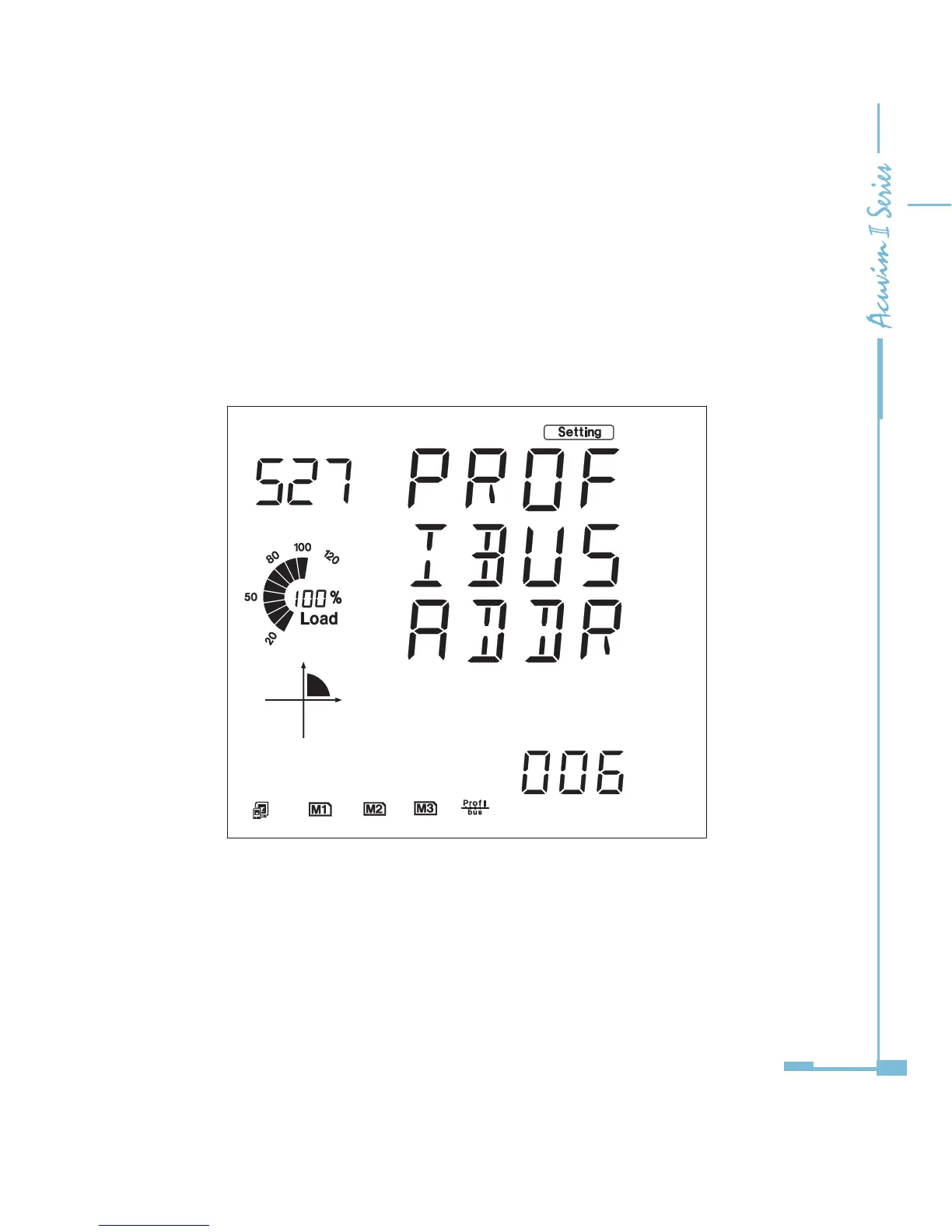

Figure bellow shows the address setting of PROFIBUS module.
Fig 5-55 Address setting of PROFIBUS module
5.3.9 Baud Rate
The PROFIBUS module’s baud rate can be adaptive between 9.6Kbps to 12Mbps
in PROFIBUS network.
