(bottom View)
Fig 5-56
5.4.4 Installation Method

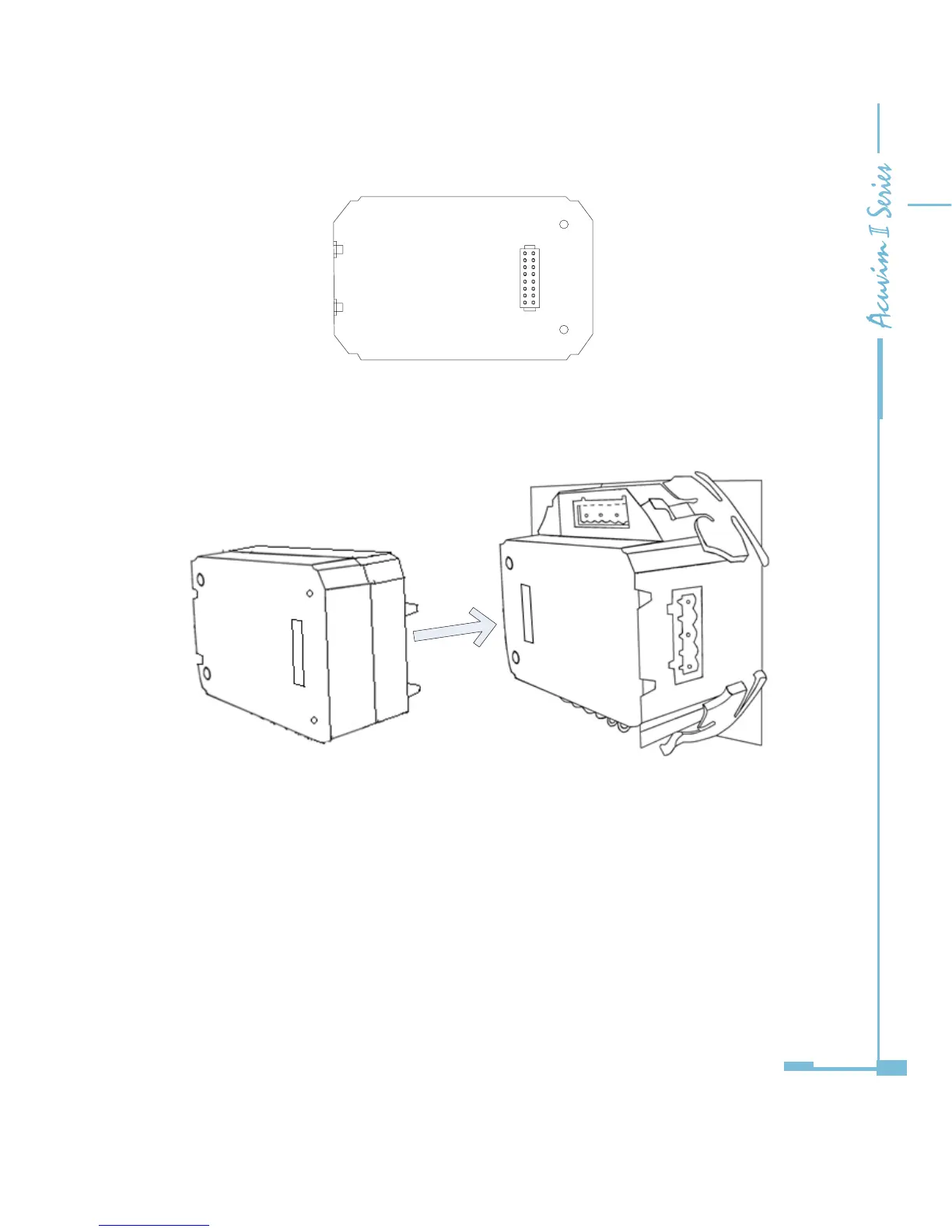

Fig 5-57
The RS485 module is linked to the meter by a communication plug. It also can
be linked to other extended modules.
1.Insert the installation clips to the counterpart of the meter, and then press the
RS485 module lightly, so linking is established.
2.Tighten the installation screws.
