AccuEnergy Acuvim II series User Manual

70
2. There are two ways to calculate reactive energy(power)
Mode 0: real reactive energy
Mode 1: general reactive energy
3. User can choose primary energy or secondary energy either by pressing keys
from the meter front or via communication as shown in Fig 4-7.
Note: Acuvim II is able to display either primary energy or secondary energy
on the LCD screen; however, it is only able to send out pulses according to
secondary energy via the AXM-IO module.

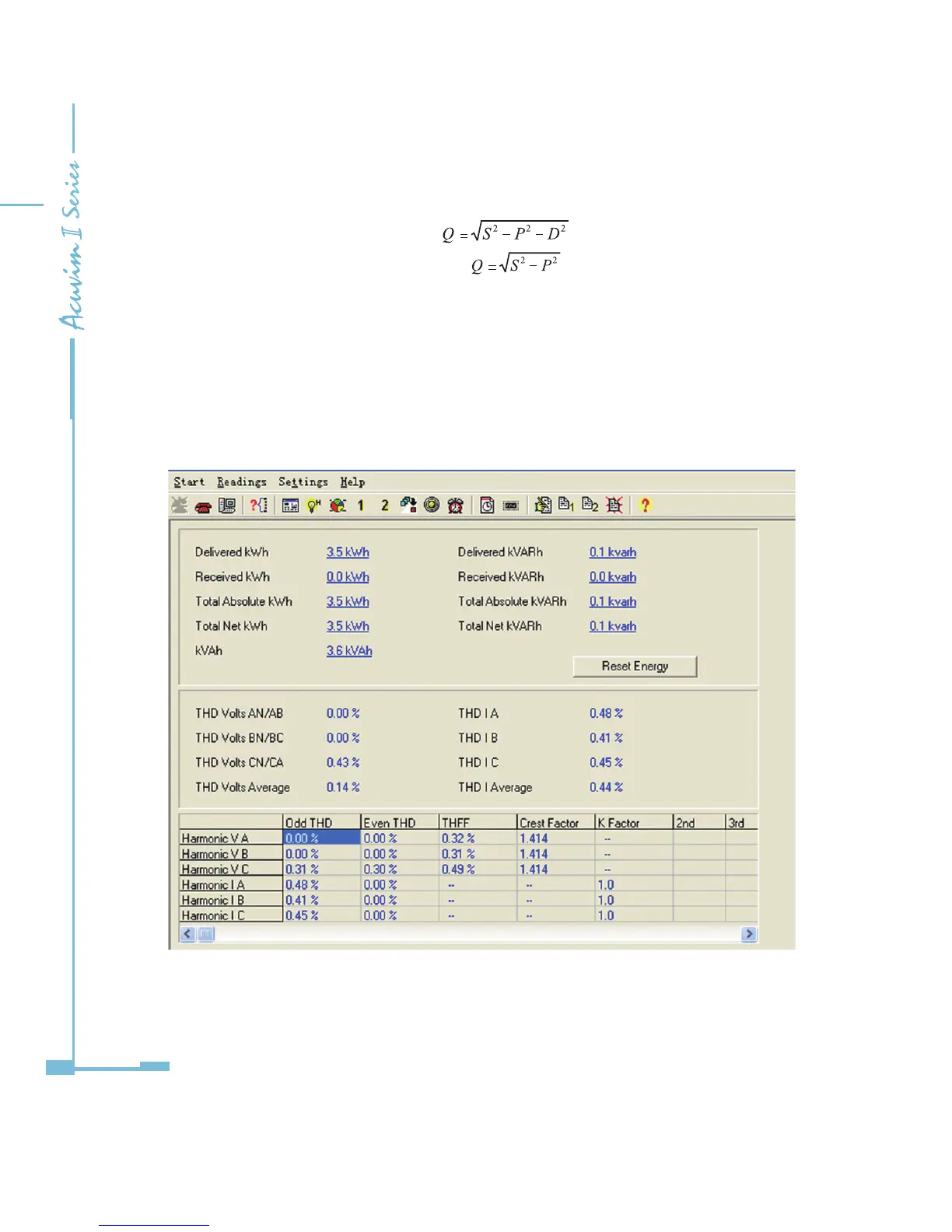

Fig 4-2 Energy and Power Quality Parameters
