74
alarming log. The meter can record up to 16 alarming records. When extended
I/O modules are attached, digital outputs (DO) and relay outputs (RO) can be
triggered upon alarm conditions and used to activate downstream devices such
as a beacon light or a buzzer.
Before using the alarming function, alarm conditions such as logic dependency,
target setpoint, time delay etc must be set correctly. Settings can be accessed
and modied from the software via communication connection as shown in Fig
4-5.

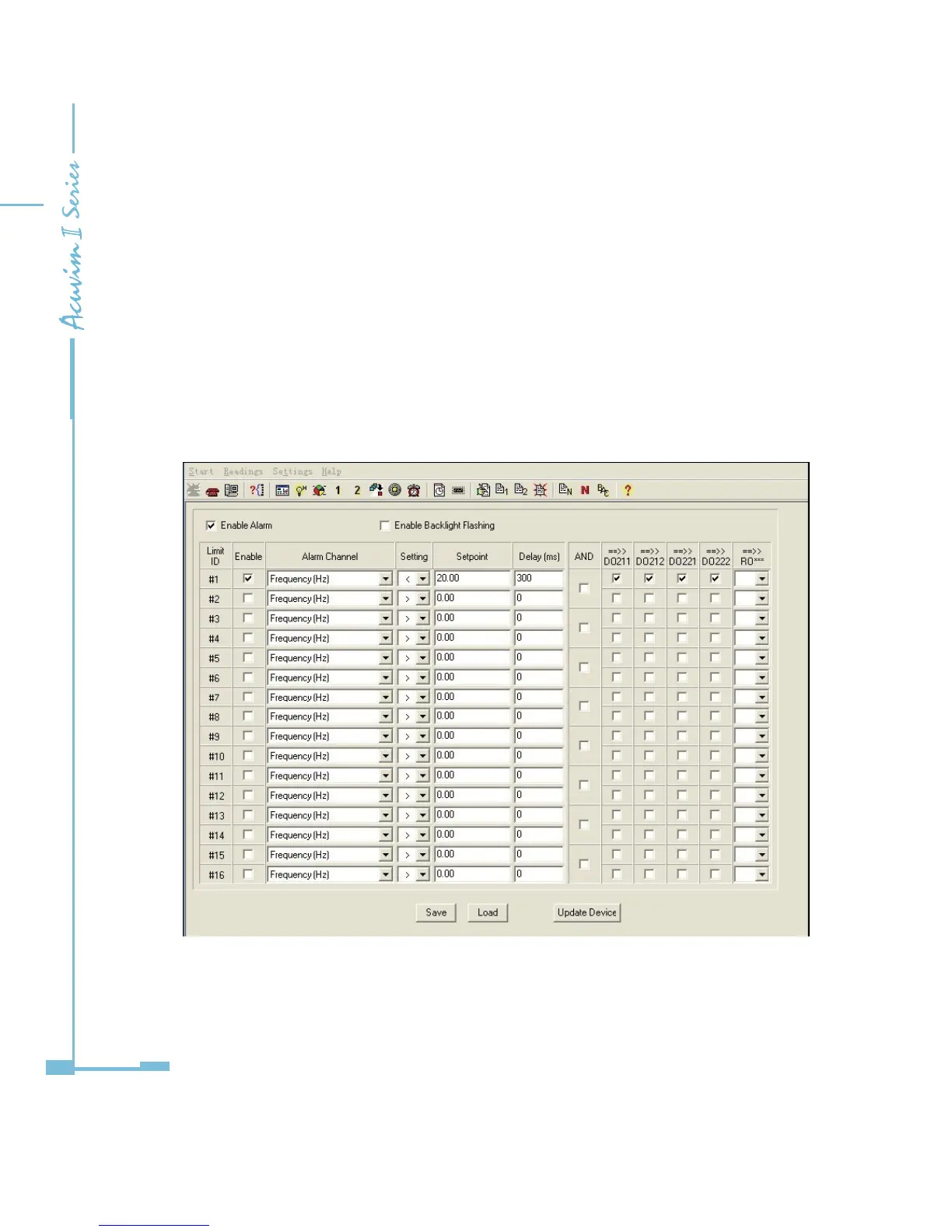

Fig 4-5 Alarm Setting
