“Time” indicates the time stamp with the accuracy in milliseconds (ms).
Alarming event will set bit0 of “system status (102EH)” to be 1. When software
send clear alarm command, Bit0 of “system status (102EH)” will be set to 0.
Alarming group number (1032H): the range is 0~16, 0 is no alarm record, and
others stand for which record is newest alarm. Alarming group number can be
saved during meter power o, and it is cycling recording.
Here is an example:

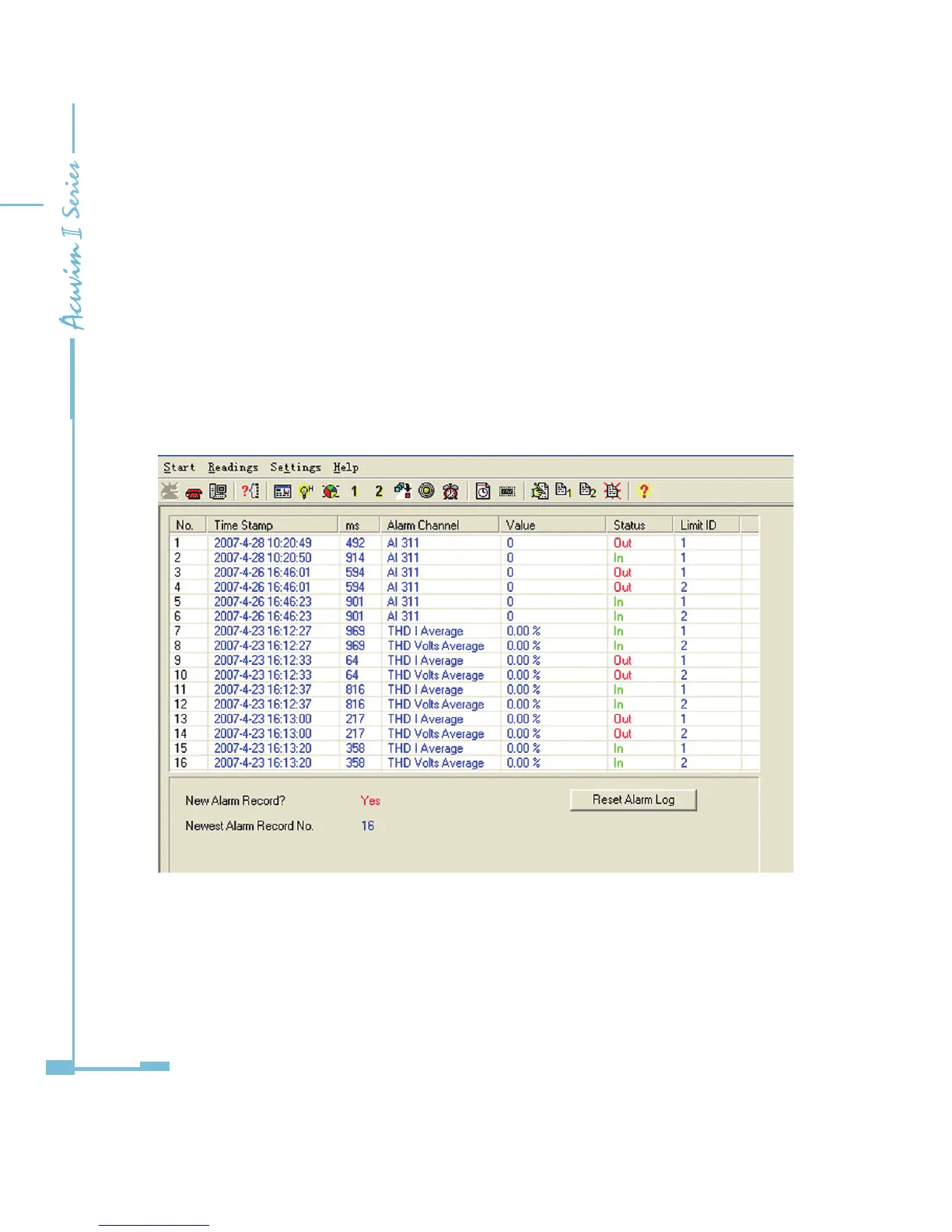

Fig 4-6 Alarming records
