Jumper and Connector Locations 5-3
Jumper and Connector Locations

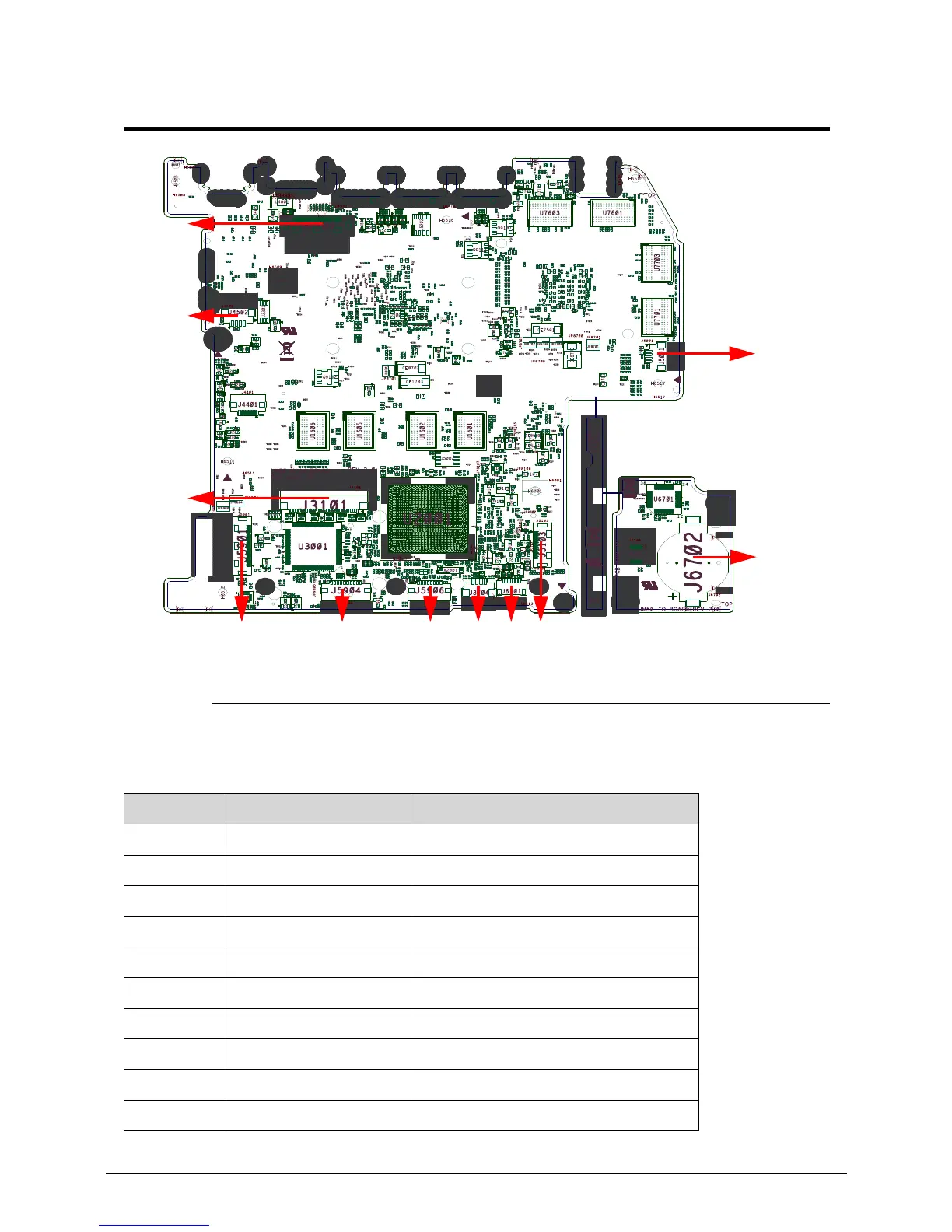

Figure 5-1. Mainboard Top
Item 1
Item 2
Item 3
Item 4
Item 5
Item 6
Item 7
Item 8
Item 9
Item 10
Item 11
Table 5-1. Mainboard Top
Item Connector Description
1 J4501 LVDS Connector
2 J4502 Microphone Connector
3 J3101 Keyboard Connector
4 J5901 IO Board Connector
5 J5904 Power Switch Board Connector
6 J5906 Touchpad Connector
7 J3704 Speaker Connector
8 J6101 Bluetooth Connector
9 J5103 HDD Connector
10 J6702 RTC Battery Connector
