5-4 Jumper and Connector Locations

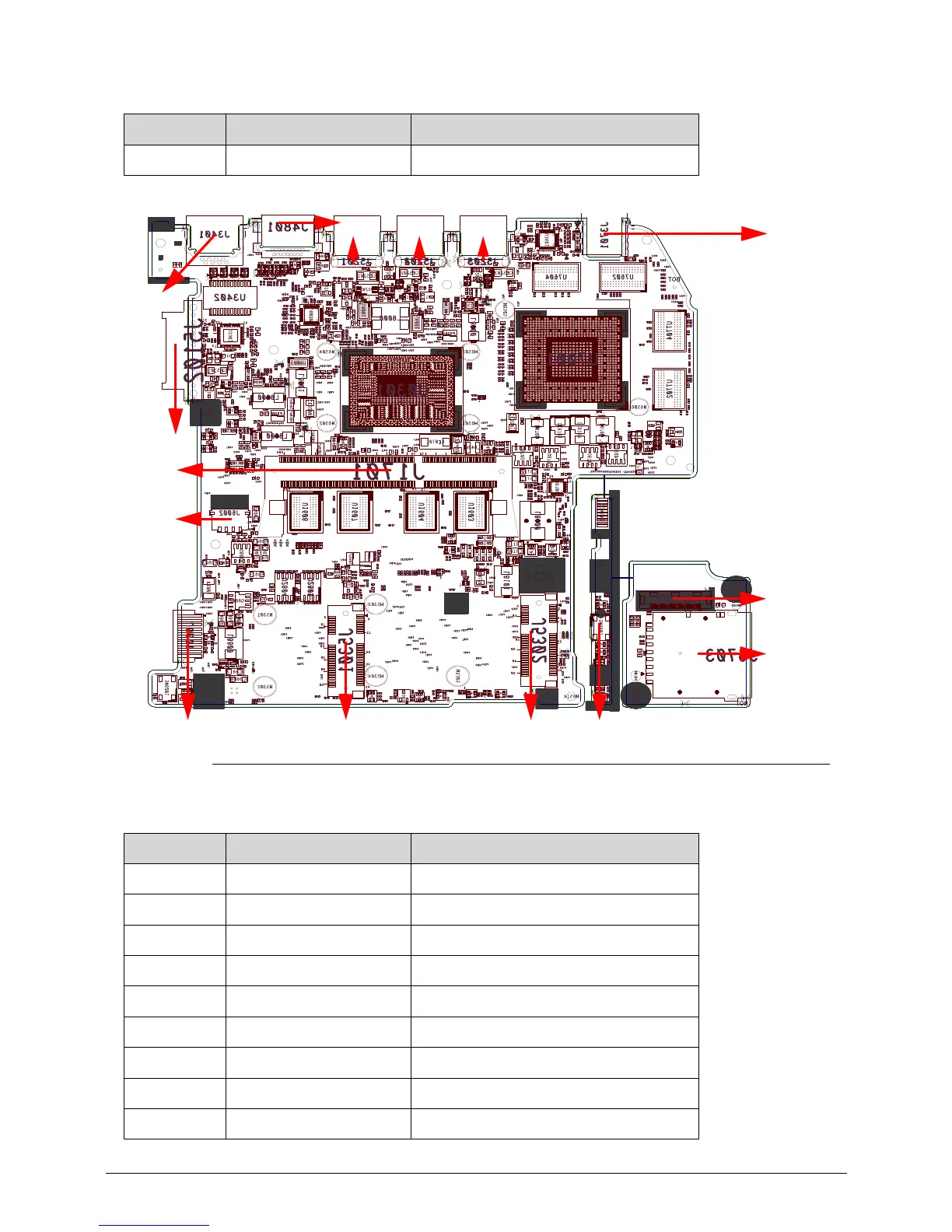

Figure 5-2. Mainboard Bottom
Table 5-2. Mainboard Bottom
11 J5001 Fan Connector
Item Connector Description
1 J3401 LAN Connector
2 J5102 ODD Connector
3 J1701 DDR3-SO-DIMM Connector
4 J6002 DC-IN Connector
5 J6001 Battery Connector
6 J5301 WLAN Connector
7 J5302 SSD SATA Connector
8 SW6601 Power Button
9 J6703 SD card Socket
Table 5-1. Mainboard Top
Item Connector Description
Item 15
Item 14 Item 13 Item 12
Item 11
Item 10
Item 9
Item 8Item 7Item 6Item 5
Item 4
Item 3
Item 2
Item 1
