Machine Maintenance Procedures 3-25
Speakers Removal 0
Prerequisite:
Mainboard Removal
1. Remove the speaker cable (A) from the cable guides (Figure 3-24).
2. Remove the speakers (B) by lifting upwards from the lower case (Figure 3-24).

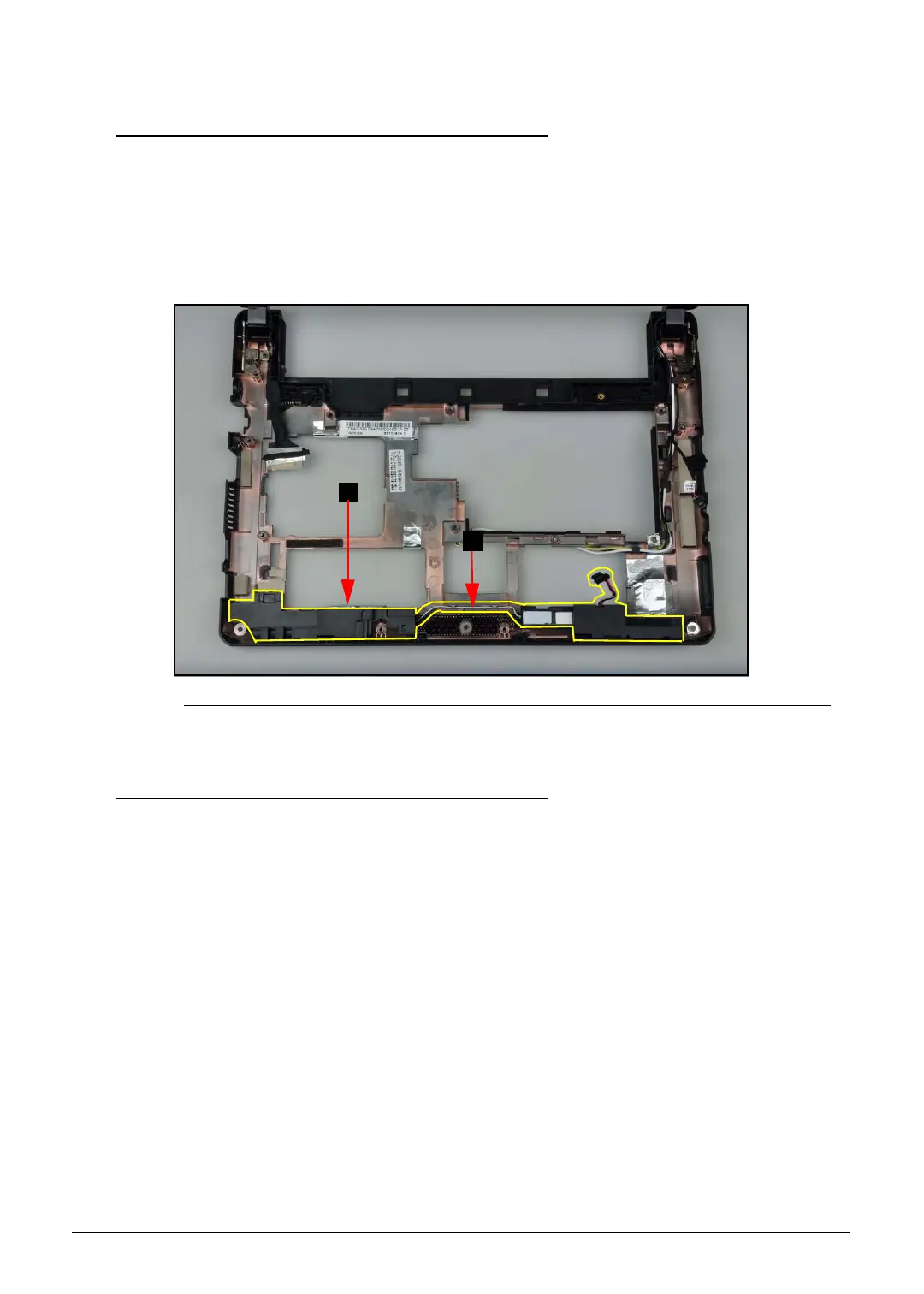

Figure 3-24. Speakers
Speakers Installation 0
1. Place the speakers onto the lower case and press down to secure it. Refer to
Figure 3-24.
2. Place the speaker cable (A) into the cable guides (Figure 3-24).
3. Install the mainboard.
