Acer Aspire One D270 Series - DIMM (Dual In-Line Memory Module) Removal; DIMM Installation

Machine Maintenance Procedures 3-19
DIMM (Dual In-line Memory Module) Removal 0
Prerequisite:
Base Cover Removal
1. Find the DIMM (D). Refer to Figure 3-10.
2. Push DIMM clips (A) outwards (Figure 3-16).

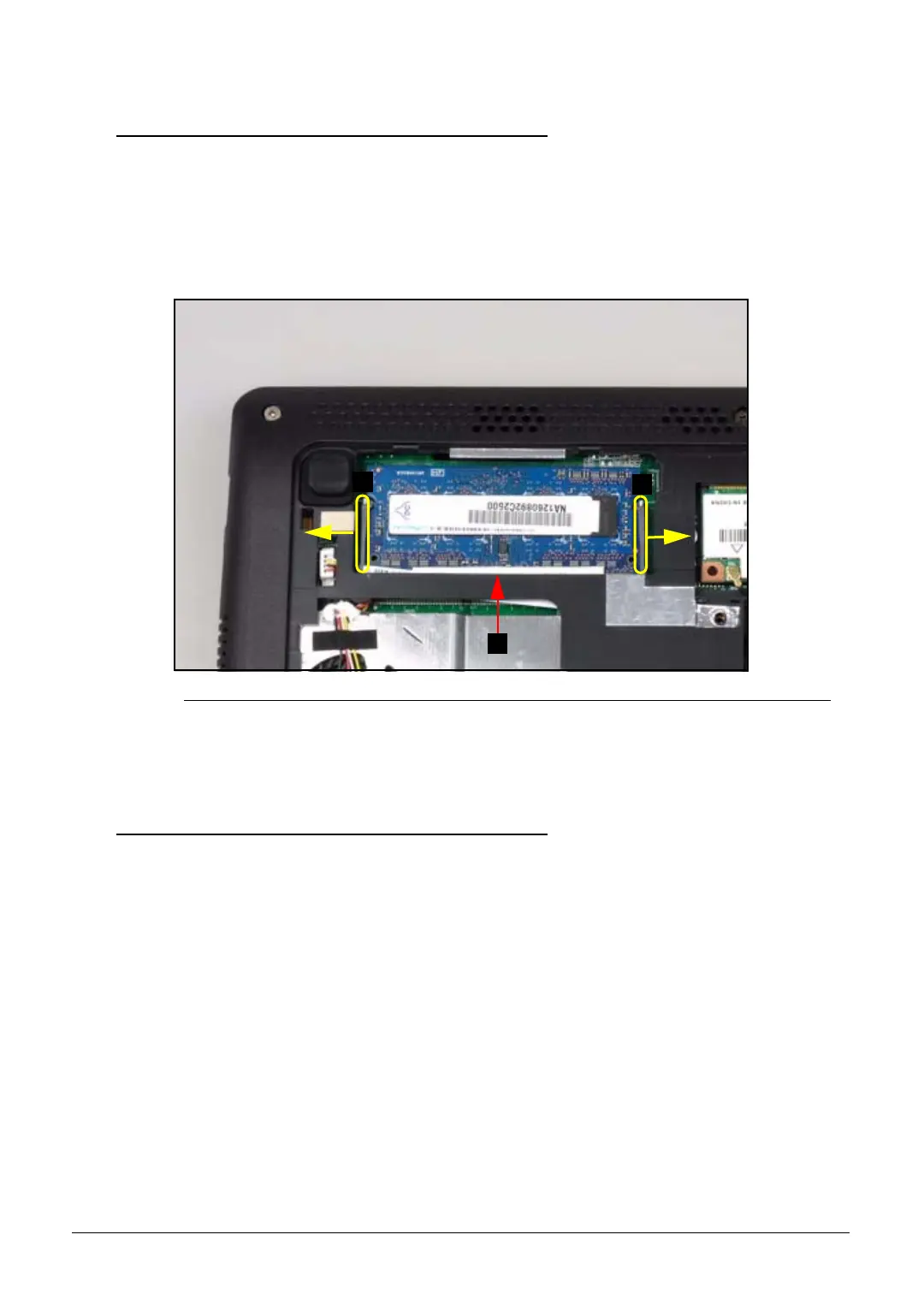

Figure 3-16. DIMM Removal
3. Disconnect the DIMM from the mainboard connector (B). Refer to Figure 3-16.
DIMM Installation 0
1. Connect the DIMM to the mainboard connector (B). Refer to Figure 3-16.
2. Push down on the DIMM until the module clips (A) lock into position. Refer to
Figure 3-16.
3. Install the base cover.
