Acer Aspire One D270 Series - HDD (Hard Disk Drive) Removal

3-14 Machine Maintenance Procedures
HDD (Hard Disk Drive) Removal 0
Prerequisite:
Base Cover Removal
1. Find HDD (A) on the lower case (Figure 3-10).

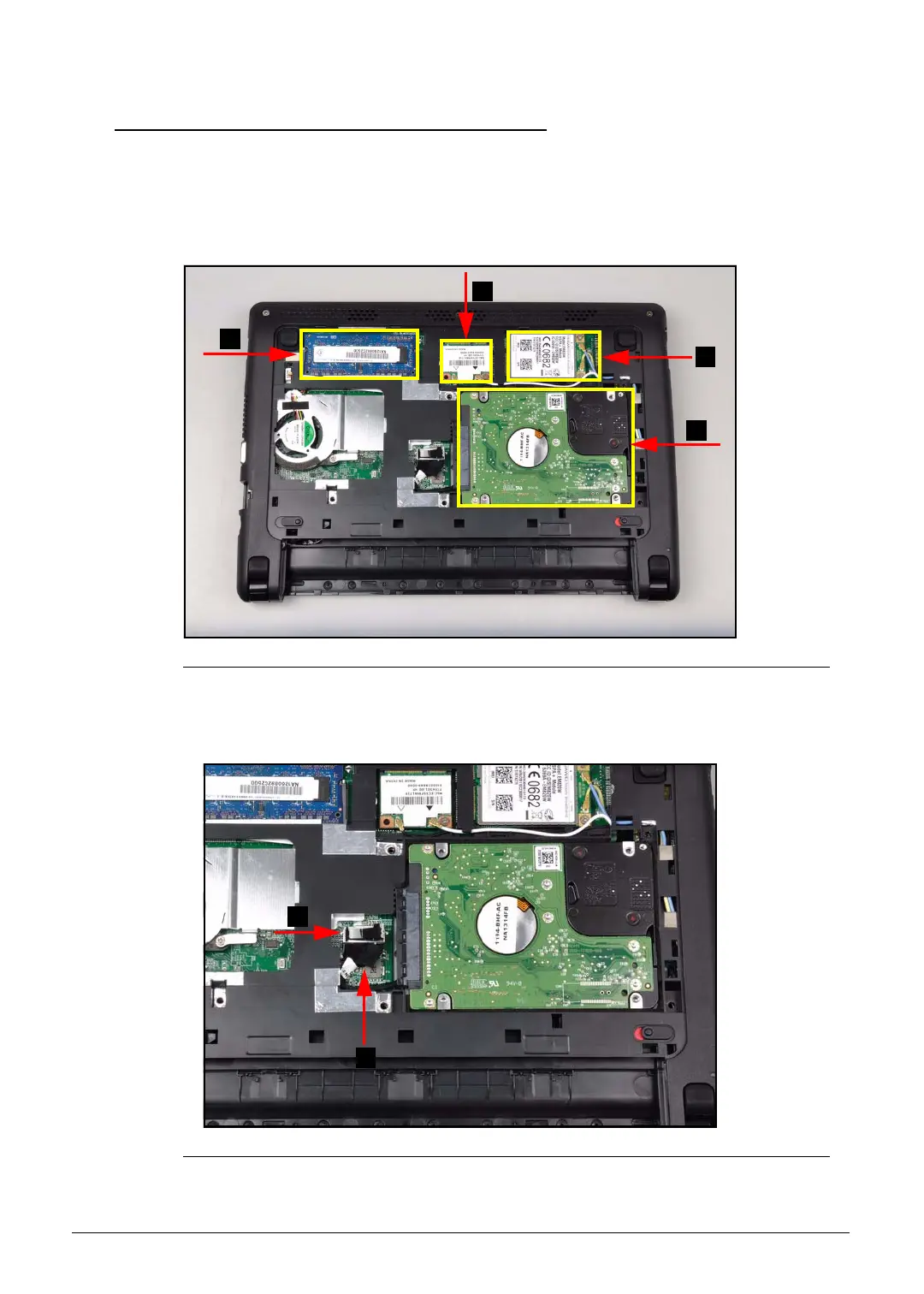

Figure 3-10. Component Location
2. Disconnect the hard drive cable (B) from the mainboard connector (C) (Figure 3-11).
Figure 3-11. Hard Drive Cable Removal
A
D
C
B
B
C
