Upper Case Removal 0
Prerequisite:
Base Cover Removal

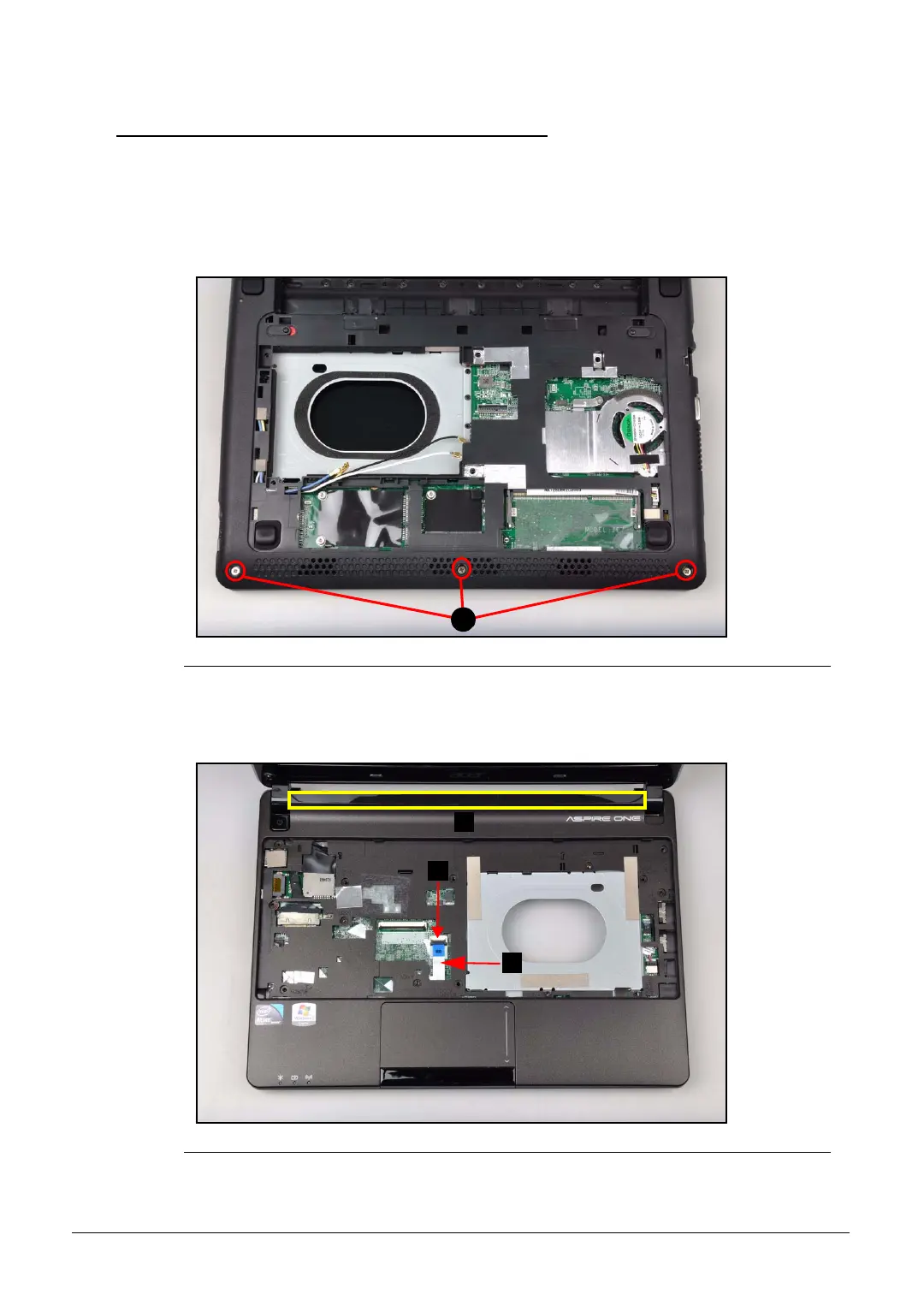

1. Remove three (3) screws (A) from the lower case (Figure 3-17).
Figure 3-17. Ouside Screws
2. Disconnect touchpad FPC (B) from mainboard connector (C) (Figure 3-18).
Figure 3-18. Upper Case Removal
A
C
B
D
