Acer Aspire One D270 Series - LCD (Liquid Crystal Display) Module Removal

3-28 Machine Maintenance Procedures
LCD (Liquid Crystal Display) Module Removal 0
Prerequisite:
Mainboard Removal
1. Remove the cables (A) from the cable guide. Refer to Figure 3-27.
2. Remove the two (2) screws (B) from the LCD hinges (Figure 3-27).

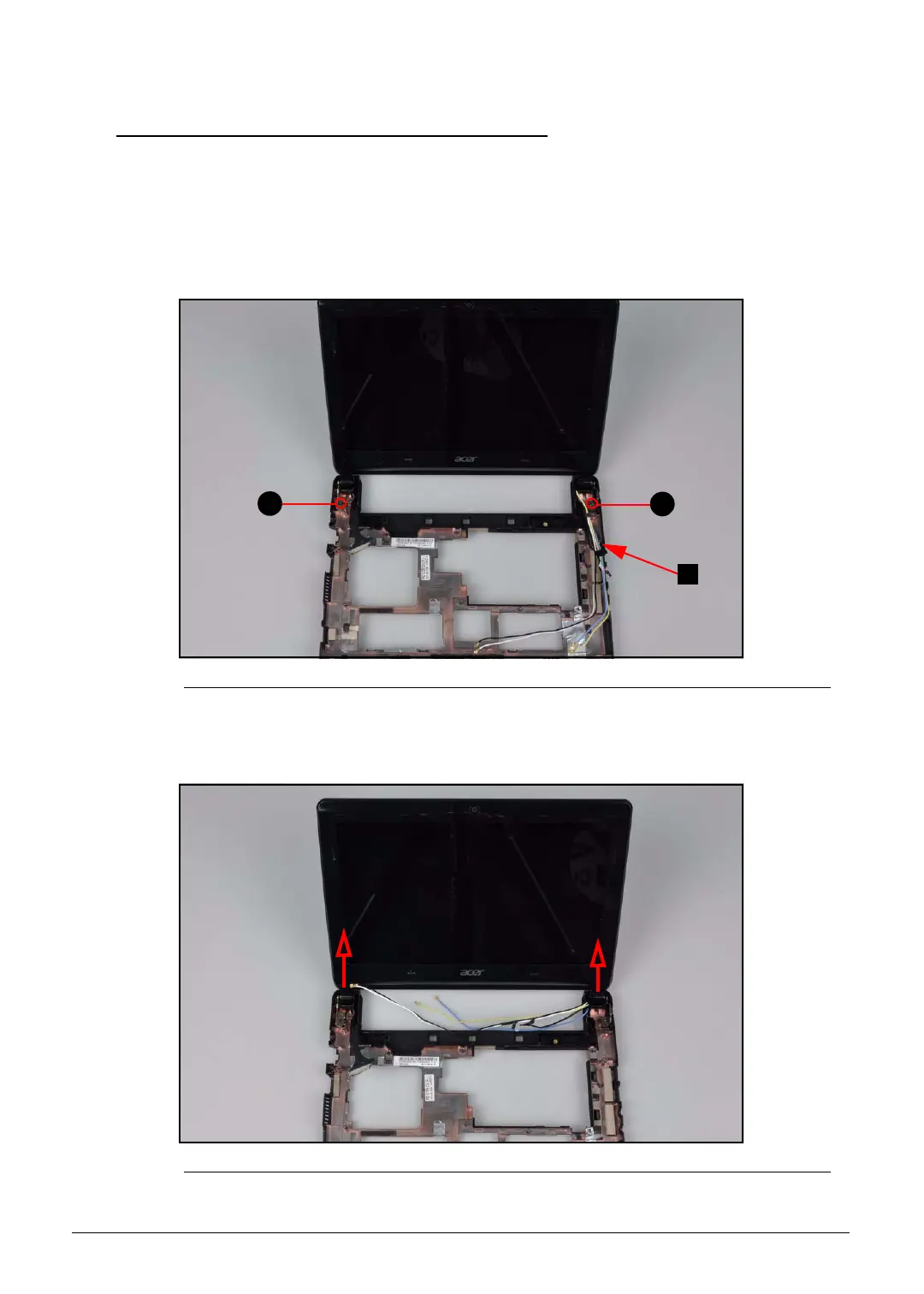

Figure 3-27. LCD Hinge Screws
3. Lift the LCD module upward from the lower base (Figure 3-28).
Figure 3-28. LCD Module Removal
B
B
A
B
B
A
