Machine Maintenance Procedures 3-7
Getting Started 0
Flowchart Figure 3-1 identifies sections for the removal and install sequence. Follow the
order of the sequence to avoid damage to any of the hardware components.
Do the following prior to starting any maintenance procedures:
1. Remove power (A) from the system and peripherals.
2. Remove all cables from system.

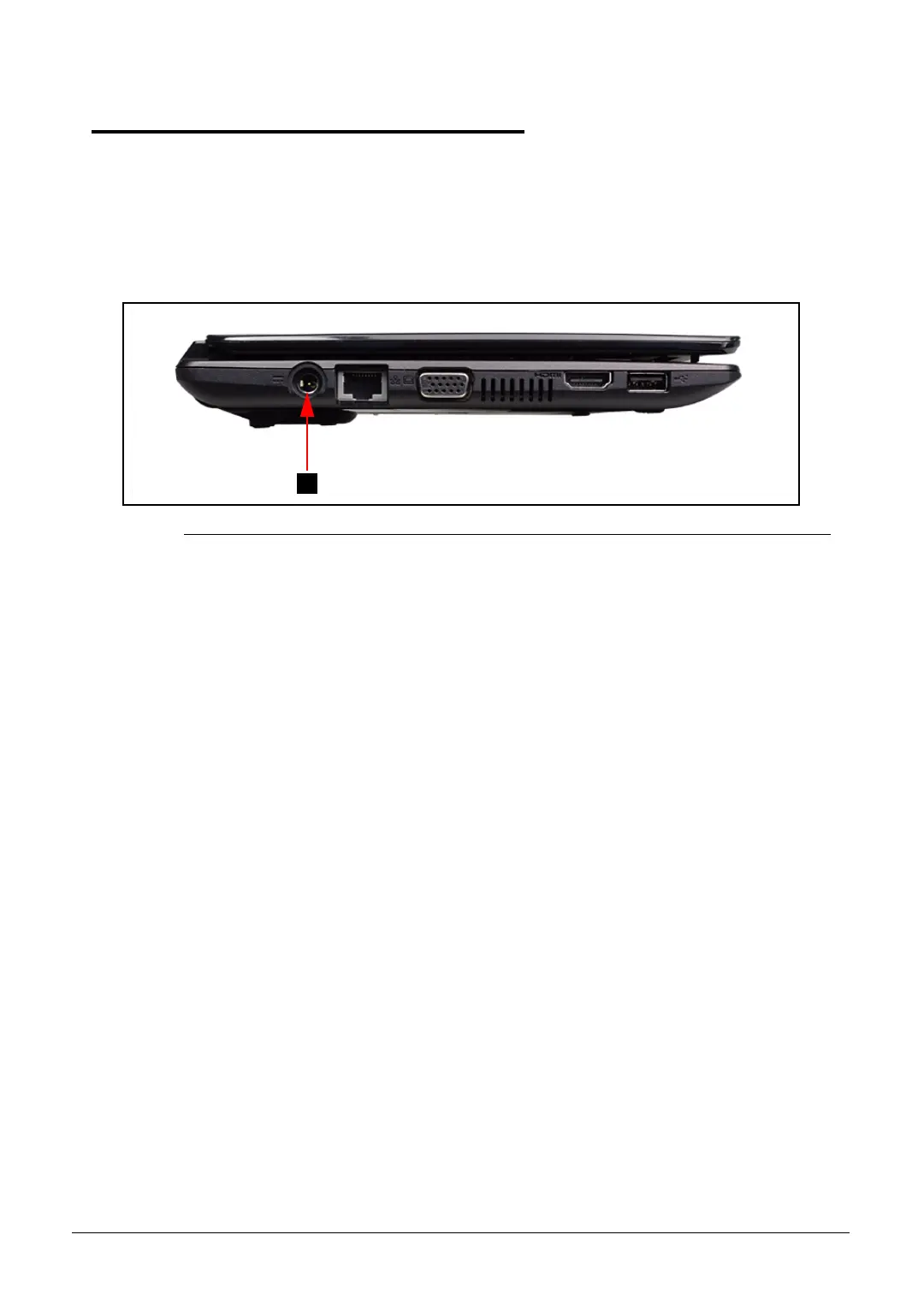

Figure 3-2. AC Adapter Outlet
3. Place system on a stable work surface.
