Machine Maintenance Procedures 3-37

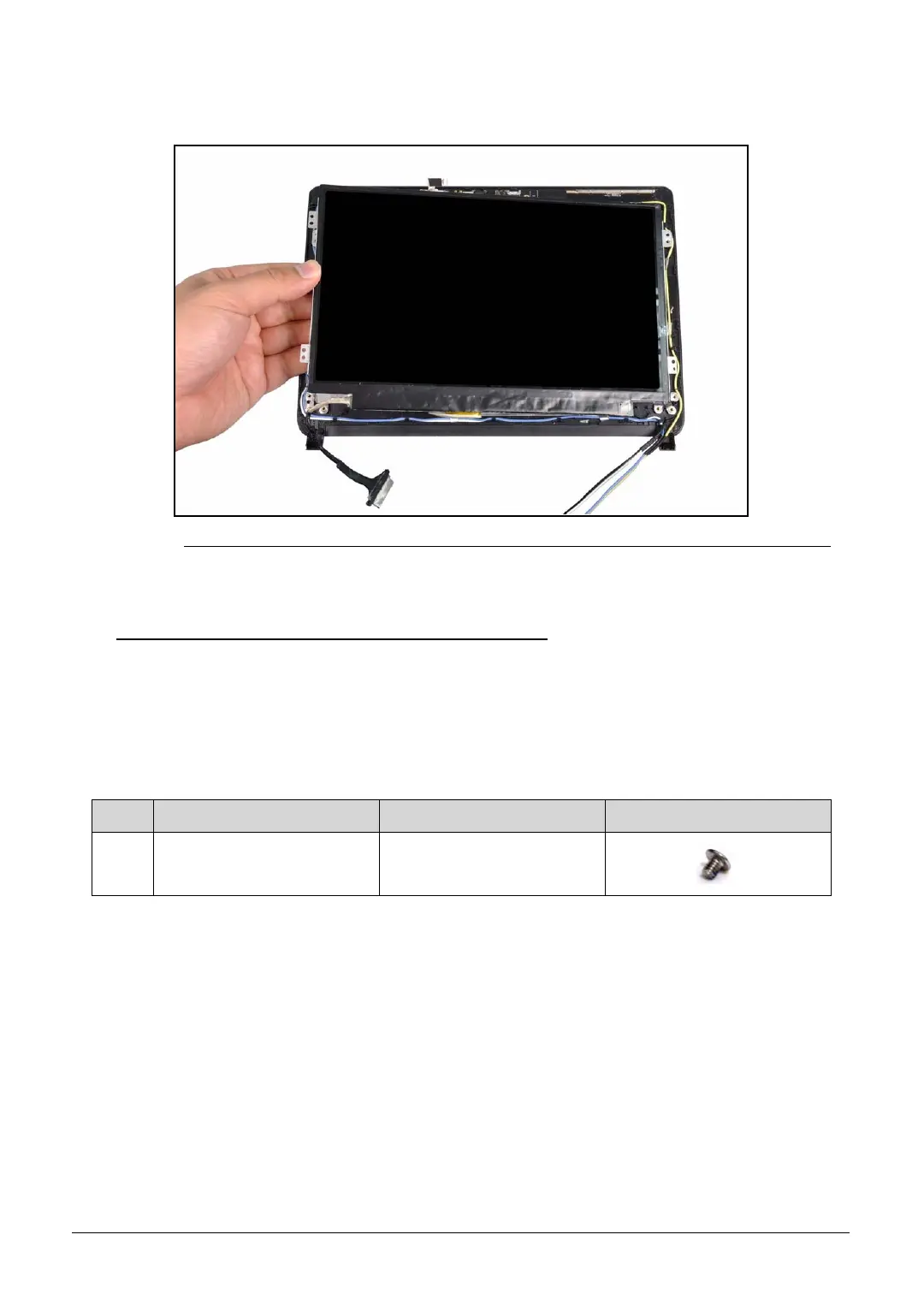

4. Remove the LCD panel from the LCD cover as shown in Figure 3-38.
.
Figure 3-38. LCD Panel
LCD Panel Installation 0
1. Place the LCD panel on the LCD cover. Refer to Figure 3-38.
2. Install and secure four (4) screws (D) to the LCD panel. Refer to Figure 3-37.
3. Connect the camera cable (A) to the camera connector (B). Refer to Figure 3-36.
4. Install the LCD hinge.
ID Size Quantity Screw Type
D M2.0*3.0 NI 4
