3-10 Machine Maintenance Procedures
Keyboard Removal 0
Prerequisite:
Battery Pack Removal

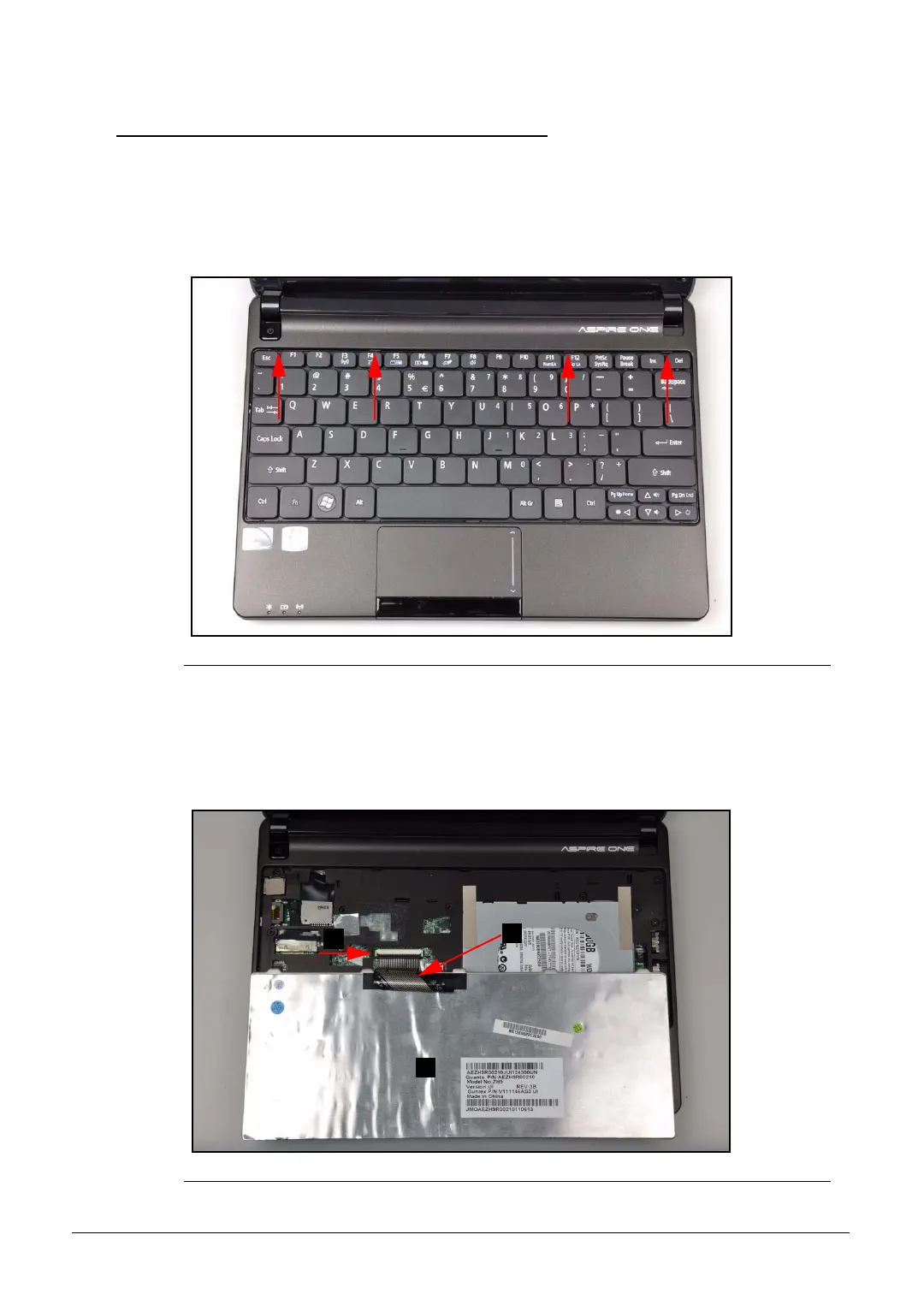

1. Release four (4) latches from the keyboard (Figure 3-5).
Figure 3-5. Keyboard Latches
2. Turn the keyboard over so that the keyboard (C) is face down on the upper case
(Figure 3-6).
3. Disconnect the keyboard FPC (A) from the mainboard connector (B) (Figure 3-6).
Figure 3-6. Keyboard FPC
