Acer Aspire One D270 Series - Thermal Module Removal

3-26 Machine Maintenance Procedures
Thermal Module Removal 0
Prerequisite:
Mainboard Removal
1. Disconnect the thermal fan cable (A) from the mainboard connector (B) (Figure 3-25).
2. Remove two (2) screws (C) from the thermal module in numerical order from one (1)
to two (2) (Figure 3-25).

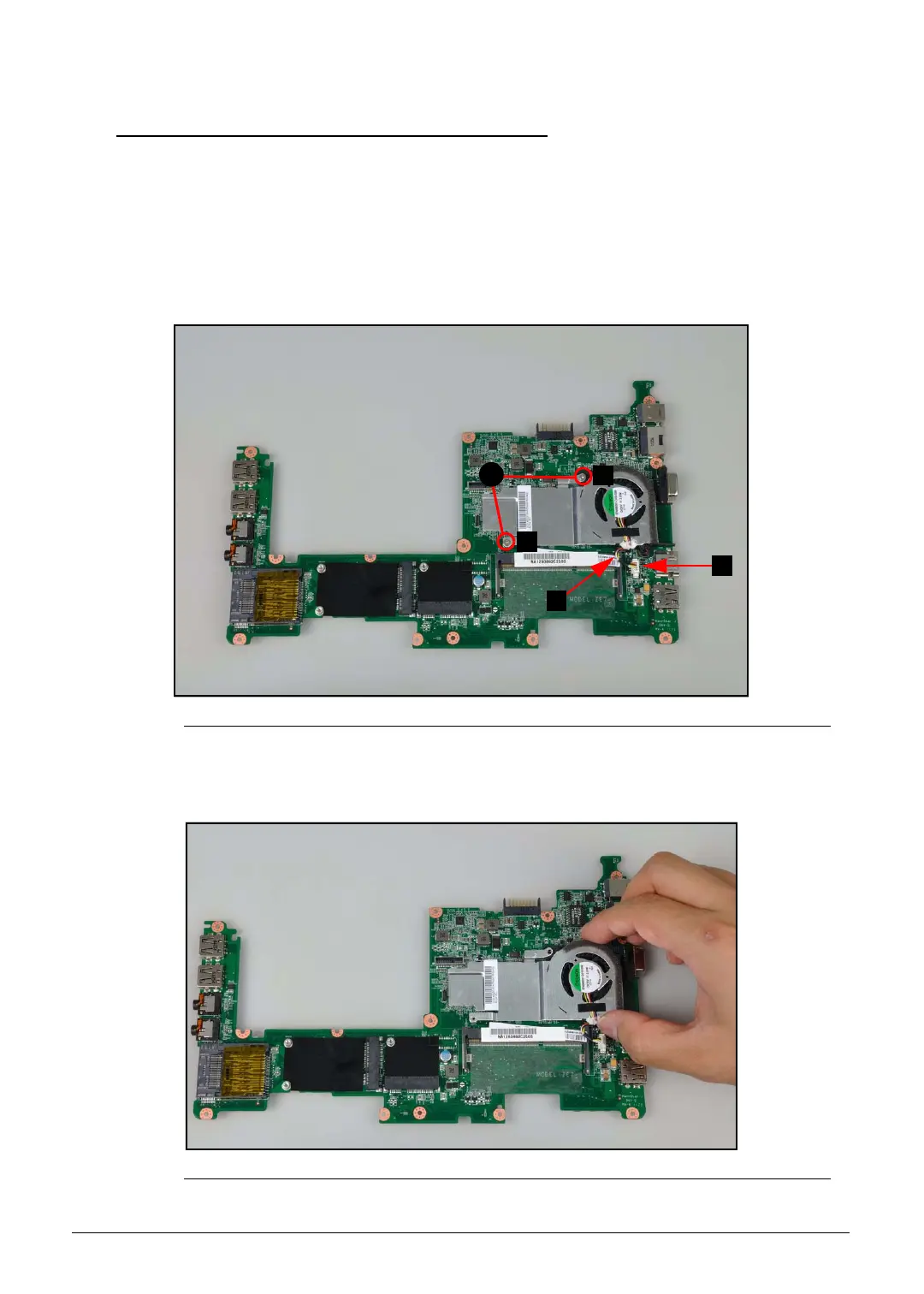

Figure 3-25. Thermal Module
3. Remove the thermal module from the mainboard as shown in Figure 3-26.
Figure 3-26. Thermal Module Removal
A
B
C
1
2
