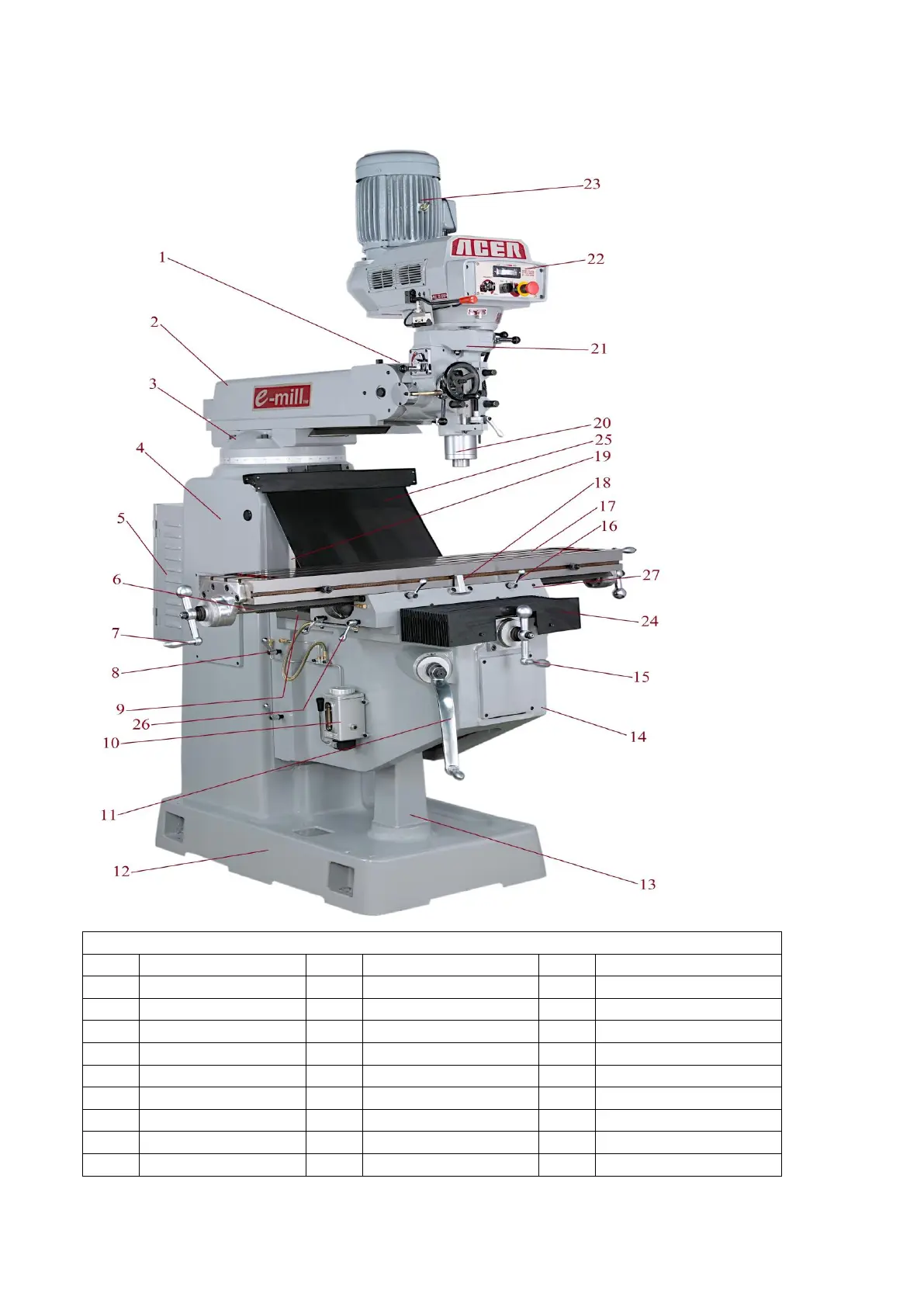

e-mill 3VKH (Note: e-mill 5VK has similar features except no ram adaptor!)
Features of 3VKH
Item#
Description
Item#
Description
Item#
Description
1
Ram Adaptor
10
One-shot Lube
19
Column Dovetail Way
2
Ram
11
Knee Crank Handle
20
Spindle
3
Turret
12
Dish-in Base
21
Head Housing
4
Column
13
Pedestal
22
Control Panel
5
Electric Cabinet
14
Knee
23
Spindle Motor
6
Table Dovetail Way
15
Saddle Crank Handle
24
Front Bellow Cover
7
Table Crank Handle
16
Table Lock
25
Back Roller Cover
8
Knee Lock
17
Table
26
Saddle Lock
9
Knee Dovetail Way
18
Table Stop Bracket
27
Saddle
