- 82 -

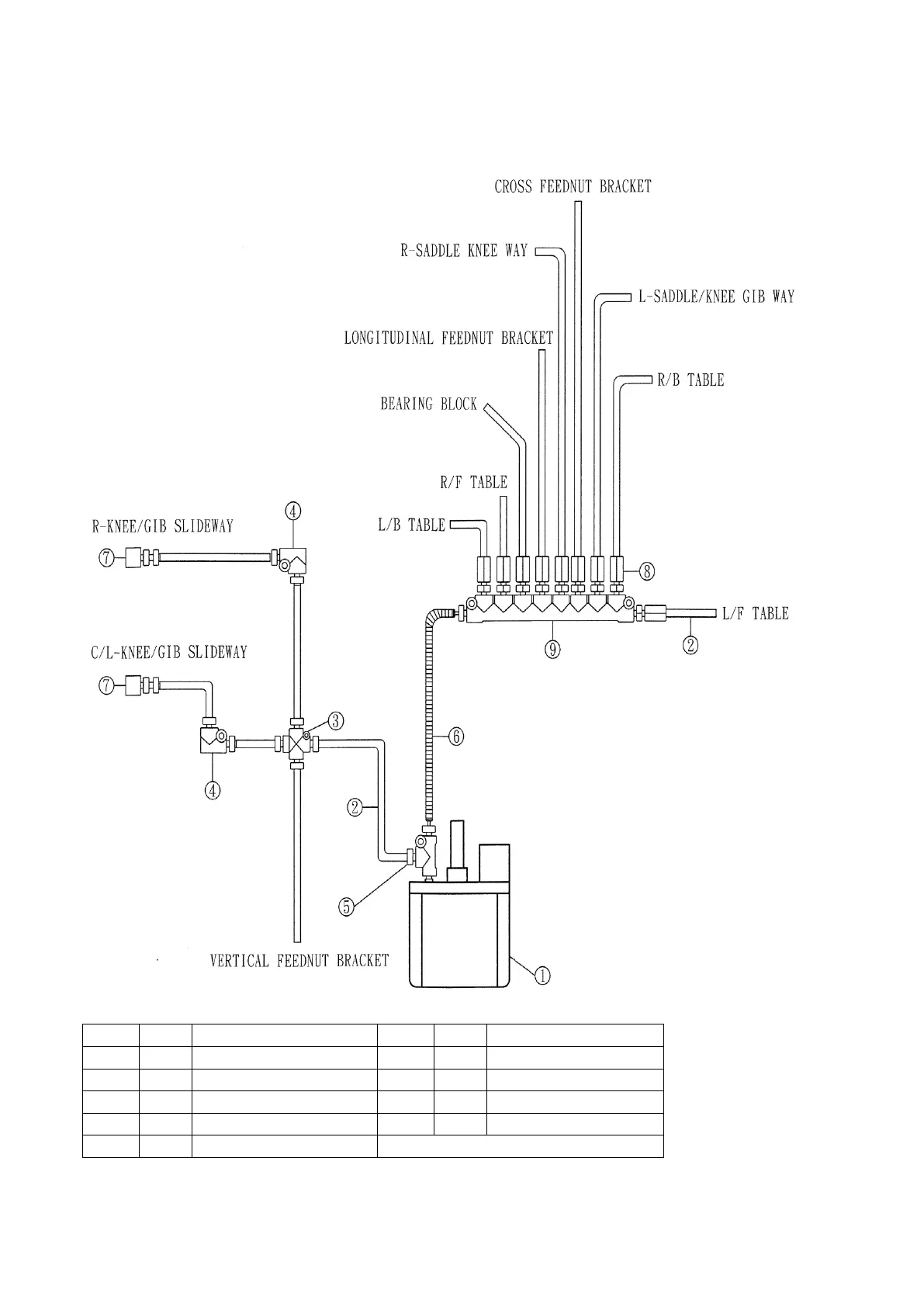

5-4 Lubrication System of e-mill 6VK
Item#
Part#
Description
Item#
Part#
Description
1
9054
Auto Lubrication Pump
2
9001
Aluminum Pipe (4mm)
3
9055
PJD4- Distributing Joint
4
9058
PT4 Distributing Joint
5
9056
SS5 Distributing Joint
6
9059
Flexible Oil Tube
7
9057
Oil Check Valve-PV4
8
9057
Oil Check Valve-PV4
9
9053
A10 Distributing Joint
