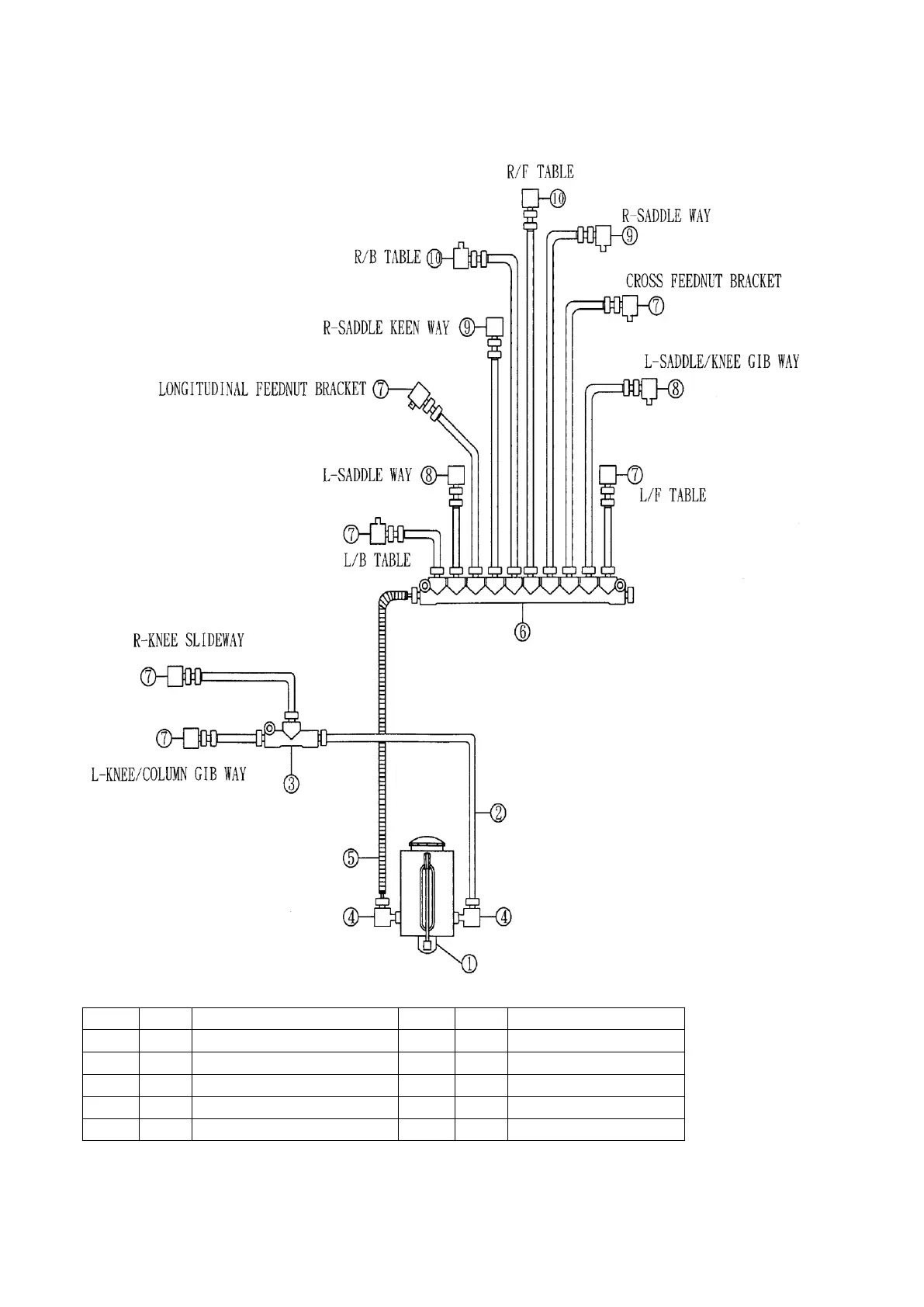

5-2 Lubrication System of e-mill 3VK
Item#
Part#
Description
Item#
Part#
Description
1
9001
Hand Oiler
2
9002
Aluminum Pipe (4mm)
3
9004
A4 Distributing Joint
4
9022
Elbow Joint
5
9060
Flexible Oil Tube (500mm)
6
9009
A12 Distributing Joint
7
9005
Oil Check Valve-ST1
8
9008
Oil Check Valve-ST2
9
9007
Oil Check Valve-ST4
10
9010
Oil Check Valve-ST5
