- 35 -
4-1 Lifting Machine
The column and base are a one-piece casting. Machine should be lifted by placing
a sling under the ram. (Sling is made from polyester webbing and flat nylon, 2”
wide, 1/5” thickness, 8 meters length and rated breaking strength at 4,400lbs or
2,000kgs.)
Note: Position of ram and table when lifting with a sling.
e-mill 3VS, 3VSII & e-mill 6VK

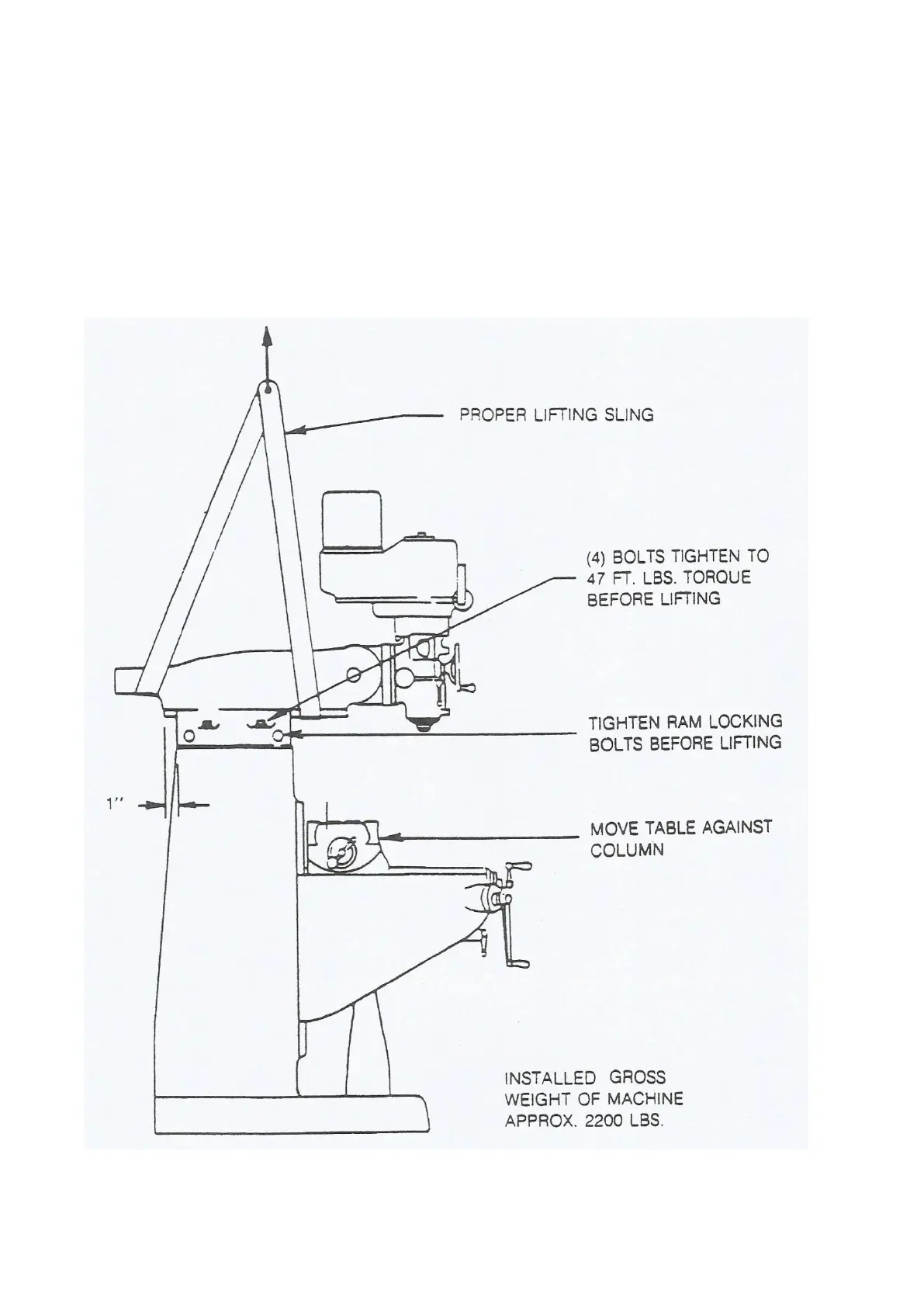

Figure 6. Lifting method of e-mill 3VS & e-mill 6VK
