5. LUBRICATION
Do not operate machine until properly lubricated:
(A)Way surfaces and lead screws (Sunoco waylube #80 or equivalent); one
pump daily.
(B)Milling head and spindle bearings (S.A.E. 10 or 10W light oil); weekly.
(C)Elevation screw (Shell Carnea Oil 41); twice weekly.
(D)Motors are greased for life of bearings.

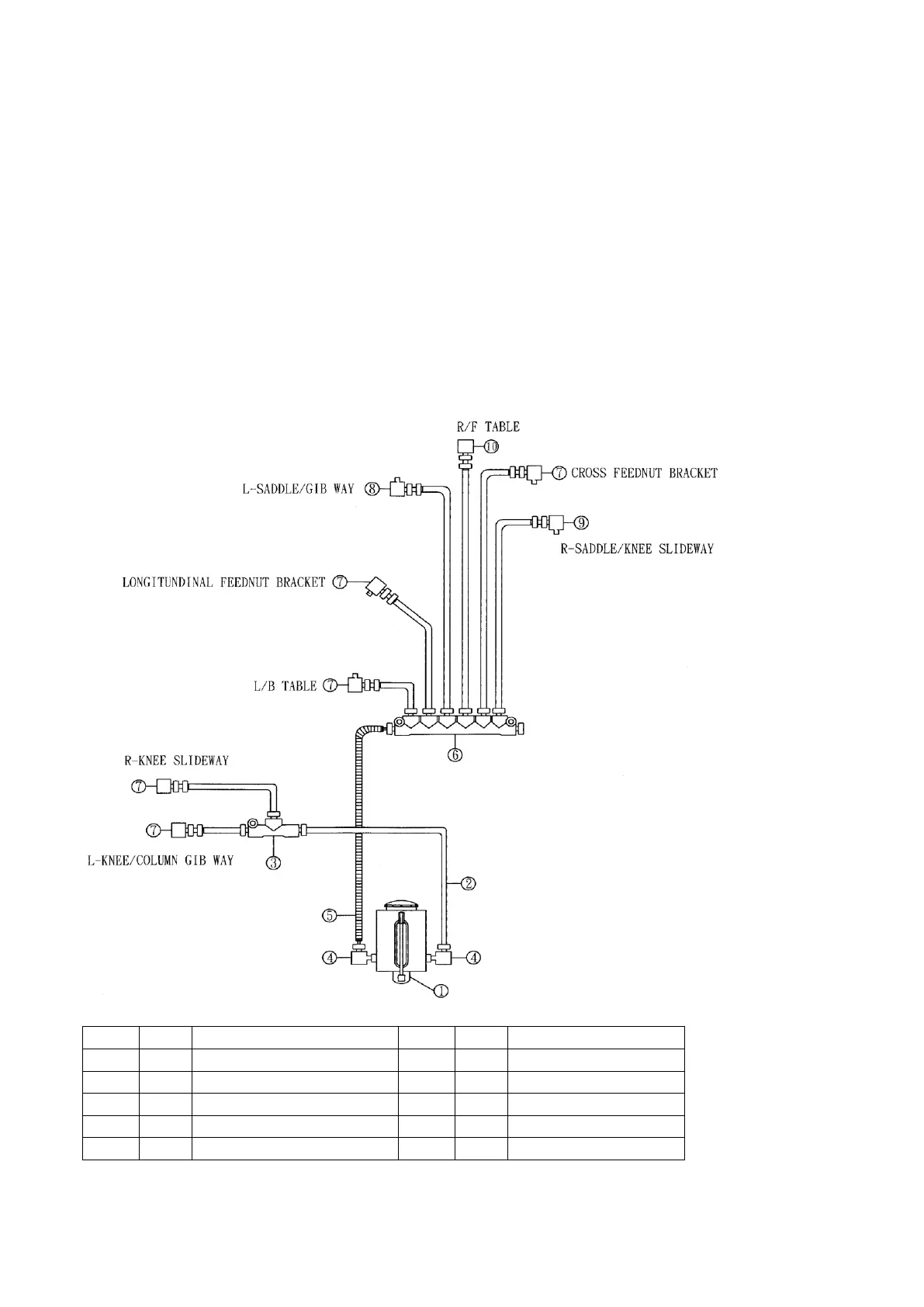

5-1 Lubrication System of e-mill 3VS and 3VSII
Item#
Part#
Description
Item#
Part#
Description
1
9001
Hand Oiler
2
9002
Aluminum Pipe (4mm)
3
9004
A4 Distributing Joint
4
9022
Elbow Joint
5
9006
Flexible Oil Tube (410mm)
6
9024
A8 Distributing Joint
7
9005
Oil Check Valve-ST1
8
9008
Oil Check Valve-ST2
9
9007
Oil Check Valve-ST4
10
9010
Oil Check Valve-ST5
