Acer e-mill 3VS - Page 63

- 62 -

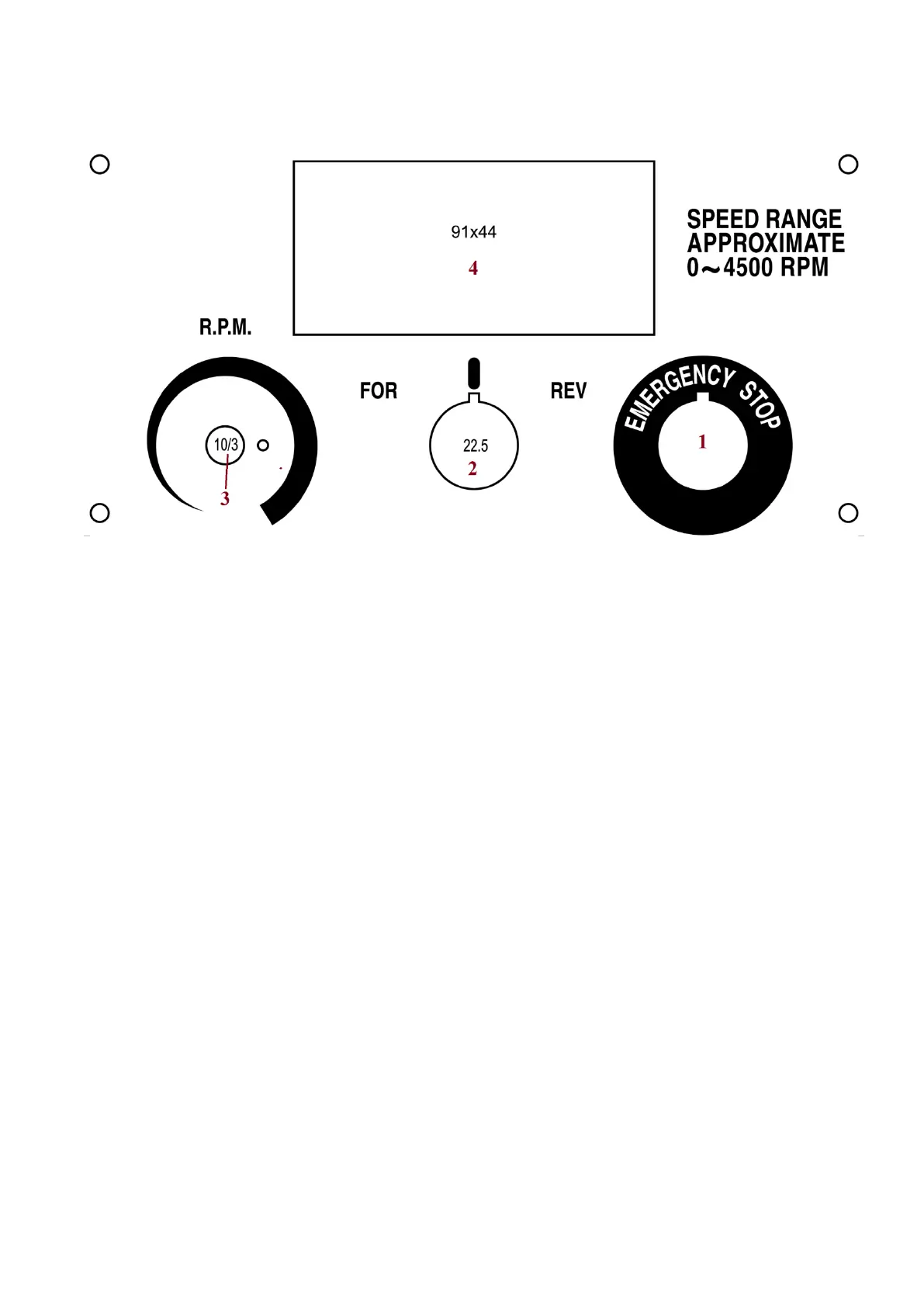

Control Panel
Item# Part# Description QTY
1 9500 Emergency Switch 1
2 9501 F/R Switch 1
3 9502 Variable Resistor 1
4 9503-2 Digital Counter 1
Input power at 230V/3P/60HZ, the power disconnect breaker is at 25A, wiring must
be 3.5mm
2
or greater.
Input power at 460V/3P/60HZ, the power disconnect breaker is at 20A, wiring must
be 3.5mm
2
or greater.
