- 67 -
Operation Panel

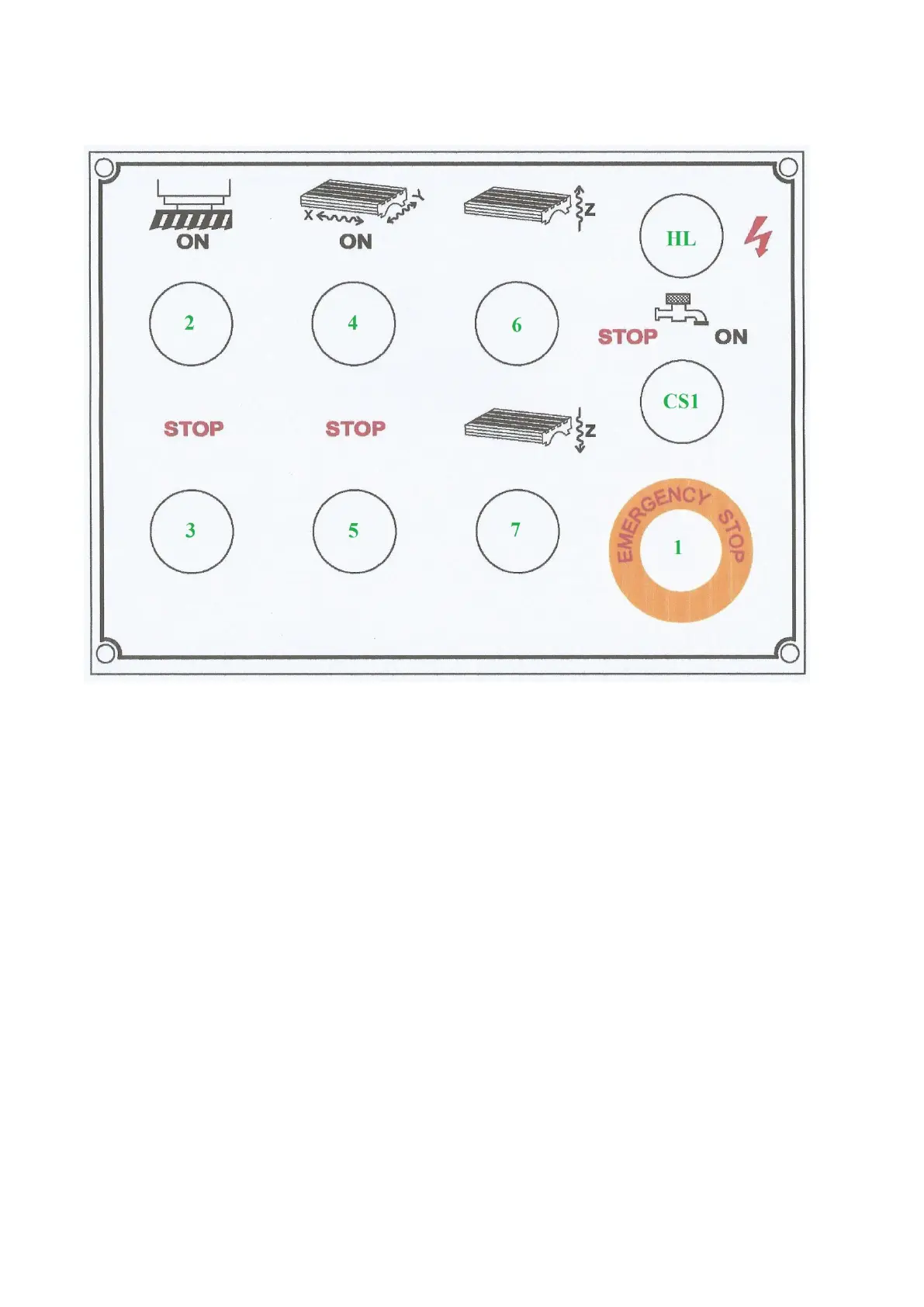

Description of Operation Panel
1. Emergency Stop Switch
2. Spindle Start Switch
3. Spindle Stop Switch
4. X-Y Axis Start Switch
5. X-Y Axis Stop Switch
6. Up Start Button
7. Down Start Button
HL. Indicator Light Power
CS1. Coolant Switch On/Off
Input power at 230V/3P/60HZ, the power disconnect breaker is at 25A, wiring must
be 3.5mm
2
or greater.
Input power at 460V/3P/60HZ, the power disconnect breaker is at 20A, wiring must
be 3.5mm
2
or greater
