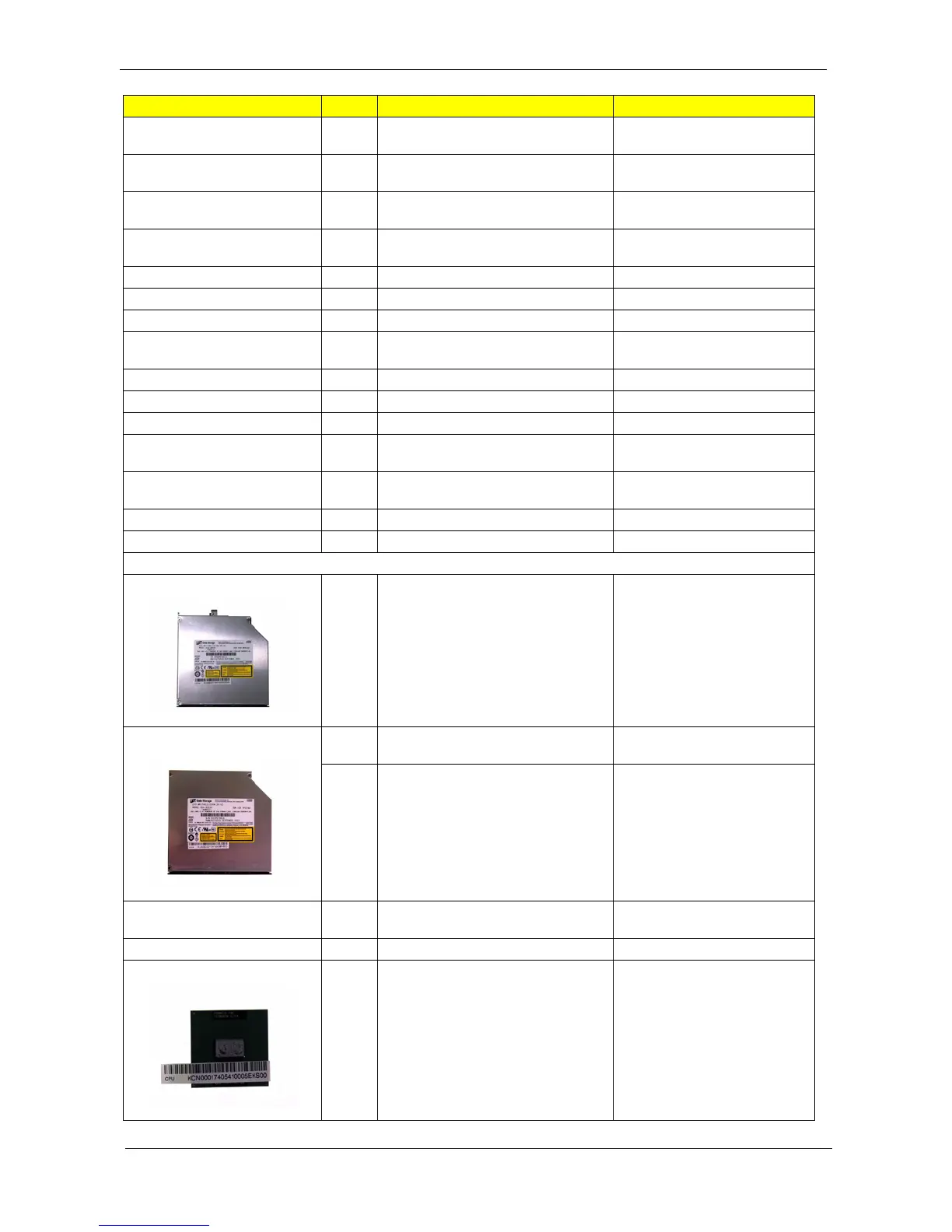

Acer Extensa 5220 Series Service Guide

130 Chapter 6
LOWER CASE W/SPEAKER ASSY L-
CASE COLUMBIA
60.TKA01.001
UNITLOAD COVER W/DASP ASSY
BIG DOOR HDD DASP COLUMBIA
60.TK901.007
UPPER CASE W/ COVER SWITCH
CABLE
60.TKC01.002
UNIT LOAD COVER L-CASE DOOR
ASSEMBLY
60.TK901.003
OPTICAL BRACKET 33.TK901.002
COMBO BEZEL 42.TK901.002
DVD-RW BEZEL 42.TK501.002
HDD HOLDER DASP PROTECTION
BIWA
42.TK501.004
HDD BRACKET ASSEMBLY 33.TK901.003
LCD BRACKET RIGHT 33.TK901.004
LCD BRACKET LEFT 33.TK901.005
LCD COVER 15.4” W/ HINGE &
LOGO (MG-AL PANEL) COLUMBIA
60.TK901.006
LCD BEZEL 15.4” W/ LOGO FOR
CCD
60.TK901.005
HINGE PACK LEFT/RIGHT 6K.TK901.001
SPEAKER 23.TK901.002
Combo Module
COMBO MODULE 24X 6M.TK901.001
COMBO MODULE 24X SONY
CRX880A LF W/O BEZEL
KO.0240E.005
COMBO MODULE 24X PANASONIC
UJDA-780 LF W/O BEZEL
KO.02407.028
COMBO MODULE 24X HLDS GCC-T
10N W/O BEZEL DALLEN
KO.0240D.005
CPU/Processor
CPU INTEL MEROM CORE2DUAL
T7100 1.8G 2M 800
KC.71001.DTP
Category No. Part Name and Description Acer Part No.

Acer Extensa 5220 Series Specifications

General

Display	15.4" WXGA (1280 x 800) TFT LCD
Optical Drive	DVD-Super Multi double-layer drive
Operating System	Windows Vista Home Basic
Processor	Intel Celeron M 530
RAM	512 MB DDR2
Storage	80 GB HDD
Graphics	Intel Graphics Media Accelerator (GMA) X3100
Battery	6-cell Li-ion
Weight	2.8 kg
Wireless	802.11b/g
LAN	10/100 Mbps Ethernet
Ports	3x USB 2.0, VGA, headphone/speaker/line-out jack, microphone-in jack
