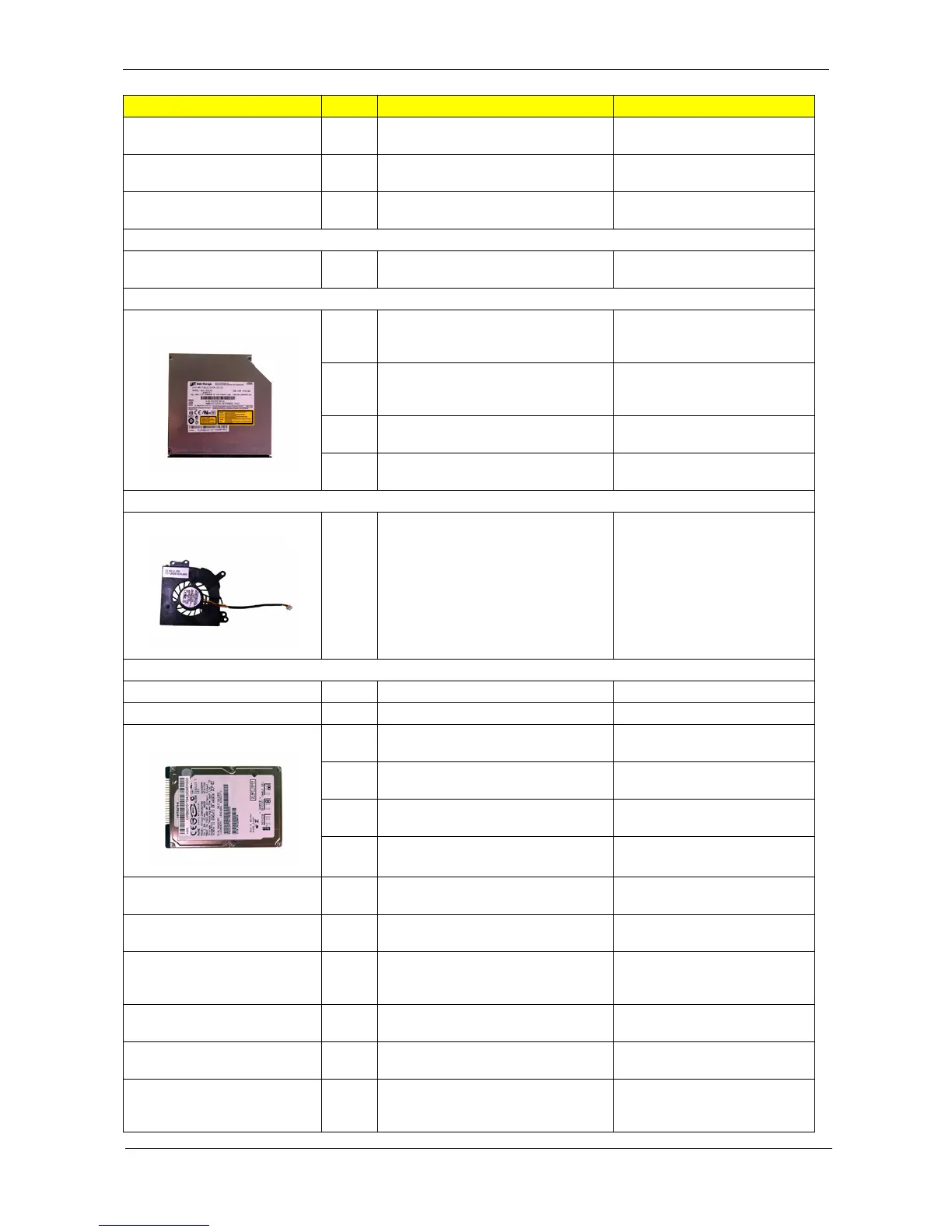

Acer Extensa 5220 Series Service Guide

Chapter 6 131
CPU INTEL MEROM CORE2DUAL
T7300 2.0G 4M 800L
KC.73001.DTP
CPU INTEL MEROM CORE2DUAL
T7500 2.2G 4M 800
KC.75001.DTP
CPU INTEL MEROM CORE2DUAL
T7700 2.4G 4M 800L
KC.77001.DTP
DVD-RW Drive
ASSEMBLY SUPLER MULTI
MODULE 8X
6M.TK901.002
DVD Module
DVD-RW DRIVE 8X S-MUTI
PIONEERDVR-K17RS LF W/O
BEZEL
KU.00805.038
DVD-RW DRIVE 8X S-MULTI
PANASONIC UJ-850UAA1-A LF W/O
BEZEL
KU.00807.055
DVD-RW DRIVE 8X S-MULTI
PHILIPS DS-8A1P LF W/O BEZEL
KU.00809.010
DVD-RW DRIVE 8X S-MULTI HLDS
GSA-T20N LF W/O BEZEL
KU.0080D.027
Fan
15” FAN FORCECON 23.TK901.001
Heatsink
CPU HEATSINK W/SCREW W/O FAN 60.TKA01.002
HDD/Hard Disk Drive
HDD 80GB 5400RPM SATA
SEAGATE ST980811AS VENUS LF
KH.08001.030
HDD 80GB 5400RPM SATA HGST
HTS541680J9SA00 SURUGA-B LF
KH.08007.021
HDD 80GB 5400RPM SATA WD
WD800BEVS-22RST0ML80 LF
KH.08008.033
HDD 80GB 5400RPM SATA TOSHIBA
MK8037GSX GEMINI BS LF
KH.08004.010
HDD 120GB 5400RPM SATA
SEAGATE ST9120822AS VENUS LF
KH.12001.031
HDD 120GB 5400RPM SATA HGST
HTS541612J9SA00 SURUGA-B LF
KH.12007.010
HDD 120GB 5400RPM SATA
TOSHIBA MK1237GSX GEMINI BS
LF
KH.12004.006
HDD 120GB 5400RPM SATA WD
WD1200BEVS-22RST0 ML80 LF
KH.12008.018
HDD 160GB 5400RPM SATA
SEAGATE ST9160821AS VENUS LF
KH.16001.026
HDD160GB 5400RPM SATA
TOSHIBA MK1637GSX GEMINI BS
LF
KH.16004.001
Category No. Part Name and Description Acer Part No.

Acer Extensa 5220 Series Specifications

General

Display	15.4" WXGA (1280 x 800) TFT LCD
Optical Drive	DVD-Super Multi double-layer drive
Operating System	Windows Vista Home Basic
Processor	Intel Celeron M 530
RAM	512 MB DDR2
Storage	80 GB HDD
Graphics	Intel Graphics Media Accelerator (GMA) X3100
Battery	6-cell Li-ion
Weight	2.8 kg
Wireless	802.11b/g
LAN	10/100 Mbps Ethernet
Ports	3x USB 2.0, VGA, headphone/speaker/line-out jack, microphone-in jack
